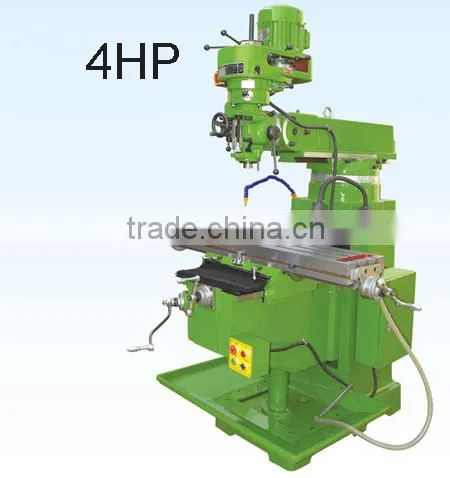

Small Turret Milling Machine 4HP
- 20 Set / Sets per Month
- QINGDAO/SHANGHAI/DA LIAN
- T/T
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | HELI |
Model Number: | 4HP | Type: | Vertical | CNC or Not: | Normal |
Voltage: | 380V | Power(W): | 3KW(two speed) | Dimension(L*W*H): | 1700X1520X2000mm |
Weight: | 1200KG | Certification: | ISO 9001 | Warranty: | 12 months |
After-sales Service Provided: | No overseas service provided |
Product Description
Specifications
1.stable structure and high rigidity2.small machine frame and best reinforce cast frame
3.economic price and high precision
This machine is widely used for flat maching along with any tilt angle surface,it can work for milling slot,drilling,fraising,boring.The milling head can turn right and light ±90°,it can rotate with high speed and with wide speed range,it can carry out power feed with overload safe protective device.The spindle quill and machine guideway past special treatment,it has perfect appearance and excellent design structure,it is one ideal metal cutting machine.It can also install power feed and DRO depending on customer requirements.
Main specification | UNIT | 4HP |
Table size | mm | 1270 x 254 |
Table travel | mm | 750 x 400 |
Vertical travel of table | mm | 400 |
Max. arm travel | mm | 450 |
Spindle sleeve travel | mm | 127 |
Spindle motor power | kw | 3 |
Spindle taper | R8(NT30) | |
Spindle sleeve dia. | mm | 87.525 |
Distance between spindle nose and table surface | mm | 0-460 |
Distance between spindle axis and column guideway surface | mm | 80-540 |
Angle of spindle tilt | ° | ±90° |
Spindle speed range | rpm | 16steps 66-4540 |
Coolant pump motor power | w | 40 |
Max. table loading | kg | 300 |
Overall dimension | mm | 1700 x 1520 x 2000 |
N.W/G.W | kg | 1200/1250 |
