Specifications

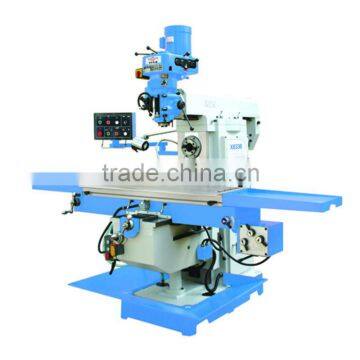

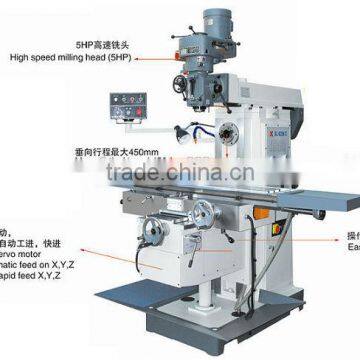

The machine is used for cutting metals and nometals. It's suitable to drill, mill, bore and so onThe X6336 Turret Milling machine is used for cutting metals,it's an universal milling machine.Cylinder mill,round piece mill,shape mill and end mill can be installed on the conical hole of main pivot of the machine,which is suitable for processing plane surface,oblique plane,groove,hole,gear of all kinds of small,medium parts.User can select universal dividing head(a special auxiliary)to process groove of thread.The machine is an ideal processing equipment for machine manufacturing,mold,instrument,automobile motorcyole and other trades
SPECIFICATION |
UNIT |
X6336 |
Spindle taper |
|
7:24 ISO 50(Horizontal) |
Distance between horizontal spindle center and plane of suspension girder |
mm |
230 |
Distance between spindle nose and worktable |
mm |
|
Range of spindle speed |
r.p.m |
(12steps) 60-1800(Horizontal) (16 steps)66-4540(Vertical) |
Table size |
mm |
1250 x 360 |
Table travel(horizontal/cross/vertical) |
mm |
1000/315/400 |
Speed of longitudinal,cross travel |
mm/min |
(8 steps)15-370(fast feed 50) |
Speed of worktable vertical feed |
mm/min |
590 |
T-slot No./Width/Distance of rotary table |
mm |
3 /18/ 80 |
Suspension girder travel |
mm |
500 |
Main motor power |
kw |
3.7(Vertical)/4(Horizontal) |
Motor power for worktable feed |
w |
750 |
Motor power for up&down table |
w |
1100 |
Motor of coolant pumps |
w |
90 |
Flow of coolant pumps |
L/min |
25 |
Overall Dimension |
mm |
2220 x 1790 x 2360 |
N.W/G.W |
kg |
2340/2500 |
