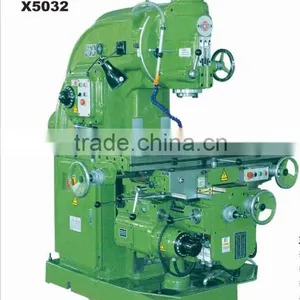

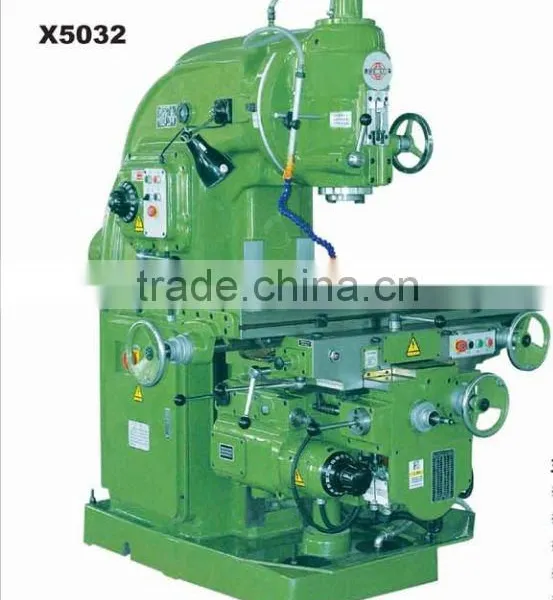

Help CenterVertical Milling Machine X5032
Related Products
Specifications
The Vertical Knee-type milling machine is widely used in the machining workshop, with optional accessories as dividing head, rotThe Vertical Knee-type milling machine is widely used in the machining workshop, with optional accessories as dividing head, rotary table, machine vice, milling chuck, Digital readout (2 dimensional or 3 dimensional).
SPECIFICATION |
UNIT |
X5032 |
Table size |
mm |
320 x 1325 |
T-slot(No./width/distance) |
mm |
3/18/70 |
Max. longitudinal travel(manual/automatic) |
mm |
700/680 |
Max. cross travel(manual/automatic) |
mm |
255/240 |
Max. vertical travel(manual/automatic) |
mm |
350/330 |
Rapid speed of worktable(X,Y,Z) |
mm/min |
2300/1540/770 |
Swivel angle of vertical milling head |
° |
±45 |
Spindle travel |
mm |
70 |
Distance between spindle centerline and plane of column guideway |
mm |
350 |
Spindle bore |
mm |
29 |
Spindle taper |
-- |
7:24 ISO 50 |
Distance between spindle nose and plane of worktable |
mm |
60/410 |
Spindle speed step |
-- |
18 steps |
Range of spindle speed |
r.p.m |
30~1500 |
Feed range of worktable |
-- |
18 steps |
Main motor power |
kw |
7.5 |
Feed motor power |
kw |
2.2 |
Overall size |
mm |
2294 x1770 x 1904 |
N.W/G.W |
kg |
2900/3200 |
