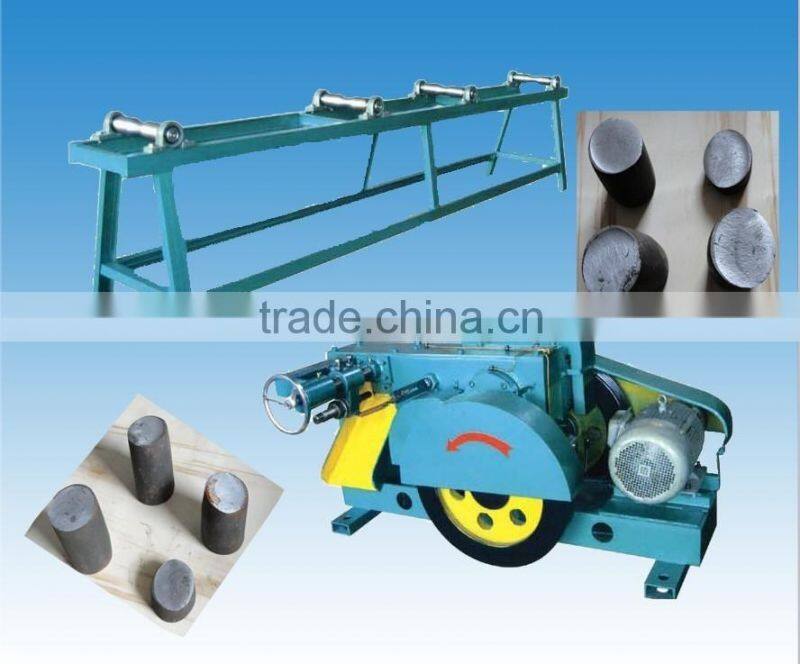

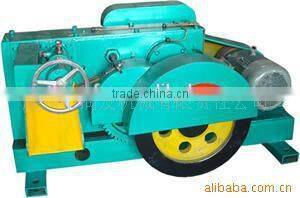

Help CenterRound Bar Cutting Machine YQ70
Related Products
Specifications
This model is a widely used,simple structure,easy to round off machineUses and Features:
This model is a widely used,simple structure,easy to round off machine;
the model of the body is welded with steel plate,making the model more robust.
How it works:
the use of three-phase induction motor drives the eccentric shaft rotation,
led by the eccentric rotation axis connecting rod,connecting rod to drive even the seat,
even the seat edge will be driven by dynamic simulation ;scheduled to die by the knife-edge tighten the bolts in the body;stick frame by feeding material into the discharge port,
due to the dynamic simulation of transverse shear blade has been cut.in addition,
the model also has a thimble body,which can precisely control the length of material cut.
Cut the bar with the model can reduce processing costs,improve efficiency,
high precision machining.
YQ Series Shearing Machine Main Technical Data
SPECIFICATION |
UNIT |
YQ70 |
|
Max.shear force |
KN |
210 |
|
Max.cut diameter shear |
mm |
20-70 |
|
Shearing speed |
M/min |
25 |
|
travel |
S/min |
80 |
|
Gauge range |
mm |
52-250 |
|
Section tilt |
|
≤4 |
|
Cross-section roundness |
|
0.92 |
|
Cross-section roundness |
g |
±12 |
|
Main motor |
model |
|
Y180L-6 |
power |
KW |
15 |
|
|
Feeder
|
model |
|
90L-4 |
power |
KW |
1.5 |
|
Overall dimension |
mm |
5100*1000*990 |
|
|
Reducer
|
model |
|
WPDA100 |
ratio |
|
1:15 |
|
Manual feeding rack dimensions |
mm |
4600*1000*840 |
|
Host dimension |
mm |
2270*1500*1420 |
|
Total weight |
T |
4 |
|
Advantages:
1 ,More than fifty years experience of industry products;
2,High reputation around the world;
3, Professional service and technology support;
4,Competitive price with better quality, even the best;
Services:
1, Your inquiry will be replied in 24 hours;
2,Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 5 years.
And there is more industry technology experience for more than 46 years with our manufactures;
3, To offer free spare parts and service within one year of warranty;
4, Professional after-sales service team;
5,Give reasonable offers with the best quality.
