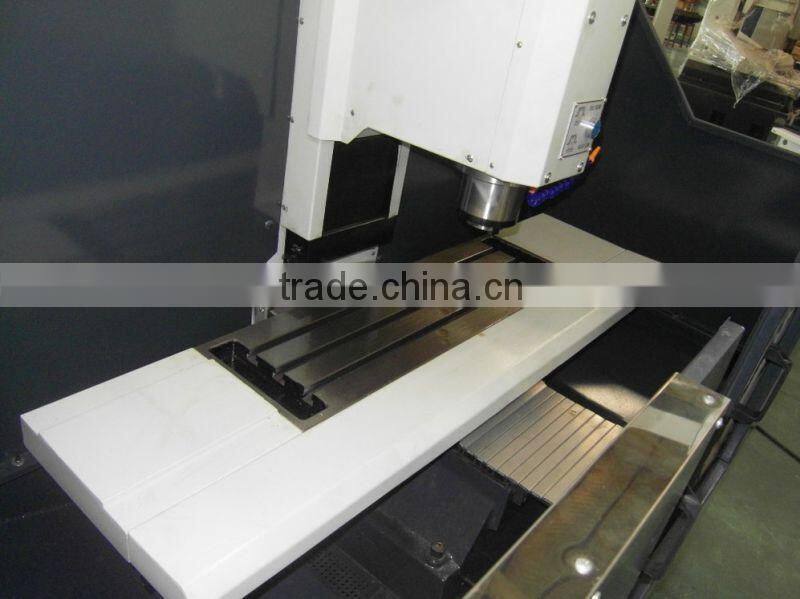

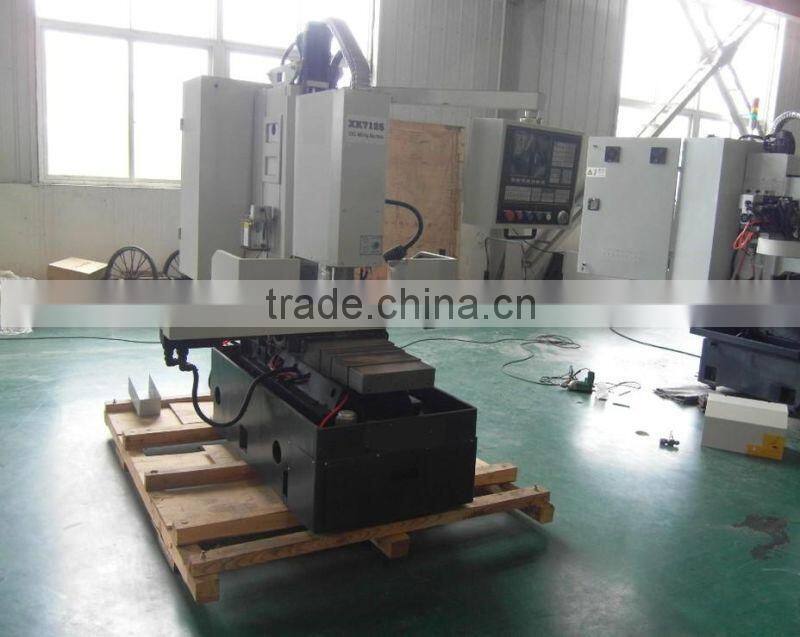

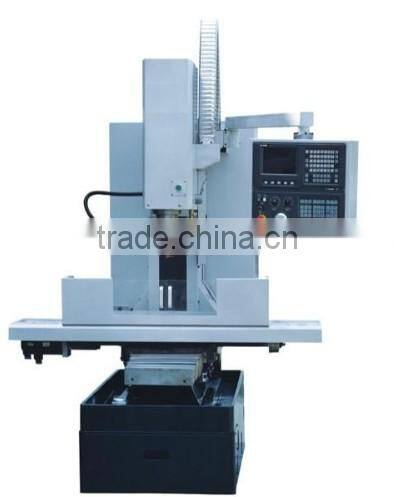

Help CenterCNC Milling Machine XK7125
Related Products
-
Brief introduction & application
The feed shaft is controlled by X, Y and Z three dimensions, and spindle is driven by frequency power, which could realize one-time clamping upon various plates, boards, shells, cam, molds and etc. complex components, it can also complete drilling, milling, boring, expanding, reaming, tapping and etc. multiple processing; this machine is applied to produce middle & small batch of various components, especially for machining of complex and high-precision components.
2. Characteristics of Structure.
1) Base, slide, worktable, column, spindle box and etc. major infrastructure articles all adopt hi-rigid cast iron structure, which could ensure high rigidity, anti-bending and shock-absorbing performance; infrastructure articles adopts resin sand and experience aging treatment to make sure accuracy & stability during long-term operation, which provides guarantee for reliable environment.
2) X, Y and Z guideways are made of hard rails without frictional resistance during non-feed motion or low-speed crawling phenomena, all of which are in favor of maintaining machine accuracy;
3) Feeding of X, Y and Z adopts famous ball screws of high-precision & high-rigid, which has high feeding speed and high positioning accuracy.
4) Guideways & ball screws of X, Y, Z all adopt closed shield; maintain clean ball screw & guideways, and make sure the accuracy of machine transmission and motion.
5) The machine tool adopts fully-closed structural design, much safe and reliable; user could choose semi-closed protective structure.
6) Machine operation system adopts human engineering principle design, much easier to operate.
7) The machine tool adopts advanced centralized automation lubrication devices, much more stable & reliable.
8) Machine tool is equipped with domestic & overseas famous CNC brand system; users could choose well-known CNC control system with complete functions and easy operation, more stable & reliable precision.
3. Major technical parameter

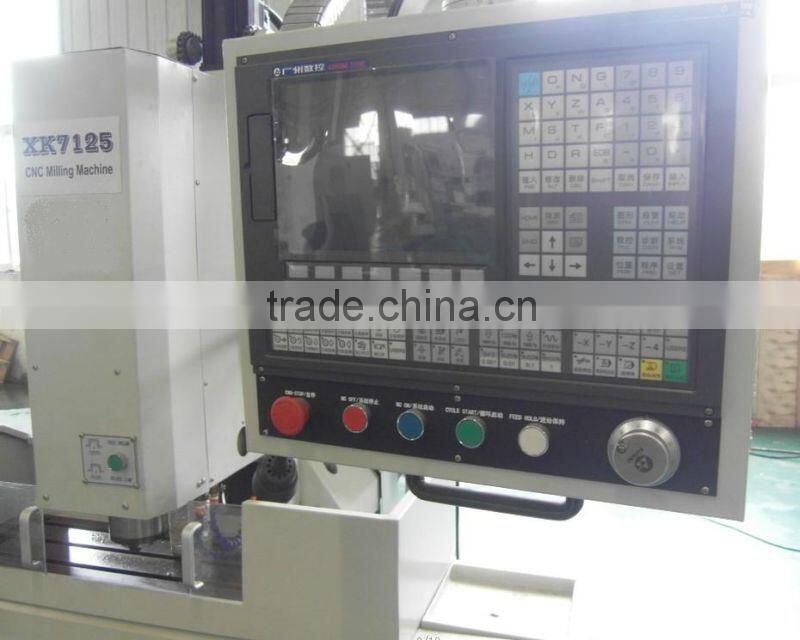

CNC control system(Standard Configuration)
The system is equipped with complete & reliable interlock, safety protection, trouble diagnosis alarm and etc. functions; it also has RS232 standard communication connection, which could have programming control & storage with computers and could realize DNC processing.
Model |
XK7125 |
System |
Huangzhong 180XP/M3 |
Spindle Max. Rotating Speed |
3000rmp(optional 6000rpm) |
Main Motor Power |
1.5 KW (2.2KW) |
Z Motor Torque |
7.7N.m |
X Motor Torque |
6N.m |
Y Motor Torque |
6N.m |
Spindle Taper |
ISO40 (BT30) |
Worktable Size |
900X250mm |
Travel(Longitudinal X/Horizontal Y/Vertical Z) |
450X260X350mm |
Distance of Spindle Axis to Guideway Plane |
330mm |
Distance of Spindle End to Worktable |
80-430mm |
The Vertical Permissible Error of Spindle Axis to Worktable Plane |
≤0.02mm |
Positioning Accuracy |
0.02mm |
Repeated Positioning Accuracy |
0.01mm |
Lubrication System |
Motor Lubrication(Zhejiang) |
4,Packing List
XK7125 Packing List
No. |
Name |
Specification |
Qty. |
1 |
Qualified Certificate |
XK7125 |
1 |
3 |
User Manual |
|
1 |
4 |
Packing List |
XK7125 |
1 |
5 |
Spanner |
17--19 |
1 |
6 |
Allen Wrench |
Set |
1 |
7 |
Timing Belt |
|
1 |
8 |
Milling Chuck |
BT30 |
1 |
9 |
Drawbar |
|
1 |
10 |
Oil Gun |
|
1 |
11 |
Iron Cushion |
|
4 |
5,Major Sourcing Parts List
No. |
Name |
Standard Configuration |
1 |
System |
Huazhong 180XP/M3 |
2 |
Spindle |
Spindle Unit BT30(Jining Best Precision) |
3 |
Ball Screw |
XYZ Ball Screw(Jining Best Precision) |
4 |
Main Motor |
Huada Servo Motor |
5 |
Tooling Devices |
Pneumatic Cylinder XQ-2T/2000KG(Wuxi) |
6,Standard Configuration
1) Spindle Units, manual unclamping tool;
2) Main Motor Power 1.5 KW, regulation speed 100-3000 rpm
3) Three Axial Lead Screw Automatic Centralized Lubrication
4) Semi-protection Metal Sheet Shield
5) CNC System: Great 130 (Standard Configuration)
6) Accuracy List pursuant to JB/T8329.1-1999 “CNC Milling Machine Precision Inspection List” standard;
7,Optional Devices
1) Spindle Unit, Pneumatic Unclamping Tool;
2) Servo Spindle Motor;
3) Frequency Conversion Speed 100-6000rpm;
4) Three Axial Lead Screw Automatic Centralized Lubrication;
5) FANUC 0i mate-MD/ GSK990M or 983M/ KND-1000MA;
CNC System & Supporting Feeding Motor
Introduction: due to different configuration, special orders and CNC systems as well as constantly improving products, partial technical parameters will get influenced; thus check the machine according to the actual situation, any inconvenience, please understand .
