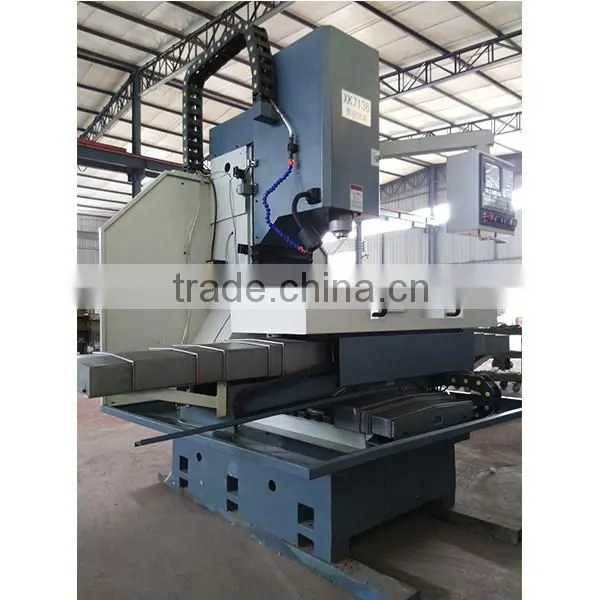

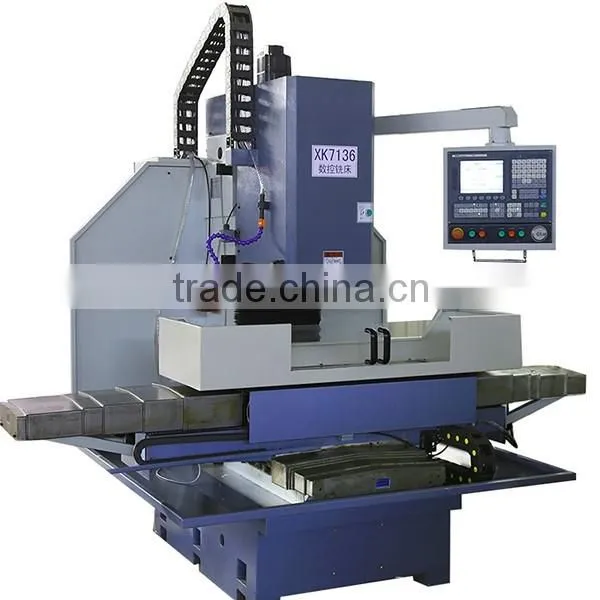

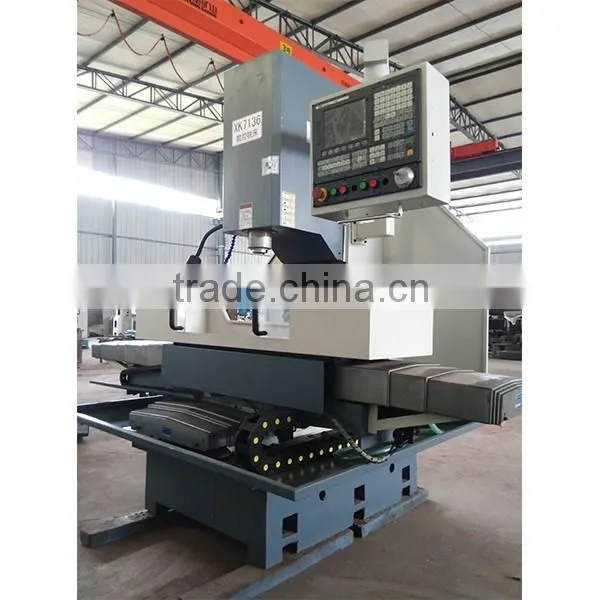

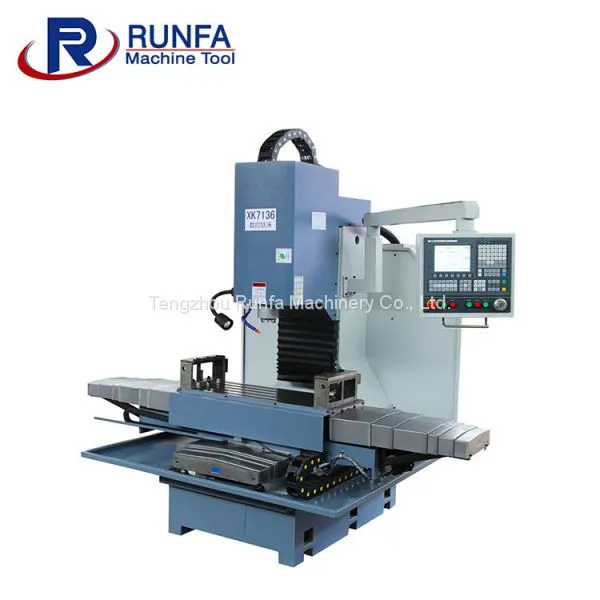

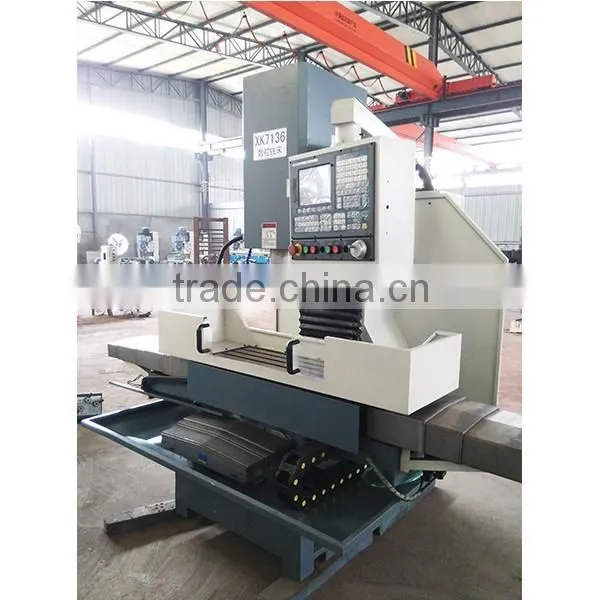

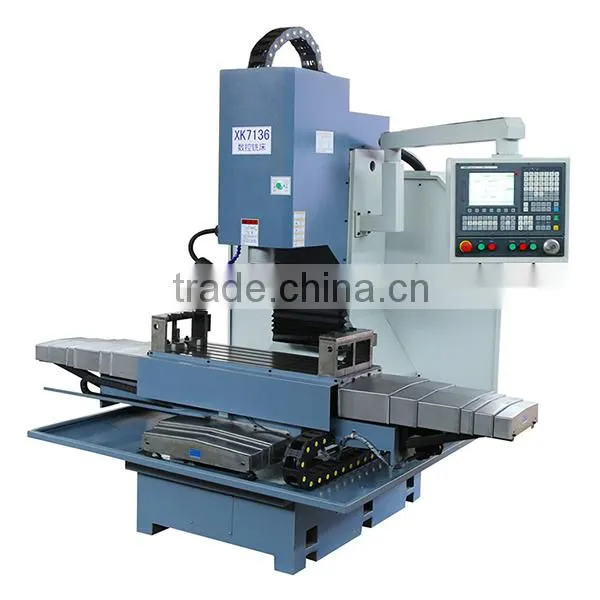

Help CenterXK7136 CNC Milling Machine TOP QUALITY
Related Products
Configuration:
1. spindle taper:BT40 8000 r.p.m,7.5kw spindle motor
2. 3 axis linear rail-Taiwan brand;
3. Siemens 808D cnc control system;
4. Automatic collect lubricating system
5. Water and pneumatic coolant system
6. pneumatic draw cylinder,
7. Semi-guard
Main specification:
Item Name |
Unit |
XK7136 |
worktable |
mm |
1000 x 360 |
T-Slot number/size |
3/18 |
|
Maximum loading weight |
Kg |
300 |
X,Y,Z axis travel |
mm |
900 x 400 x 500 |
Max . Spindle speed |
r.p.m |
8000 |
Main Motor power |
kw |
7.5(servo) |
Spindle taper |
BT40 |
|
Distance from spindle center to column |
mm |
450 |
Distance from spindle nose to worktable |
mm |
500 |
X,Y axis Servo motor |
N.m |
7.7/7.7 |
Z axis Servo motor |
N.m |
10 |
X,Y axis fast move speed |
Mm/min |
20000 |
Z axis fast move speed |
Mm/min |
15000 |
Coolant pump power |
w |
90 |
Coolant pump flow |
L/min |
10 |
Positioning accuracy |
mm |
±0.02 |
Repeatability positioning accuracy |
mm |
±0.015 |
Speed of power feed |
Mm/min |
1-10000 |
Machine weight |
Kg |
3500 |
Overall size |
mm |
2200 x2800 x 2500 |
