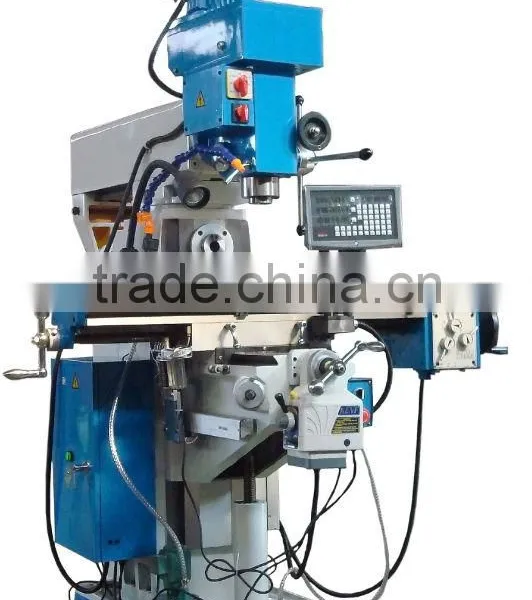

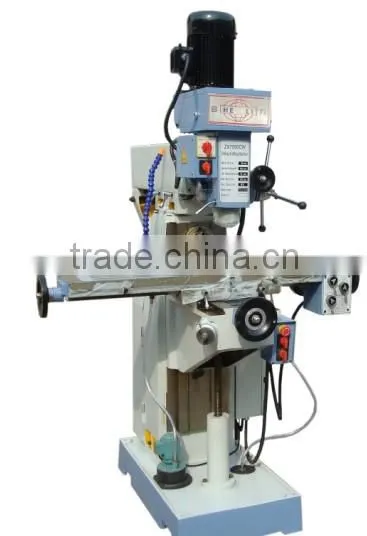

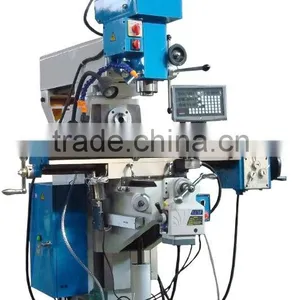

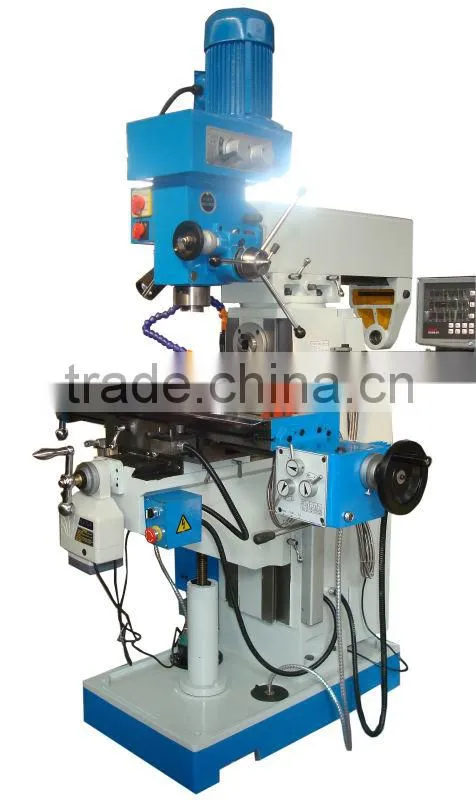

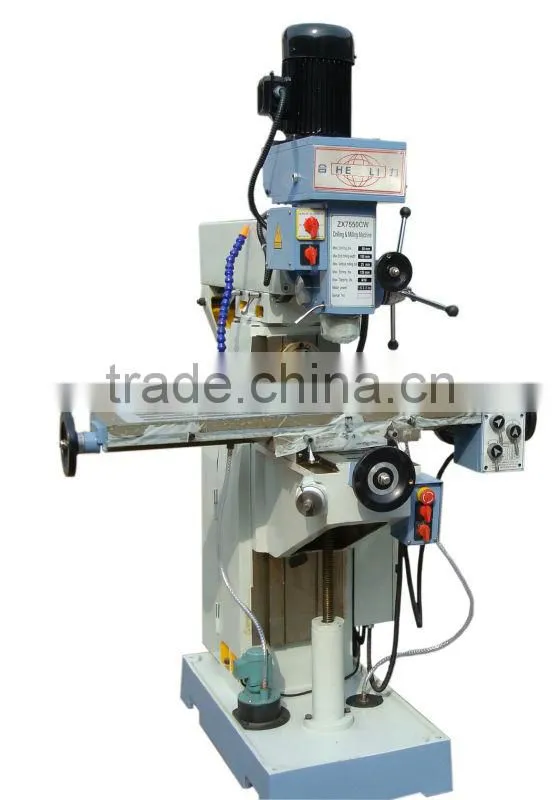

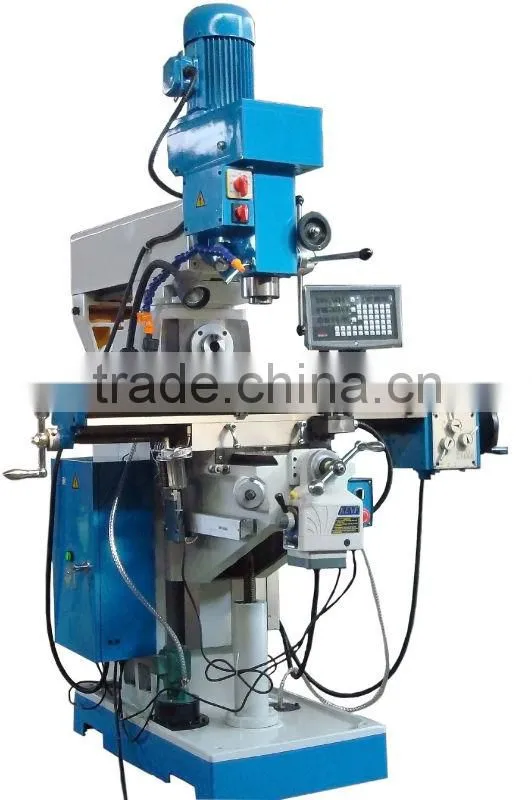

Help CenterDrilling and Milling Machine ZX7550CW(Vertical and Horizontal)
Related Products
-
Drilling and Milling Machine ZX6350C(Vertical and Horizontal)US$ 2,800 - 3,800MOQ: 1 Set -
Drilling and Milling Machine ZX6350D(Vertical and Horizontal)US$ 3,200 - 4,200MOQ: 1 Set
-
Drilling and Milling Machine ZX6350ZA (Vertical and Horizontal)high PrecisionNegotiableMOQ: 1 Set
-
Drilling and Milling Machine ZX6332(Vertical and Horizontal)high PrecisionNegotiableMOQ: 1 Set
-
Small Drilling and Milling Machine ZX50C for SaleNegotiableMOQ: 1 Set
Specifications
1.stable machine body and frame2.high precision and stable function
3.easy maintenace and repaire
4.
This machine is used for metal and other materialmilling,drilling,reaming,boring,grinding,cutting and tapping,the headstock can rotate 90,45 at right and left sides in the vertical plane,its worktable also could travel in transverse and longitudinal direction,some type also could travel in vertical direction.(superior the 7550 model.)Those machine is widely used in the field for instrument,maching,repairing for cutting a single part or a batch of parts.
No. |
Item Name |
Numerical Values |
|||||
ZX7550CW |
ZX50C |
ZX50F |
ZXTM40 |
ZXL-20 |
ZXL-16 |
||
1 |
Drilling capacity |
50 |
50 |
50 |
40 |
20 |
16 |
2 |
End milling capacity |
120 |
100 |
100 |
100 |
40 |
30 |
3 |
Vertical milling capacity |
25 |
25 |
25 |
20 |
10 |
8 |
4 |
Boring capacity |
120 |
120 |
120 |
120 |
-- |
-- |
5 |
Tapping capacity |
M16 |
M16 |
M16 |
M16 |
M12 |
M12 |
6 |
Distance between spindle nose and worktable |
100-480 |
38-430 |
38-430 |
120-550 |
70-410 |
80-380(115-380) |
7 |
Range of spindle speed |
230-1825(V) 80-1300(H) |
230-1825 |
230-1825 |
168-3160 |
250-3200 |
250-3200 |
8 |
Spindle travel |
120 |
120 |
120 |
120 |
90 |
84 |
9 |
Table size |
1000 x 240 |
900 x 240 |
900 x 240 |
800 x 240 |
600 x 200 |
420 x 160 |
10 |
Table travel |
400 x 250 |
400 x 230 |
400 x 230 |
400 x 250 |
250 x 140 |
250 x 120 |
|
11
|
Overall dimensions |
1280 x 1100 x 2250 |
1100 x 970 x 1650 |
1100 x 970 x 1650 |
1100 x 1050 x 1330 |
850 x 780 x200 |
750 x 690 x 1100 |
12 |
Motor power |
(V)0.85/1.5 (H) 1.5 |
1.5 |
1.5 |
1.5 |
0.55 |
0.37 |
13 |
N.W/G.W |
850/1000 |
500/600 |
460/520 |
410/460 |
135/150 |
100/115 |
|
|
|
|
|
|
|
|
|
