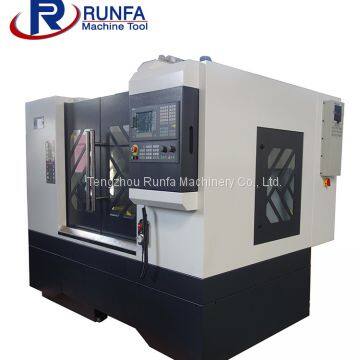

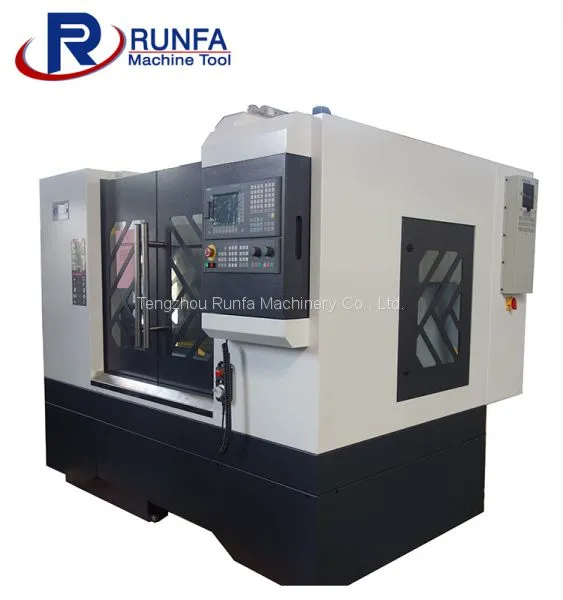

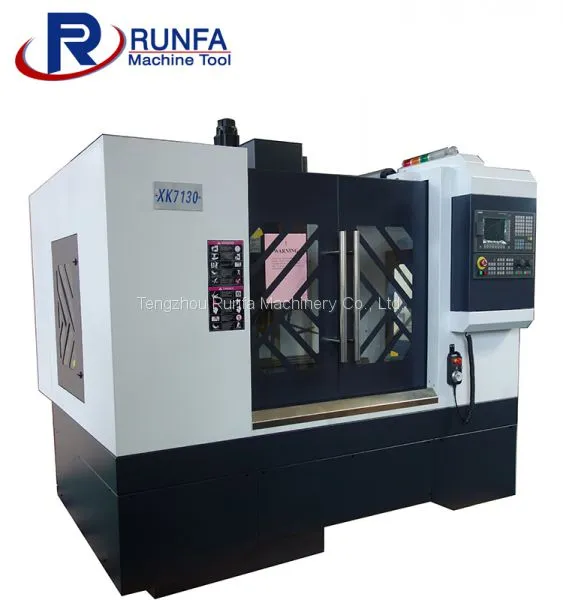

Vertical CNC Milling Machine XK7130

Name: Vertical CNC Milling Machine XK7130
Brand: RUNFA
SKU: 103161359
Availability: InStock

US$ 15800 - 21800 MOQ: 1 Set

Key Specifications

Brand Name:

RUNFA

Place of Origin:

China

Model Number:

XK7130L

Tengzhou Runfa Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO/SHANGHAI

Delivery Detail:

20 days

Brand Name RUNFA

Place of Origin China

Model Number XK7130L

Type Vertical

Certification CE ISO9001

After-sales Service Provided No overseas service provided

Warranty 13 Months

Weight 1550/1700kg

Dimension(L*W*H) 2200x1500x2300mm

Voltage 220V/240V/380V

Condition New

Power(W) 5HP

CNC or Not CNC

Specifications			XK7130L	XK7130L-B
Worktable size			1000 X 300 mm	1000 X 300
T-Slot No/width/interval			3-16mm-100mm	3-16mm-100mm
Maximum Loading weight			200kg	200kg
X axis travel			600mm	600mm
Y axis travel			380mm	380mm
Z axis travel			450mm	450mm
Distance from spindle nose to table surface			100-550mm	100-550mm
Distance from spindle axis to column surface			370mm	370mm
Spindle taper			BT40(spindle unit)	BT40(spindle unit)
Spindle Maximum rotate speed			3000 r.p.m	6000 r.p.m
Main motor power			3kw(converter motor)	3.7kw(servo motor)
Feed motor		X axis torque	6 N.M	6 N.M
		Y axis torque	6 N.M	6 N.M
		Z axis torque	10 N.M	10 N.M
Rapid move speed			10 m/min	10 m/min
Cutting feed speed			1-5000 mm/min	1-5000 mm/min
Screw parameter(diameter/pitch of screw)			30mm/6mm	32mm/6mm
Linear guide width X/Y/Z			30mm	35mm
Precision	Positional Accuracy		0.02mm	0.02mm
Precision	Repositional accuracy		0.015mm	0.015mm
Steel tapping			NO	YES
Change tools type			Pneumatic	Pneumatic
Use pressure			0.6Mpa	0.6Mpa
Machine weight			1500 kg	1700kg
CNC control System
Overall Dimensions(full guard)			2200x1500x2300	2200x1500x2300
