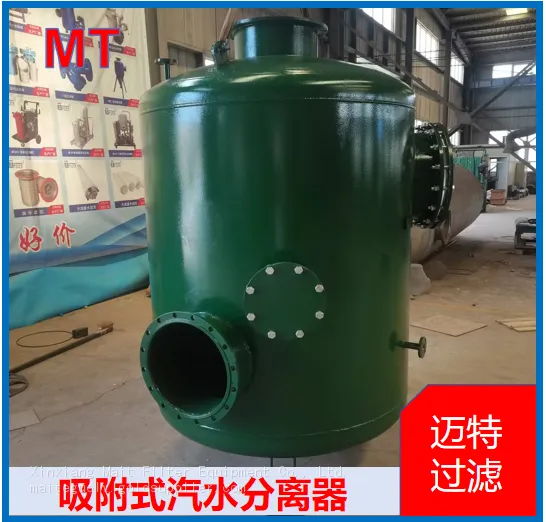

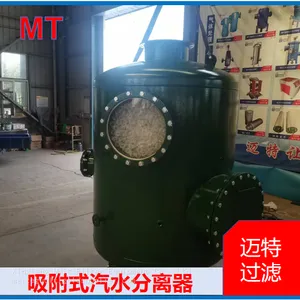

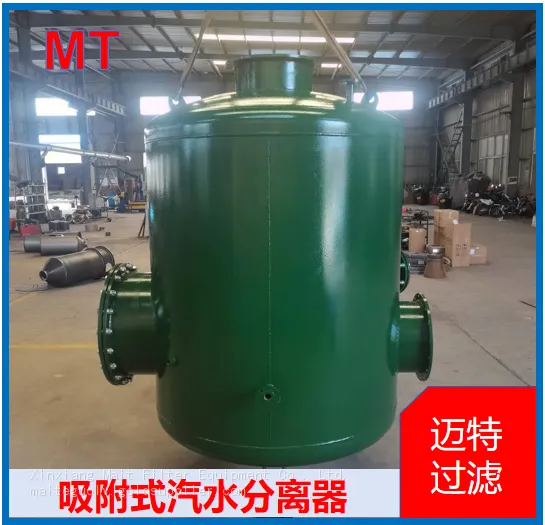

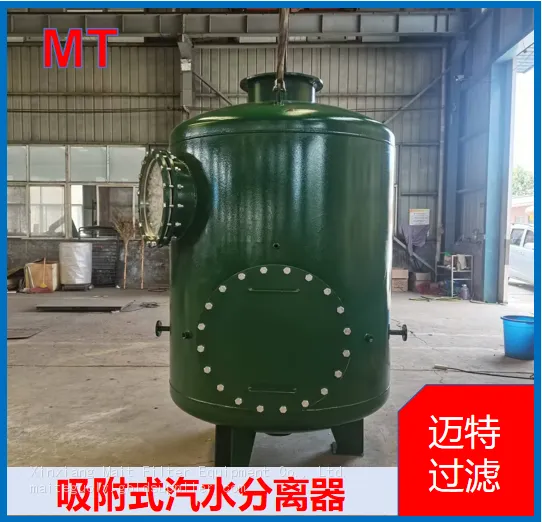

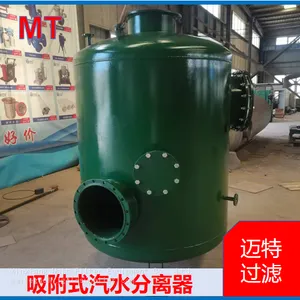

Help CenterAdsorption‑Type Steam‑Water Separator, High‑precision Mist Removal Equipment For Micron‑sized Water Droplets
Product Spotlights
Related Products
-
Baffle‑Type Steam‑Water Separator, Inertial Gas‑Liquid Separation TankNegotiableMOQ: 1 Piece -
TAISEI‑KOGYO Hydraulic Oil Filter Element, Imported Glass‑fiber Pleated Replacement Filter CartridgeNegotiableMOQ: 1 Piece
-
Industrial Hydraulic Pleated Filter Element, Glass‑fiber Precision Oil‑purification CartridgeNegotiableMOQ: 1 Piece
-
EPPENSTEINER(EPE) Replacement Hydraulic Filter Element, Pleated Glass‑fiber Oil Filter CartridgeNegotiableMOQ: 1 Piece
-
Perforated Stainless‑steel Shell Pleated Glass‑fiber Hydraulic Filter ElementNegotiableMOQ: 1 Piece

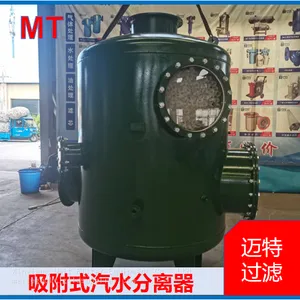

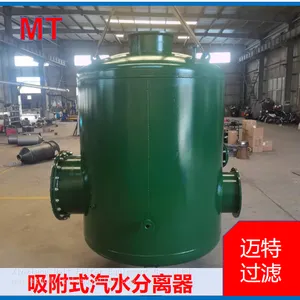

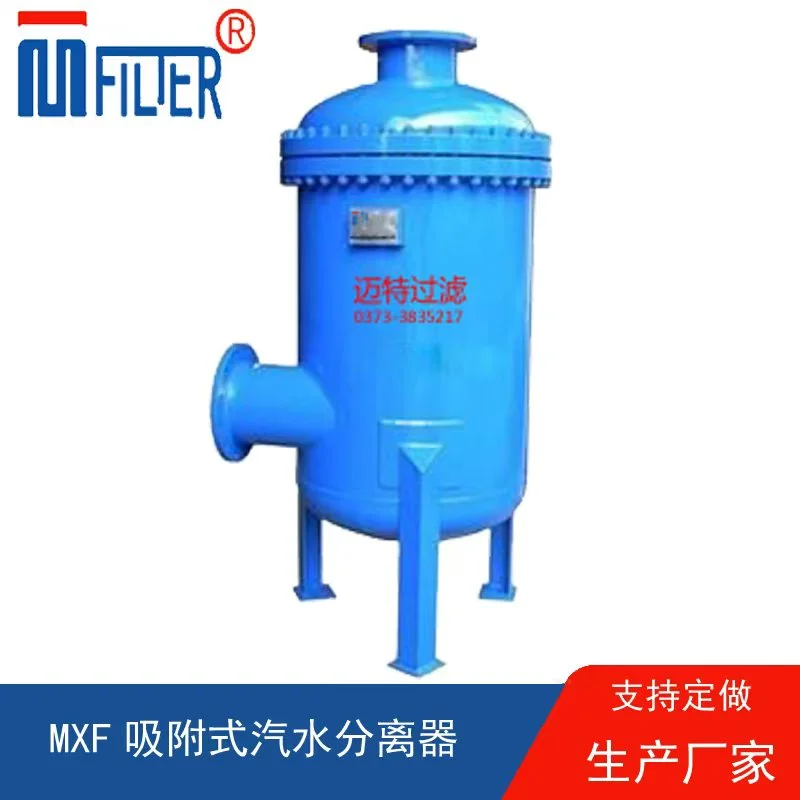

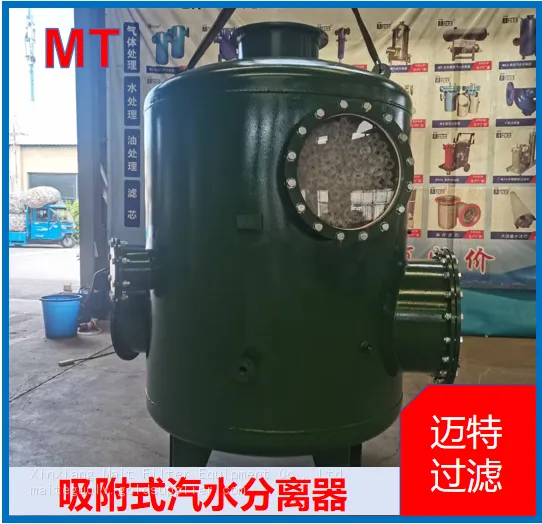

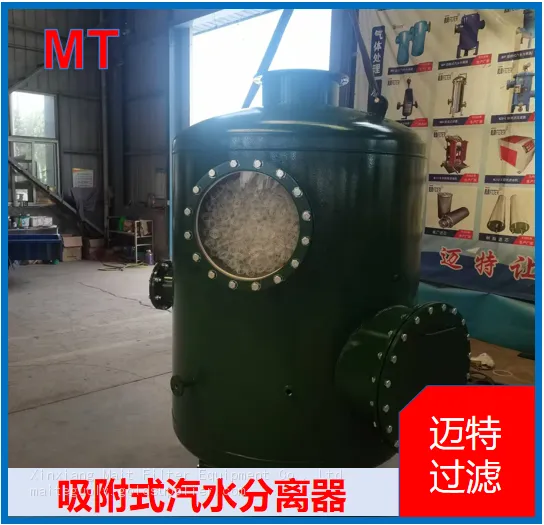

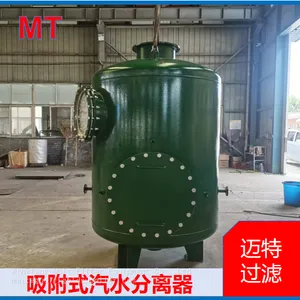

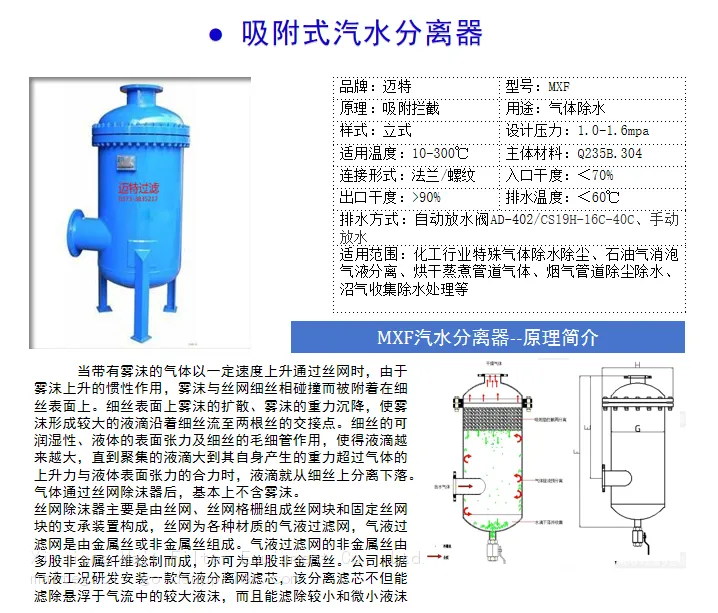

The adsorption‑type steam‑water separator belongs to high‑precision industrial gas‑liquid‑separation pressure‑vessel equipment, widely applied to remove suspended condensed mist inside saturated steam, compressed‑air, biogas and chemical process‑gas pipelines.Traditional cyclone and baffle‑style separators can merely intercept large‑sized water droplets above 20 μm, and tiny micron‑scale mist will still be carried by high‑speed airflow toward downstream pipelines, triggering water‑hammer vibration, pipeline inner‑wall corrosion, blocked valves and failure of precision measuring instruments. This adsorption‑oriented separator solves the above‑mentioned bottleneck by adopting three‑fold separation mechanism of inertial collision, hydrophobic micropore adsorption and gravity sedimentation.When wet mixed‑gas flows into the tank from the side inlet, suspended ultra‑fine mist droplets strike the multi‑layer dedicated adsorption filler. Tiny water beads adhere to filler surfaces and keep coalescing. After droplets accumulate to sufficient weight, gravity pulls them down to the bottom condensate‑storage bin. The adsorption filler can trap droplets as small as 0.1 μm and achieve stable separation efficiency above 99.2%, delivering dry‑gas with moisture content less than 50 ppm.Customers are offered multiple housing‑material selections. Cost‑effective Q235B carbon‑steel suits ordinary non‑corrosive steam pipelines. Food‑grade 304 stainless‑steel adapts to sterilized steam and slightly corrosive biogas. Corrosion‑resistant 316L stainless‑steel is designed for acid‑alkaline chemical‑gas working‑conditions. Its operating‑pressure ranges 0.1‑1.6 MPa, while customized high‑pressure tanks are available up to 10 MPa. The applicable‑temperature scope covers ‑20℃‑300℃ to cope with cold compressed‑air and high‑temperature industrial steam.There are zero movable wearing‑parts inside the separator tank. The streamlined filler layout keeps airflow‑pressure‑loss controlled within 0.02 MPa, bringing little load‑increase for upstream air‑compressors and steam‑supply systems. The adsorption filler features long service‑life of 12‑24 months under standard‑operating‑conditions, which greatly cuts spare‑part expenses and system downtime. A quick‑open top‑cover structure enables convenient filler inspection, cleaning and replacement without complicated disassembly. Multiple drainage‑solutions are available, including manual blow‑down ball‑valves, float‑type automatic drain traps and electric drain‑valves for 24‑hour non‑stop industrial‑production pipelines.This adsorption‑type moisture‑removal tank delivers dependable protection for downstream pipelines, solenoid‑valves, heat‑exchangers, vacuum‑pumps and process‑equipment. It eliminates pipeline water‑hammer, slows‑down metal rusting and prevents water‑induced instrument‑faults. It serves boiler‑house steam pipelines, compressed‑air stations, pharmaceutical sterilization‑steam pipelines, food‑processing equipment, biogas‑fermentation projects, lithium‑battery production gas‑supply pipelines and chemical vacuum‑distillation systems. Every finished‑product undergoes strict air‑tightness pressure‑inspection in accordance with GB150 pressure‑vessel manufacturing‑standards before shipment. Custom‑made caliber, temperature‑resistance and anti‑corrosion schemes are provided according to clients’ unique on‑site working‑condition parameters.
