Help CenterZCQF Cyclone Steam‑water Separator, Industrial Compressed‑air Gas‑liquid Separator
Product Spotlights
Related Products
-
MDF Baffle‑type Steam‑water Separator, Industrial Pipeline Gas‑liquid SeparatorNegotiableMOQ: 1 Piece -
HY‑PRO Replacement Hydraulic Filter Element, Pleated Glass‑fiber Oil Filter CartridgeNegotiableMOQ: 1 Piece
-
MGLS Vacuum Gas‑Liquid Separator, Inlet Protector For Liquid‑ring Vacuum PumpNegotiableMOQ: 1 Piece
-
Horizontal Multi‑stage Steam‑water Separator, Composite Baffle‑vane Gas‑liquid SeparatorNegotiableMOQ: 1 Piece
-
Gas‑Liquid Separator For Fan Duct, Horizontal Multi‑stage Moisture Mist EliminatorNegotiableMOQ: 1 Piece

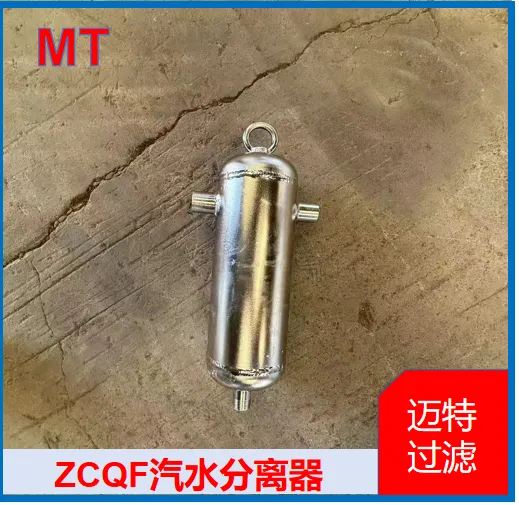

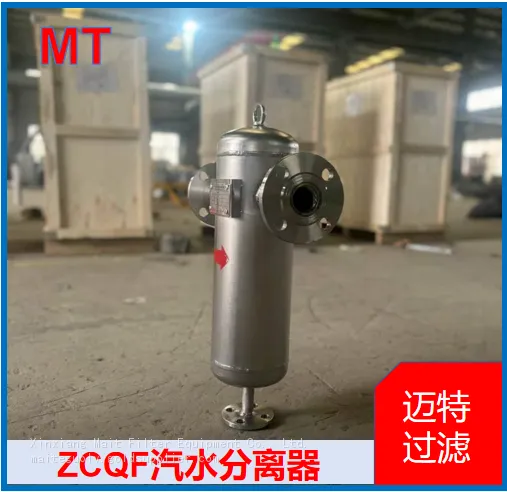

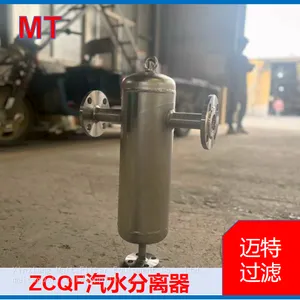

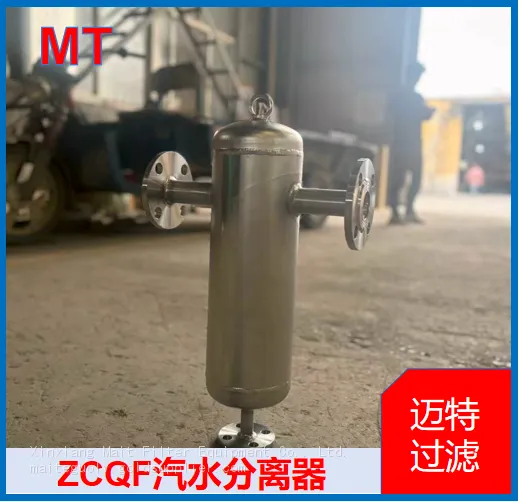

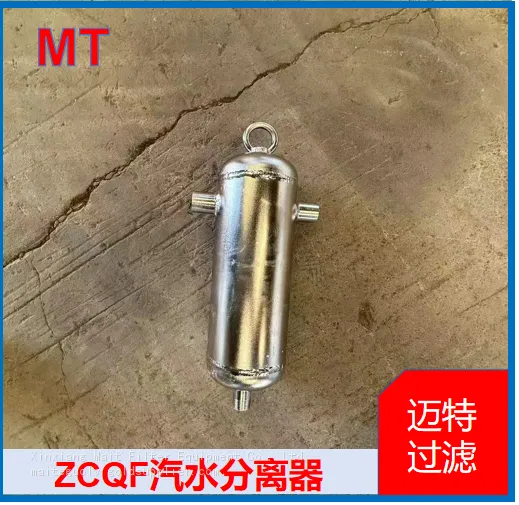

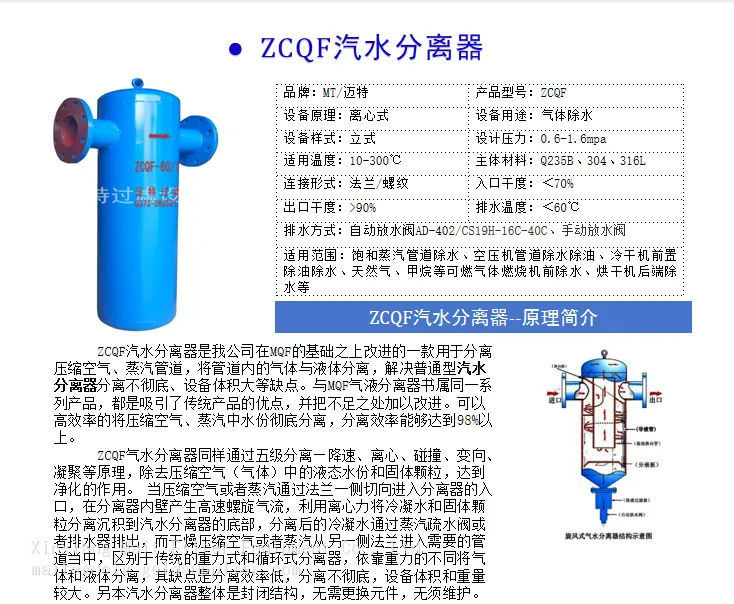

ZCQF series cyclone steam‑water separator is a high‑efficiency industrial gas‑liquid separation equipment independently‑developed by Maite Filter.Different from traditional gravity‑type separators with low dehydration‑efficiency, our separator completes five‑step separation including speed‑reduction, high‑speed centrifugal rotation, droplet collision, airflow diversion and water‑drop aggregation. After gas‑liquid mixed‑flow enters the vertical cylinder, high‑speed cyclone motion generates strong centrifugal‑force. Heavy water‑droplets, oil mist and solid impurities are thrown onto the inner tank‑wall and flow down to the bottom drain‑port, while dry‑clean gas flows out from the upper outlet.

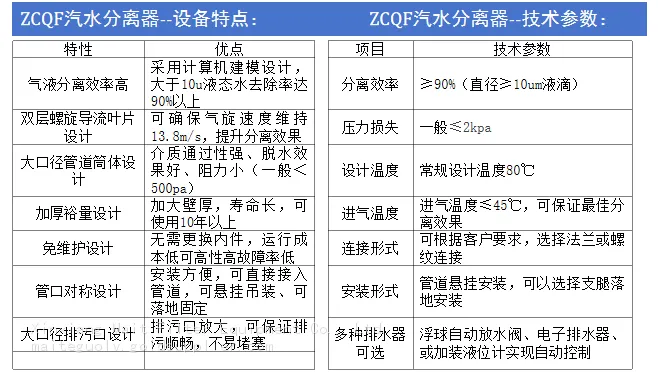

The equipment brings extremely low airflow pressure‑drop below 0.002MPa and will not waste pipeline air‑supply pressure. Customers are allowed to choose carbon‑steel or stainless‑steel tank body to adapt common compressed‑air, high‑temperature saturated‑steam, natural‑gas and other industrial gas. The working‑temperature range covers ‑20℃‑350℃ and the rated‑pressure reaches 2.5MPa.

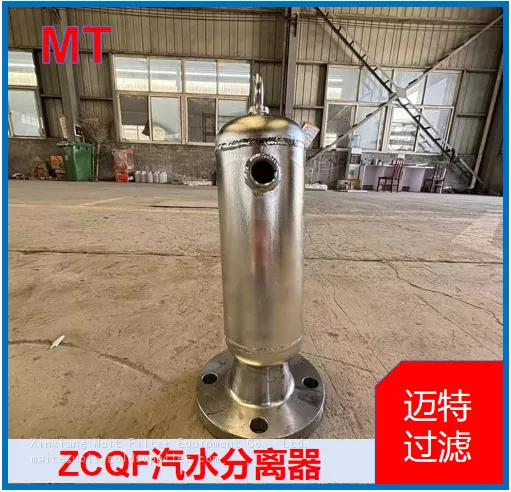

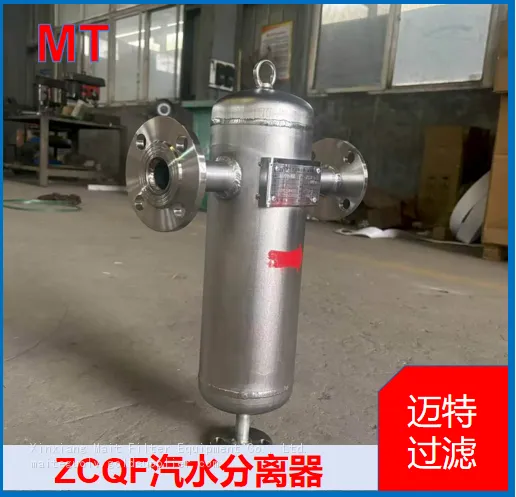

This cyclone water‑remover contains no replaceable filter‑elements and achieves maintenance‑free long‑time running. You can equip manual drain‑valve or automatic drain‑valve for unattended condensate discharge. Flange and thread two connection‑modes meet on‑site pipeline installation requirements, and its compact vertical‑structure supports wall‑hanging installation in narrow‑space.

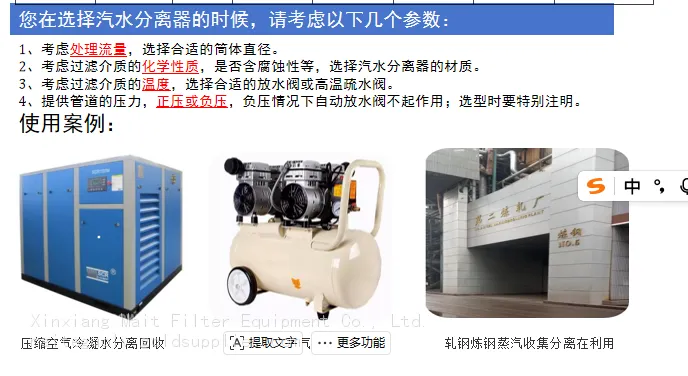

ZCQF steam‑water separator is widely deployed for boiler heating‑networks, air‑compressor stations, laser‑cutting machinery, chemical‑spray workshops, vacuum‑pump pipelines and geothermal steam systems. It eliminates pipeline water‑hammer risk, protects downstream valves, dryers and precision machinery, and effectively slow‑down inner‑wall rusting of gas pipelines. Custom‑made caliber, processing‑flow and high‑temperature‑resistant version are available according to working‑condition demands. Every separator undergoes strict pressure‑resistance and sealing‑inspection before delivery.
Send Inquiry to This Supplier
