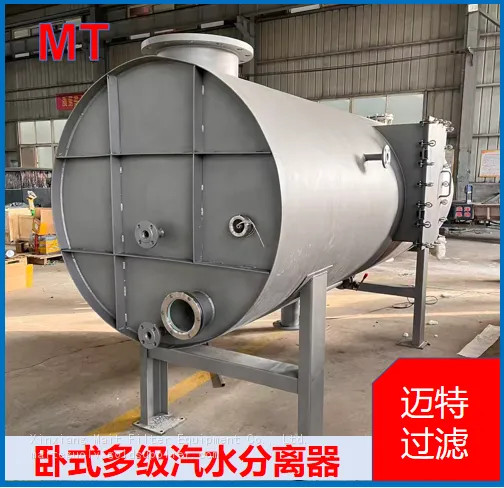

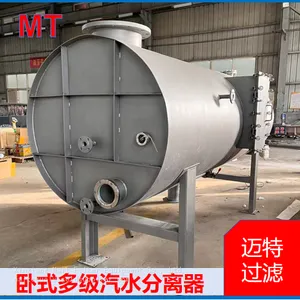

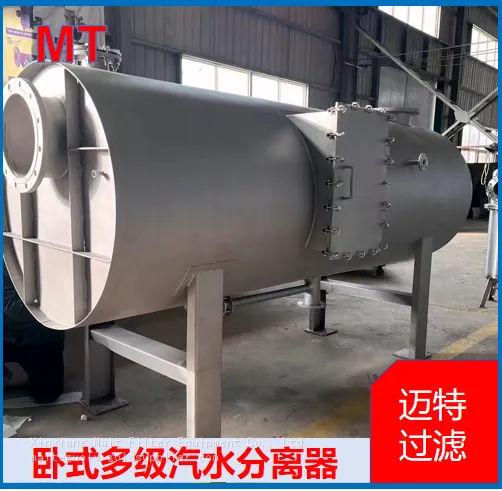

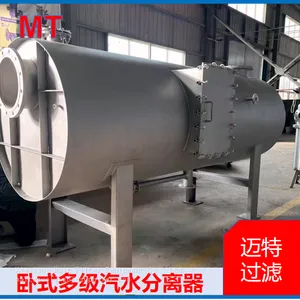

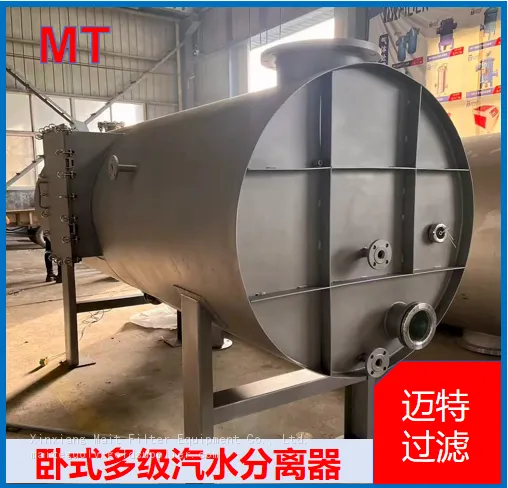

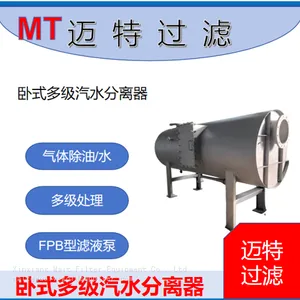

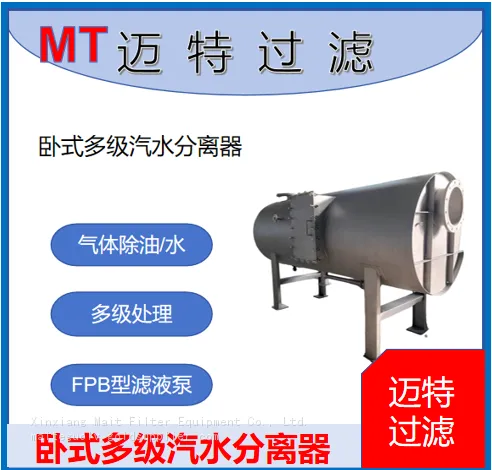

Horizontal multi‑stage steam‑water separator is high‑efficiency composite gas‑liquid separation equipment for large‑flow industrial pipeline. Different from single‑stage baffle or cyclone separators, this unit integrates gravity expansion settling, multi‑layer baffle impaction and vane coalescing three‑level internals inside horizontal cylinder.

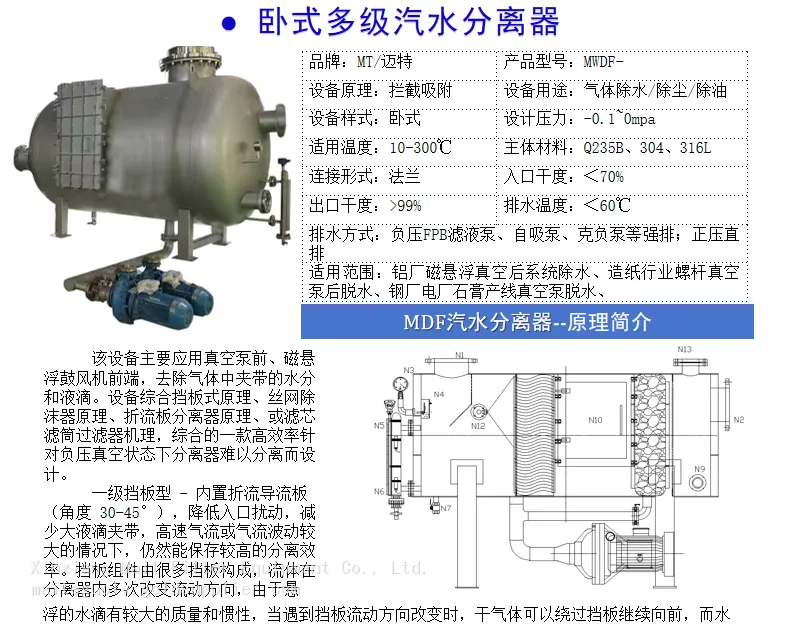

Wet steam or compressed‑air flows horizontally into vessel. Flow area expands and velocity decreases, large droplets settle under gravity. When gas passes through multi‑deflector baffles, flow direction changes repeatedly, medium‑sized droplets collide, merge and fall down. Remaining fine mist is captured by high‑efficiency vane coalescing components. All condensed moisture accumulates in bottom sump and is discharged by drain accessories. Dry clean gas flows out of outlet flange.
Horizontal layout brings low overall height, perfectly solving installation difficulty for workshops, underground stations and offshore platforms with insufficient vertical space. Larger gas‑liquid contact area guarantees stable separation performance even under high liquid‑loading and fluctuating flow conditions. There are no consumable filter cartridges inside, so the equipment can run stably with minimal maintenance.

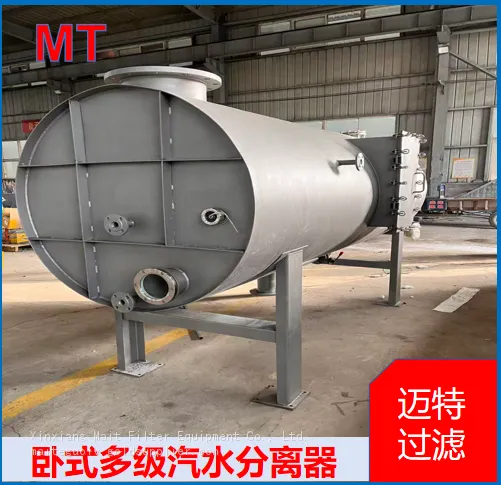

Tank body is Q235‑B carbon‑steel with anti‑rust spray‑coating. 304 or 316L stainless‑steel version is available for corrosive medium. Customers can choose level gauge, manual drain valve, automatic drain valve or liquid‑discharge pump according to working‑condition.

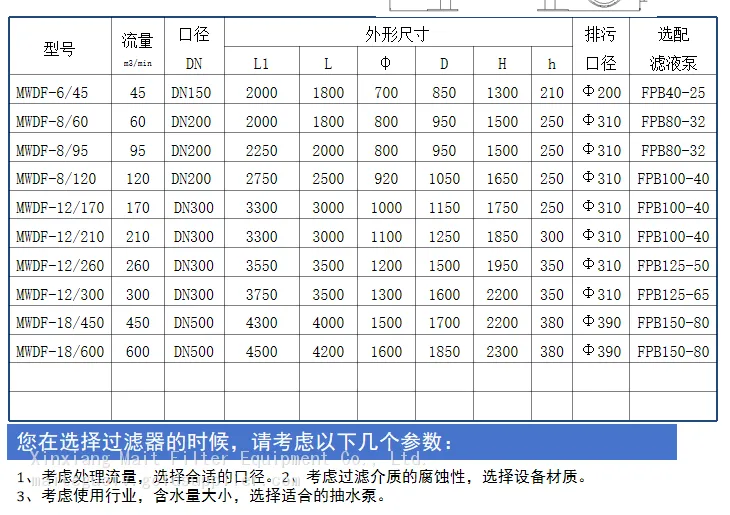

It is widely deployed for boiler steam pipeline, air‑compressor station, chemical processing, natural‑gas & biogas purification and vacuum system. The separator effectively reduces water‑hammer, droplet erosion and pipeline rust, and protects downstream turbine, heat‑exchanger, dryer and fan equipment. Custom‑made caliber, flow capacity and pressure rating are supported. Every unit will pass strict pressure‑resistance and tightness inspection before delivery.
