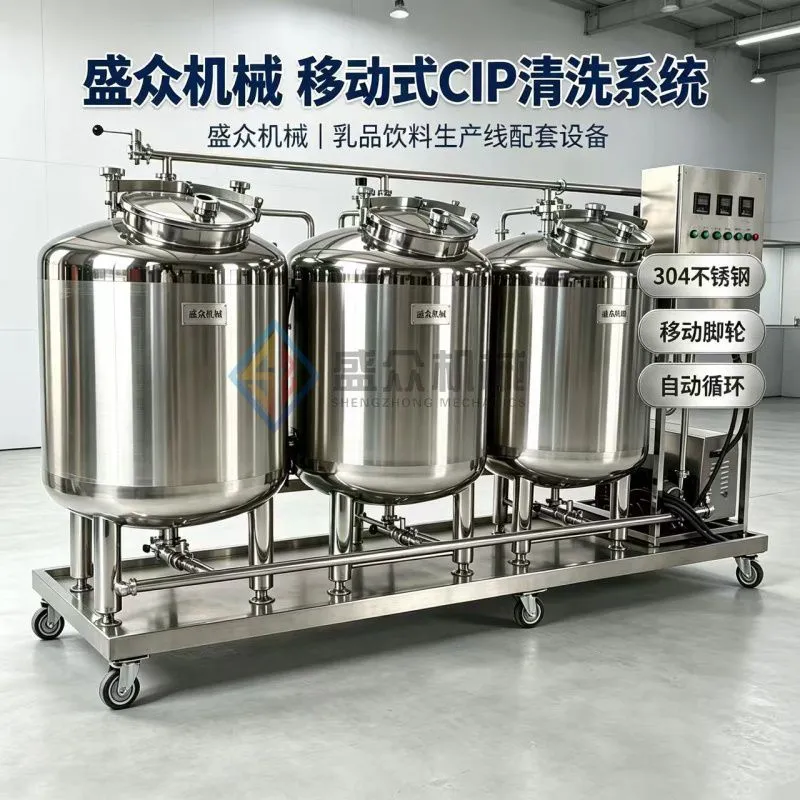

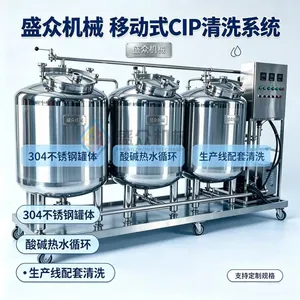

Mobile CIP Cleaning Machine CIP Cleaning System for Acid/Base Water Cleaning Equipment
In-situ cleaning (CIP) is a proven method for cleaning the internal surfaces of process equipment without the need for disassembly or relocation.
In the production of food, beverages, dairy products, juices, breweries, and pharmaceuticals, CIP is used to clean surfaces that come into contact with products, such as pipes, pumps, valve bodies, tanks, and heat exchangers, with controlled flow rates, temperatures, and chemical concentrations. (Food processing machinery manufacturer Tel: 150*0646-5106)
A well-designed CIP system can provide repeatable sanitation results, reduce downtime, and minimize the risk of secondary contamination, as cleaning occurs within a closed cycle.
Zhucheng Shengzhong Machinery supplies CIP cleaning systems ranging from 100L to 5000L. These systems are designed to achieve stable flow rates, reliable heating, and scalable automation, allowing you to match the cleaning intensity according to your products, dirt load, and regulatory requirements.
A typical CIP system comprises the following components:
Chemical formulation tanks (alkali tanks, acid tanks, hot water tanks, and optional recycling tanks).
Pumps, pipes, valves, fittings.
Heating components (steam/electric heating + heat exchanger option).
Control cabinet (automation system featuring a human-machine interface/programmable logic controller).
The cleaning performance of CIP (Cleaning in Place) is more than just “chemical cleaning”; it encompasses the following aspects:
Mechanical action: Maintain sufficient flow velocity and turbulence to exert impact and shear forces on the residue.
Thermal effects: Hot water and heated cleaning solutions are more effective at removing dirt and disinfecting surfaces.
Chemical action: controlling the dosage of alkaline/acidic solutions to dissolve organic and inorganic contaminants.
Time control: Repeatable duration of steps to ensure consistency between different shifts and batches.
By managing these four factors through a robust CIP design, you will achieve measurable benefits: faster changeovers, reduced labor requirements, lower water/steam/chemical consumption, safer operations, and longer equipment lifespans—particularly when compared to manual disassembly and open-system cleaning.
Mobile CIP Cleaning Machine CIP Cleaning System for Acid/Base Water Cleaning Equipment
