Automatic CIP Cleaning System, CIP Cleaning Machine, Small PLC-Controlled Cleaning Equipment
The PLC-controlled fully automatic CIP (Cleaning In Place) cleaning system is an ideal method for equipment and pipe cleaning. It is increasingly being used in food processing enterprises, dairy products, and beverage companies. The fully automatic CIP equipment (vessels, pipes, pumps, etc.) and the entire production line perform cyclic cleaning and disinfection within a closed loop without the need for manual disassembly or opening. It can automatically detect, add, discharge, and display cleaning solutions, ensuring reliable operation, high automation, and ease of use. The CIP cleaning method is highly effective and widely used in modern large-scale fluid pharmaceutical, food, and beverage processing processes, where stringent hygiene and production environment requirements apply. (Food processing machinery manufacturer Tel: 150*0646-5106)
II. Classification of Fully Automatic CIP Cleaning Systems
A. Based on structure: Integrated (monolithic) CIP system, Separate CIP system.
B. According to the heating method: steam heating, electrical heating.
III. Structure of the Fully Automatic CIP Cleaning System
The fully automatic CIP cleaning system consists of acid tanks, alkali tanks, hot water tanks, pure water tanks, concentrated acid and alkali tanks, heat exchangers, various pipes and pneumatic valves, pressure transmitters, electrical conductivity meters, platinum thermistors, and control systems.
IV. Characteristics of the fully automatic CIP cleaning system
1) Ensure a certain level of cleaning effectiveness to enhance product safety.
2) Save operating time and improve efficiency; save labor and ensure operational safety; conserve water, steam, and other energy resources, and reduce the amount of detergents used; production equipment can be made larger and more automated.
4) The fully automatic CIP cleaning system can automatically detect, add, discharge, and display the cleaning solution, ensuring its reliable operation, high degree of automation, ease of use, and effective cleaning results, thereby better meeting the hygiene and production environment requirements of modern large-scale fluid pharmaceutical and food processing processes.
5) The automatic CIP cleaning system automatically adjusts the temperatures of clean water, acid, alkaline cleaning solutions, and hot water to various levels.
V. Technical Data of the Fully Automated CIP Cleaning System
The cleaning tanks are designed as either integrated or separate structures, depending on the volume of cleaning and the specific requirements of the process.
1. Integrated design: The system primarily consists of acid tank, alkali tank, pure water tank, frame, cleaning fluid delivery and distribution device, and centrifugal pump.
2. Modular design: The system primarily consists of acid tank, alkali tank, hot water tank, pure water tank, concentrated acid tank, concentrated alkali tank, plate-and-fin heat exchanger, cleaning fluid delivery and distribution unit, and centrifugal pump.

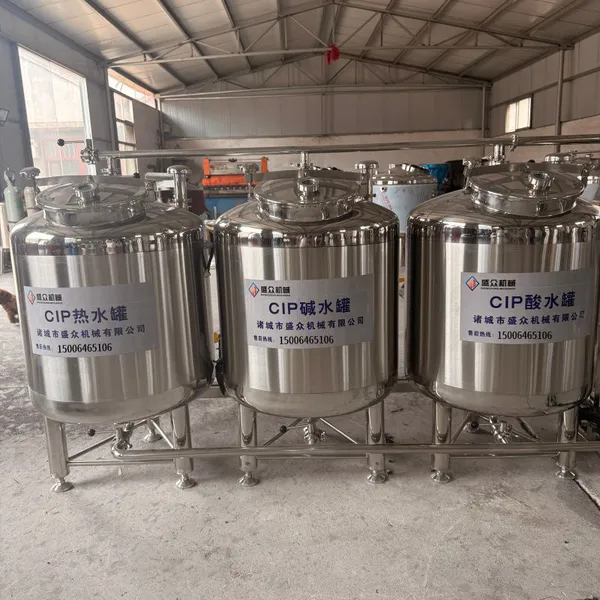

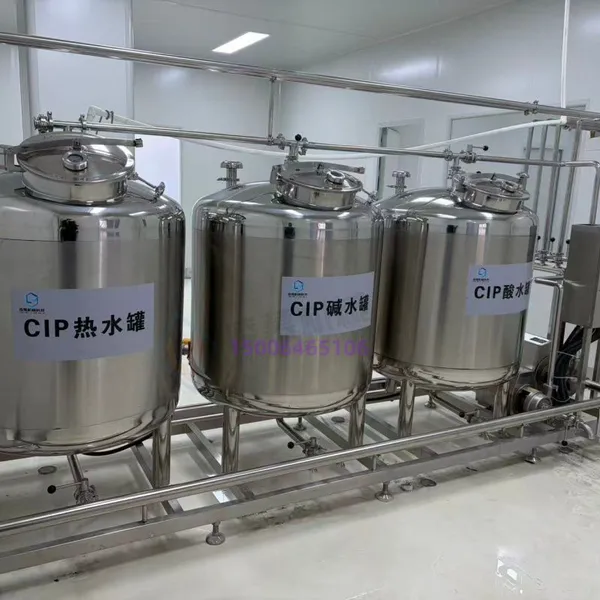

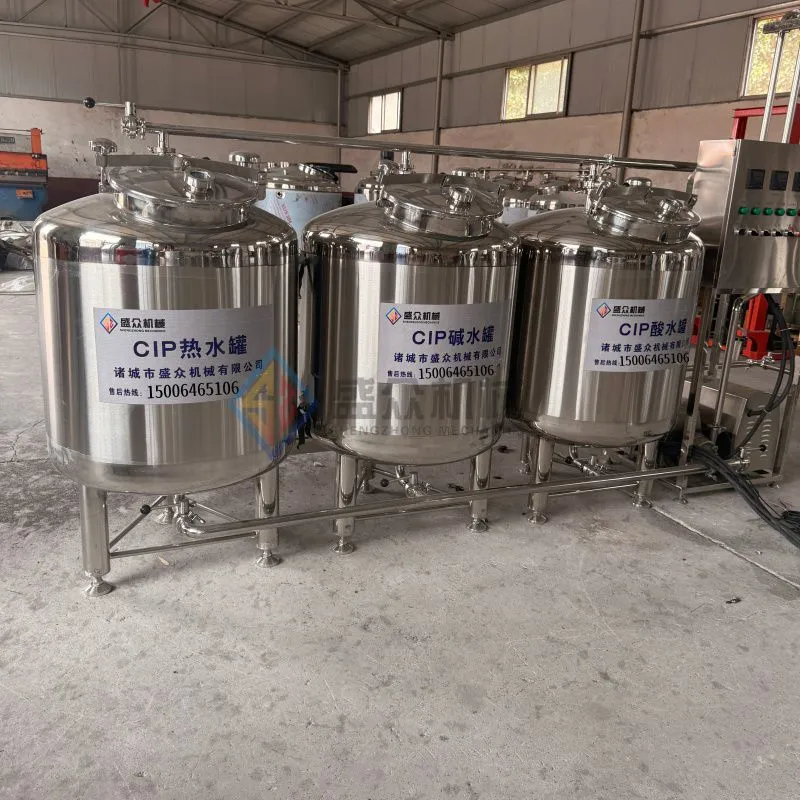

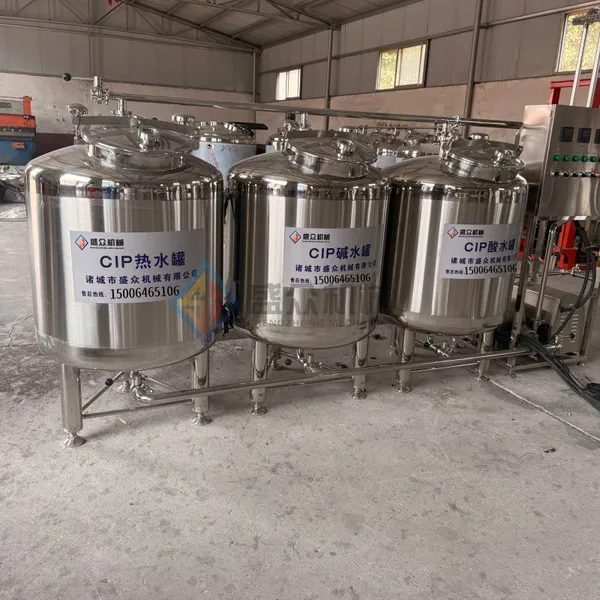

① Acid tanks: SUS304, capacities ranging from 500 to 5000 L, can be customized according to customer requirements.
② Alkali tank: SUS304, capacity 500–5000L, etc. Can be customized according to customer requirements.
③ Water tanks: SUS304, capacities ranging from 500 to 35,000 L, can be customized according to customer requirements.
Automatic CIP Cleaning System, CIP Cleaning Machine, Small PLC-Controlled Cleaning Equipment
