N Series Lab Nano Bead Mill
Product Spotlights
N series pin bead mill suits small-batch lab dispersion and metal-free nano grinding. High-energy pin rotor delivers nanometer fineness, with optional SiC chamber & ceramic rotor. Supports pass/circulation modes, 0–2800rpm dynamic separation, PLC/inverter control, simple cleaning for R&D and lab trials.
Negotiable
MOQ: 1 Combo (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Certification:
CE, ISO
Main Material:
Alloy Steel
Application:
Liquid, Liquid with Suspended Solids
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Certification
CE, ISO
Main Material
Alloy Steel
Application
Liquid, Liquid with Suspended Solids
Additional Capabilities
Coating, Milling, Vacuum
After-sales Service
Engineers Available to Service Machinery Overseas
Application Area
Agricultural Chemicals, Chemical, Food, Pharmaceutical
Trademark
rucca

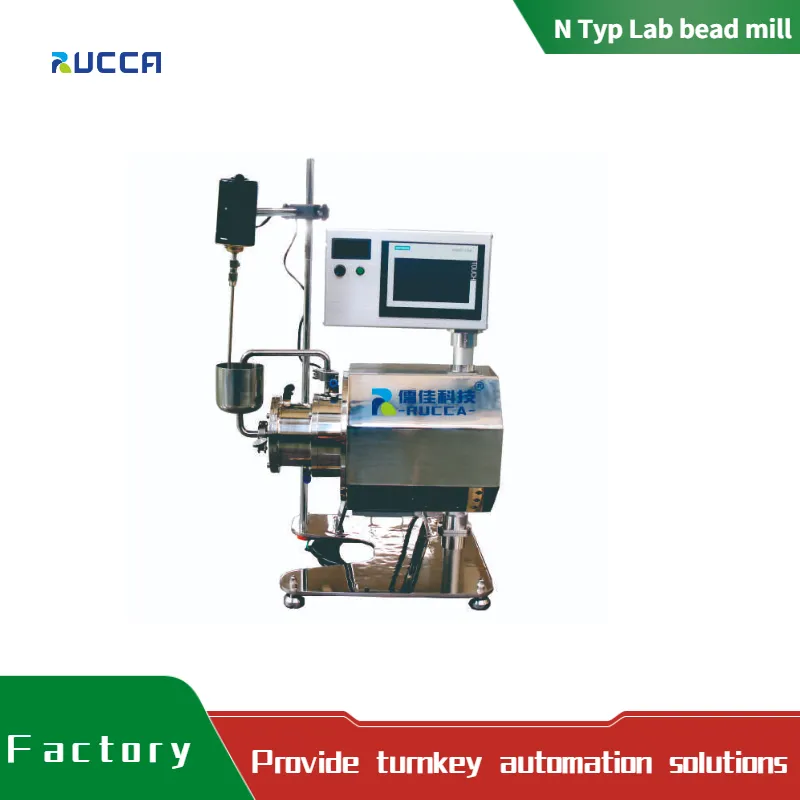

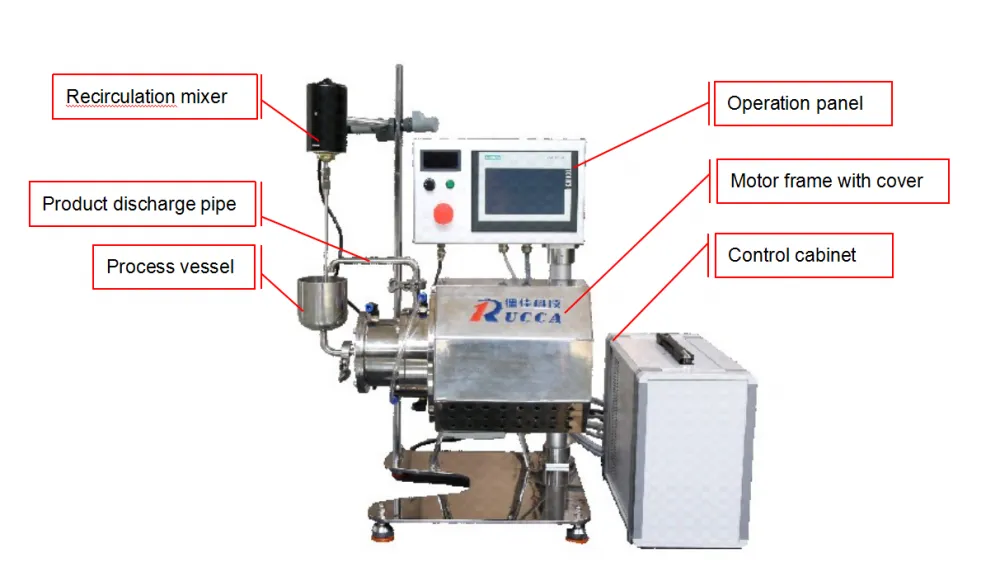

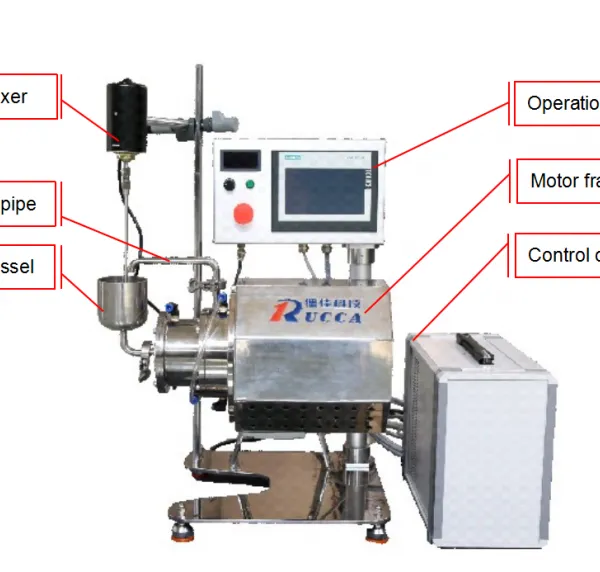

N series lab nano bead mill
Apply for dispersing and mill small batch product,enable metal free fine grinding of your high quality products.With characteristics of multi-function,easy operation and stable,it is widely used in science study and new product’s development.
Characteristics
1. Pin type rotor,high energy density,can mill slurry particle size down to nanometer range.
2.The N series is available for three different material designs.
3.Could choose SiC chamber and ceramic rotor,metal free.
4.Simple and clean operation.
5.Suitable for continuous pass and circulation operation.
6.Dynamic discharging(N03)，speed 0~2800rpm,PLC or inverter adjusted.
Technical Specifications
| Type | Working Volume(mL) | Power(KW) | Batch(mL) |
| N03 | 300 | 1.1 | 500-3000 |
| N05 | 500 | 4 | 600-5000 |
| N1 | 1000 | 4 | 1200-8000 |
