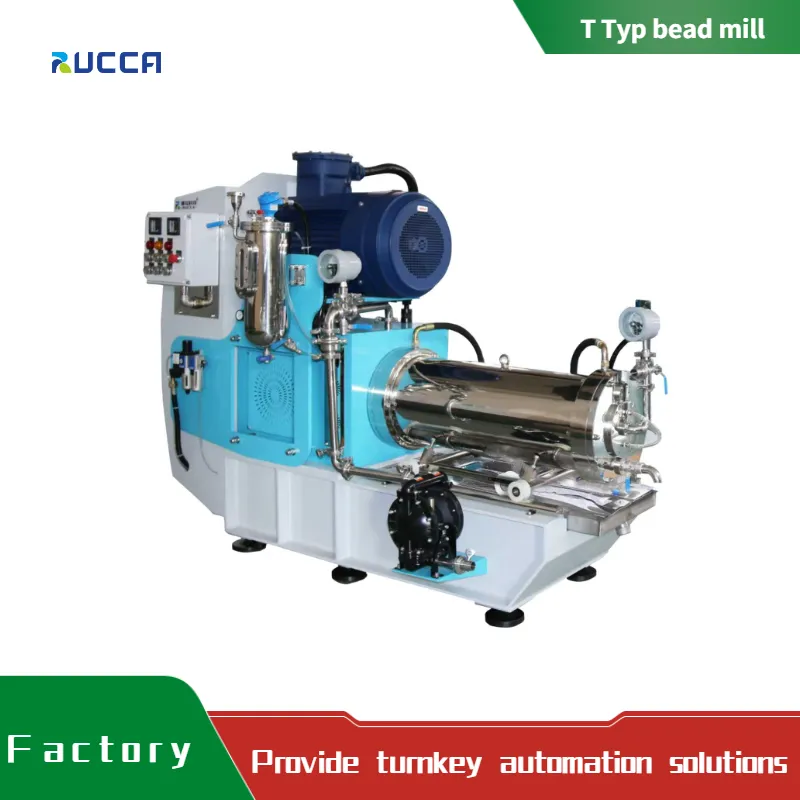

T-Turbo horizontal bead mill
Features
1. Uniform distribution of the grinding beads density in the grinding chamber for maximum effectiveness.
2. Holistically optimized flow guidance for optimum residence time distribution of the particles
3. Metallic and ceramic variants available
4. Suitable for the production of all types of nano-suspensions
5. Suitable for pass mode and circulation mode
6. Long lifetime of the static discharging screen separator
7. Optimal energy input with effective cooling system
8. High security property, with auto-stop function when pressure and temperature value is up to the set limit or coolant level of mechanical seal is lower than required.
9. VFD control and PLC are optional
10. Low noise level
11. High reliability & working stability, and elongated life.
Applications
Inkjet ink ∙ Coatings ∙ Dyes, color pastes ∙ Pigment preparations, pigment production, ∙ Pesticides ∙, polishing agents for electronic components ∙,etc.
Technical data:
| Parameter Model |
Total volume L | Working volume L | Power Kw | Batch L | Cooling Water L/h | Max line Velocity m/s |
| T6 | 9 | 6 | 11 | 30~100 | 1000 | 14 |
| T15 | 20 | 15 | 22 | 50~200 | 1500 | 14 |
| T30 | 40 | 30 | 45 | 100~400 | 2000 | 14 |
| T50 | 75 | 50 | 55 | 300~1000 | 3000 | 15 |
PRODUCT CASE
After sales service:
Check site preparation, on-site installation and commissioning available by professional technical engineers;
Check equipment testing situation, communicate with customers and production department in time, solve problems until customer is satisfied;
Set up customer profiles and regularly visit customers;
Strict management of after-sales engineers, set customer satisfaction as the highest standard of after-sales service.
With 24-hour service hotline, we will promptly handle customer's problems or complaints, and quickly feedback to engineers. If necessary, we promise to provide on-site service within 48hours.
Regular on-site service, reminder service, inspection service before the end of the warranty period.
