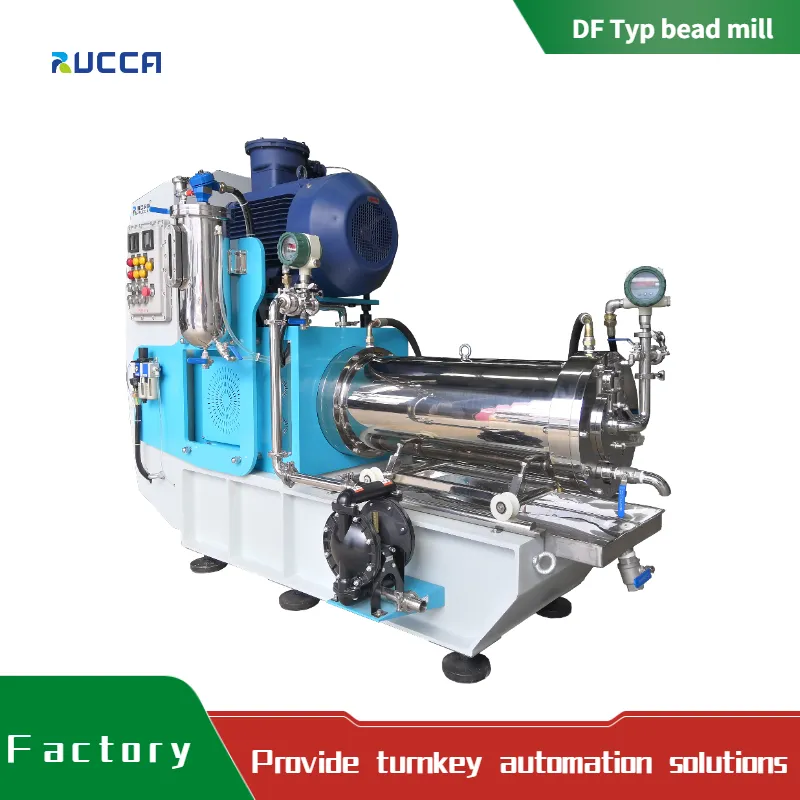

DF-High efficiency disk horizontal bead mill
Features
1. The reverse-feeding agitator disks create a homogenous beads distribution, which maximizes energy efficiency for your process.
2. Low specific energy requirement & narrowest particle size distribution, no beads near the discharging screen, with the smallest wearing rate, ensure long service life of the sieve.
3. Highly-efficient grinding media separation system and highest throughput rates .
4. With spiral type baffle inside the cooling jacket for better cooling efficiency.
5. High security property, with auto-stop function when pressure and temperature value is up to the set limit or coolant level of mechanical seal is lower than required.
6. Feeding device: pneumatic diaphragm pump, frequency control gear pump, screw pump and peristaltic pump optional as clients' requirements, contact material with good solvent resistant property.
7. VFD control and PLC are optional
8. High reliability & working stability, and elongated life.
Key benefits
1. A wide range of contact materials allows tailoring the process to your precise needs, hard alloy, ceramic and polyurethane optional.
2. Efficient bead separation with a large screen surface offers you higher flow capability without compromising quality .
Applications
Printing inks ∙ Coatings ∙ Pigments ∙ Textile dyes ∙ Magnetic coatings ∙ Paper coatings ∙ Fillers ∙ Pesticides ∙ Ores ∙ Minerals ∙ Technical and consumer ceramics ∙ Ceramic masses and glazes ∙ Pharmaceuticals ∙ Cosmetics ∙ Biotechnology: cell disruption,etc.
Technical data:
| Model | Working volume L | Power Kw | Batch L | cooling water L/h | Max line velocity m/s |
| DF5 | 5 | 5.5 | 50~200 | 500 | 10 |
| DF10 | 10 | 18.5 | 100-500 | 500 | 10 |
| DF30 | 30 | 30 | 200~1000 | 1000 | 10 |
| DF60 | 60 | 37 | 200~2000 | 1500 | 10 |
| DF100 | 100 | 55 | 500~3000 | 2500 | 11 |
| DF150 | 150 | 75 | 800-5000 | 3500 | 11 |
| DF300 | 300 | 110 | 1000~8000 | 5000 | 12 |
