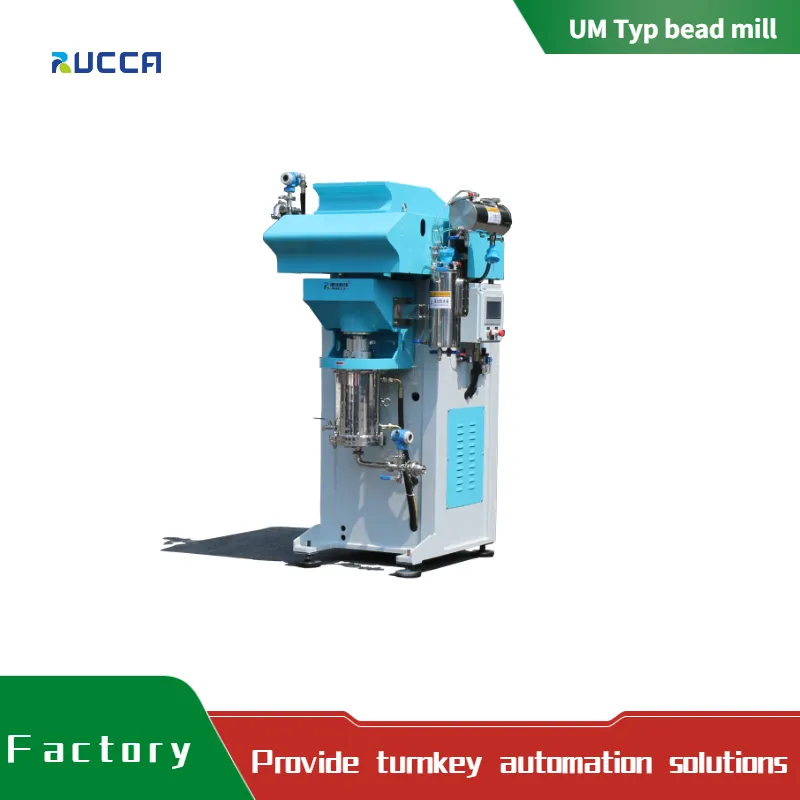

UM high energy vertical bead mill
Application:
NC-printing Inks, special liquid printing inks, tinting pastes
For coatings, inkjet, nano product, automotive refinish & OEM, Industrial multi-purpose coatings，electronic paste
Features:
▪ High energy density mill
▪ Internal media recirculation
▪ High flow rate product recirculation
▪ Discrete pass option
▪Full production size mill
▪ 6 times smaller than conventional mill
▪Frequency inverter drive
▪ Plc - based automation package
Key benefits
Power input primarily by turbulent displacement of media for demanding true grinding and dispersing applications high flow rate capability by internal media recirculation grinding media separation by centrifugal forces outstandingly suitable for recirculation grinding excellently suitable for 1-pass grinding with high flow rate linear scale-up with temperature sensitive products.
Technical data:
| Model | Grinding Chamber Volume L | Power kW | Batch L | Max .Tip Speed |
| UM02 | 0.2 | 2.2 | 0.5-1 | 10-16 |
| UM05 | 0.5 | 3.7 | 1-5 | 10-16 |
| UM2 | 2 | 5.5/7.5 | 3~20 | 10-16 |
| UM6 | 6 | 18.5/22 | 20-200 | 10-16 |
| UM15 | 16 | 45/55 | 150-1000 | 10-16 |
| UM30 | 30 | 75/95 | 150-2000 | 10-16 |
| UM60 | 60 | 160 | 300-3000 | 10-16 |
PRODUCT CASE
After sales service:
Check site preparation, on-site installation and commissioning available by professional technical engineers;
Check equipment testing situation, communicate with customers and production department in time, solve problems until customer is satisfied;
Set up customer profiles and regularly visit customers;
Strict management of after-sales engineers, set customer satisfaction as the highest standard of after-sales service.
With 24-hour service hotline, we will promptly handle customer's problems or complaints, and quickly feedback to engineers. If necessary, we promise to provide on-site service within 48hours.
Regular on-site service, reminder service, inspection service before the end of the warranty period.
