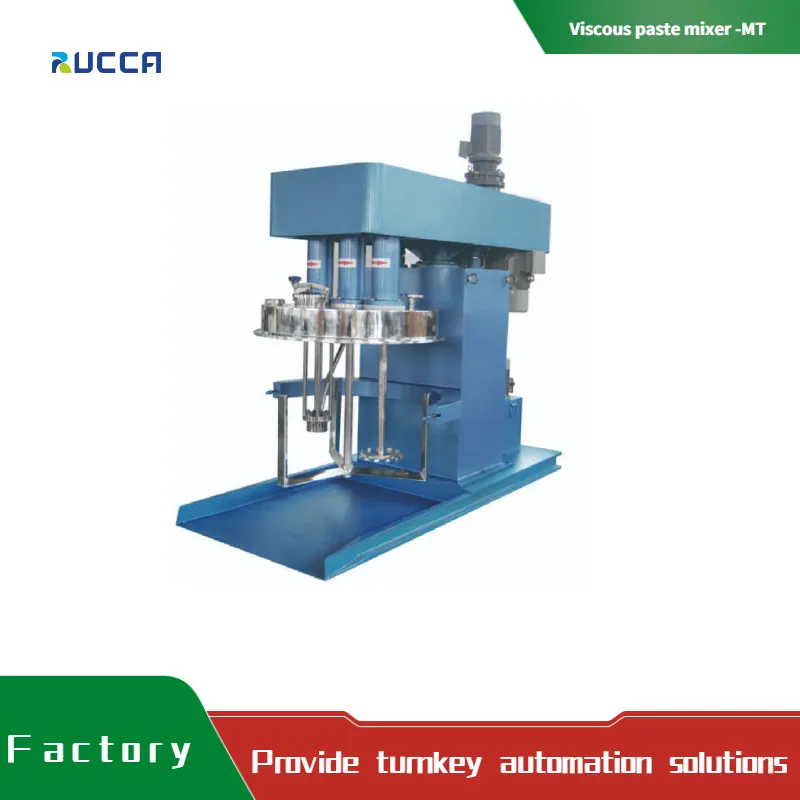

Viscous paste mixer -MT
Introduction
Three shaft mixer is a kind of powerful mixing machine with high efficient, multi-function. It is the main equipment for glass glue, and widely use in the fields of adhesive, silicone sealant, Silicone structural adhesive, black glue, weather resistant adhesive, mould proof glass glue, cosmetics, chemical product, battery, and plastic industry.ect.
Powerful mixer has three motors and three different type agitators in the tank. One of the agitators rotates on the axis of the kettle body, and the other two mixing devices rotate at a high speed around the axis of their own. Bring the product to make the complex movement in the kettle, and subjected to the intense shearing and rubs together.
The scrapper rotates around the axis in the machine kettle, scraping out the pastes from the wall and bottom,causing the effect more ideal. it can make into vacuum type. The tank cover can hydraulic lifting, tank is moveable and easy operate. The type of agitator can use multilayer blades, frame, butterfly, impellers …etc according to the products' features.
Options
▪ ATEX according to protecttive system Ex II 2 G c IIB T3
▪ Stainless steel mixing containers
▪ Double dispersing disc
▪ Vacuum design
▪ Platform balance
▪ Temperature measurement
▪ Recipe controlled semi and fully automatic PLC control
▪ With extruder/screw pump to discharge the product
Applications
▪ For different products with viscosity above 200,000 cps:
▪ Polyester putty
▪ Sealants
▪ Adhesives
▪ PU casting compound
▪ Silicone products
▪ High-viscous systems based on PU / epoxy / polysulfide
Technical datas
| Model | Capacity (m3) | Stirring power (Kw) | Stirring speed (rpm) | Dispersing power (Kw) | Dispersing speed （rpm） |
| MT500 | 500 | 4 | 50 | 11 | 1500 |
| MT1000 | 1000 | 5.4 | 50 | 15 | 1500 |
| MT1500 | 1500 | 7.5 | 50 | 22 | 1500 |
| MT500 | 500 | 4 | 50 | 11 | 1500 |
