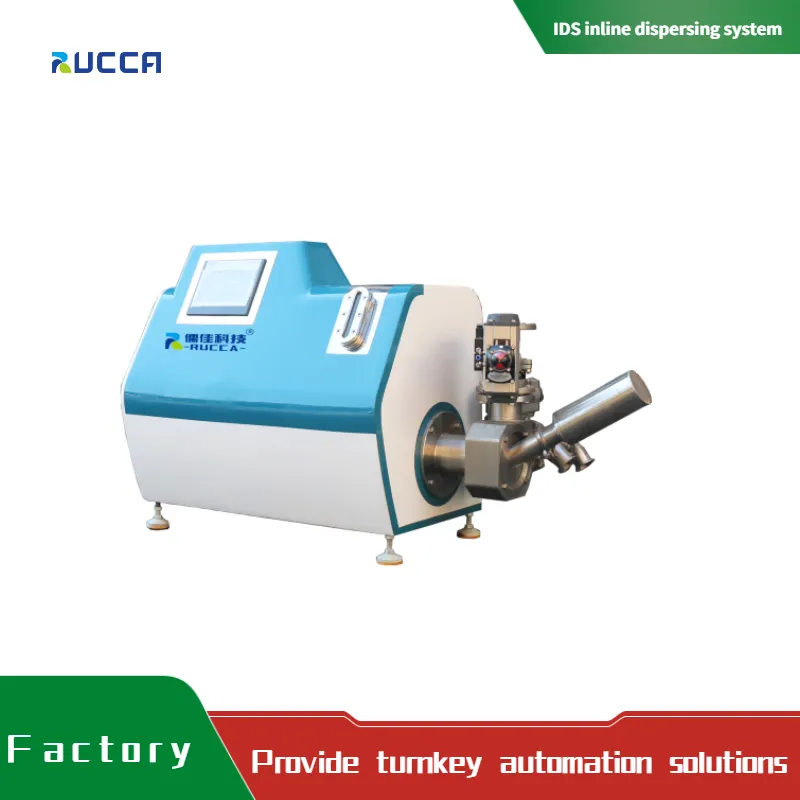

Inline dispersing system-low viscosity IDS
Introduction
Induct, wet and disperse powder
Increase the economic potential of your processes with Rucca Inline Dispersing System: Dust and loss-free container emptying, powder transport and addition, wetting and dispersion up to complete de-agglomeration can all be implemented using a single machine.
With Rucca IDS, powders are not only wetted, but dispersed in the liquid under vacuum. This inline mixing process avoids agglomeration. This offers you an optimised result with a better breakdown, higher raw materials efficiency and higher product quality.
Advantages
A special rotor-stator systemgenerates a large negative pressure and absorbs powder, without dust formation and loss-free, directly into the liquid.
Dust-free induction of powder in liquids, mixing and dispersion with a single machine
Prevention of product adhesion to the container wall or built-in components
Aspirating and dispersing of powders directly from silo (via buffer hopper), big bag, hopper, sack, barrel etc.
Easy maintenance
Particle size after dispersing may ≤ 5µm
Coming grinding step :no clogging of the separation system - trouble-free operation
Small beads can be used in bead mill,
Applications
Paints, coatings, plasters
Printing inks
Pigment pastes
Adhesives
Fillers
Sealants
PVC-pastes / floor coverings
Casting compounds
Composite materials
Cosmetic products
Technical datas
| Model | power kw） | speed rpm） | in/out pipe Dia | Flow m³/h） | Max powder suction capaacity kg/min） | Transfer height m） |
| IDS-7.5 | 7.5 | 3000 | Φ50/φ50 | 6 | 20~40 | 5 |
| IDS-11 | 11 | 3000 | φ50/φ50 | 8 | 40~70 | 7 |
| IDS-22 | 22 | 3000 | Φ76/φ76 | 13 | 70~130 | 10 |
| IDS-30 | 30 | 3000 | Φ76/φ76 | 20 | 150~200 | 10 |
| IDS-37 | 37 | 3000 | φ100/φ80 | 30 | 200~300 | 10 |
| IDS-45 | 45 | 3000 | φ125/φ100 | 40 | 300~450 | 10 |
| IDS-55 | 55 | 3000 | φ125/φ100 | 50 | 300~450 | 10 |
| IDS-75 | 75 | 3000 | φ125/φ100 | 60 | 300~450 | 10 |
| IDS-90 | 90 | 3000 | φ125/φ100 | 70 | 300~450 | 10 |
| IDS-110 | 110 | 3000 | φ125/φ100 | 80 | 300~450 | 10 |
