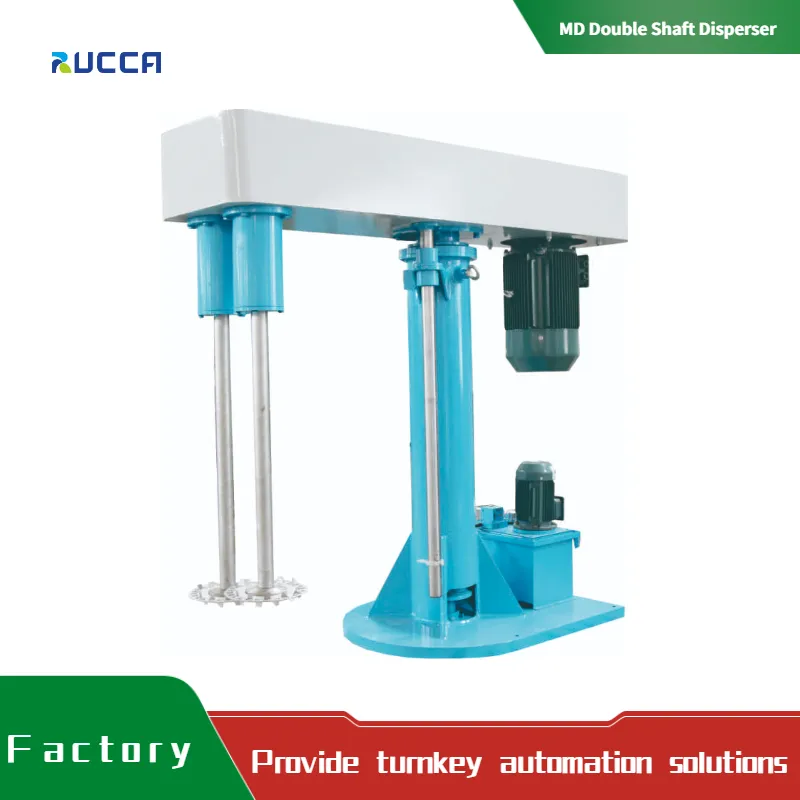

MD Double Shaft Disperser
Introduction
The series of MD high speed mixers are suitable for pro-ducing paint, ink, coating, dyestuff, paper making and so on in chemical industry. The mixers are used for wet dispersing and mixing liquid-solid material.Non-grade speed adjustment by frequency converters, hydraulic elevating, working steadily, use and maintenance expediently.
Suitable to stir and disperse two or several kinds of liquid - powderproducts
Double impellers disperse solid-liquid phase products at the sametime,effectively reduce following-up phenomenon of the products,improving dispersing effect and quality.
Features:
Floor-mounted dissolver
Use of moveable mixing containers
Production of medium to high-viscous products
Batch sizes of 30 to 5000 litres
Driving power from 1.1 to 160 kW
Drive by modern frequency converter technology or mechanical pulley-drive system
Height-adjustable toothed disc
Suitable and developed for the use in a highly-concentrated initial dispersion quantity (mill charge)
Options
ATEX according to protecttive system Ex II 2 G c IIB T3
Mixing container in mild steel and stainless steel
Double dispersing disc
Vacuum execution
Container wall scraper (rotating)
Platform balance
Cover systems
Temperature measurement and control
Recipe controlled semi and fully automatic PLC control
Applications
Paints, coatings, plasters
Printing inks
Pigment pastes
Adhesives
Fillers
Sealants
PVC-pastes / floor coverings
Casting compounds
Composite materials
Cosmetic products
Technical specs
| Model | power（kw） | Speed (rpm) | Lifting height (mm) | Pump Power （kw） | Capacity （l） | Weight （kg） | Dimensions （mm） |
| MD11 | 11 | 0~1200 | 900 | 0.55 | 100~200 | 400 | 1700*1300 *600 |
| MD30 | 30 | 0~1200 | 1200 | 0.55 | 400~600 | 800 | 1750*1800*900 |
| MD45 | 45 | 0~1200 | 1400 | 0.75 | 600~2000 | 1700 | 1700 *2200 *1100 |
| MD75 | 75 | 0~1200 | 1600 | 1.1 | 1000~2500 | 2100 | 2600*2700 *1400 |
PRODUCT CASE
After sales service:
Check site preparation, on-site installation and commissioning available by professional technical engineers;
Check equipment testing situation, communicate with customers and production department in time, solve problems until customer is satisfied;
Set up customer profiles and regularly visit customers;
Strict management of after-sales engineers, set customer satisfaction as the highest standard of after-sales service.
With 24-hour service hotline, we will promptly handle customer's problems or complaints, and quickly feedback to engineers. If necessary, we promise to provide on-site service within 48hours.
Regular on-site service, reminder service, inspection service before the end of the warranty period.
