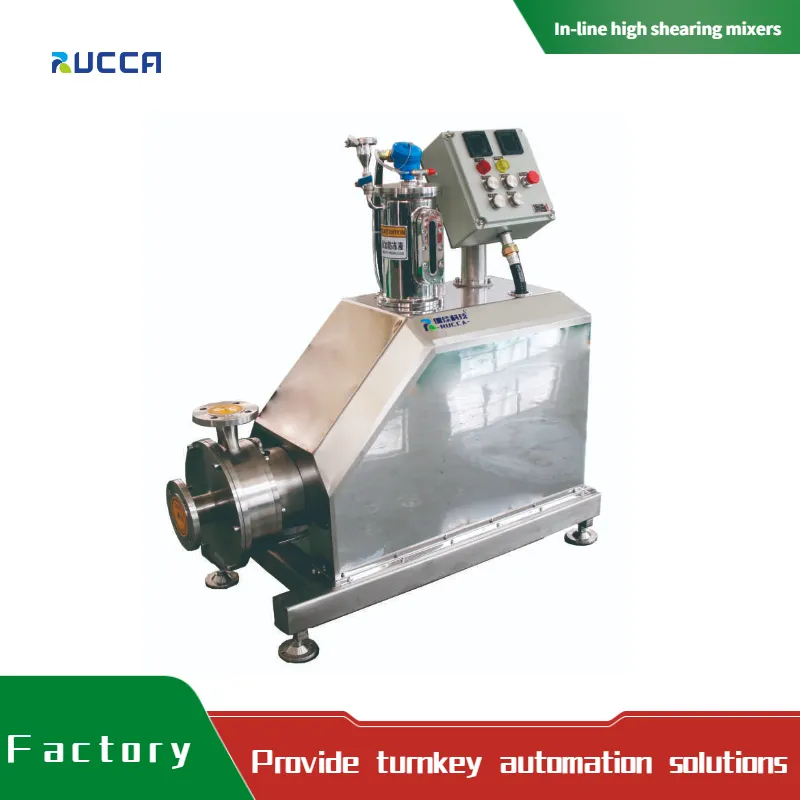

In-line high shearing mixers
Introduction
Rucca high Shear In-Line mixers are supremely efficient and rapid in operation and are capable of reducing mixing times by up to 90%. The action In-Line mixer can be modified with the use of rapidly interchangeable workheads. This enables any machine to mix, emulsify, homogenize, solubilize, suspend, disperse and disintegrate solids.
Rucca offers a range of In-Line mixers suitable for hazardous and aggressive chemical service. These robust mixers require minimal maintenance and provide some of the highest rotor tip speeds and shear rates in the industry. Self-pumping capacities from 5 to 50,000 gallons per hour.
Jacketed units are available for temperature sensitive products and construction in non-standard materials such as hastelloy, titanium and hardened steels can be offered.
The high-speed rotation of the rotor blades within the precision-machined mixing workhead exerts a powerful suction, drawing liquid and solid materials into the rotor/stator assembly.
Advantages
▪ Self-pumping
▪ No bypassing
▪ Interchangeable workheads
▪ Sanitary construction
▪ Easy maintenance
▪ Lower power requirements
▪ Eliminates agglomerates and fish eyes
▪ Creates stable emulsions and suspensions
▪ Reduces particle size
▪ Rapidly dissolves solids
▪ Accelerates reactions
Applications
▪ Fine chemical(pigment ,glue ,sealng compound,resin emulsifying,fungicide )
▪ Petroleum chemical (lubricating grease,diesel emulsifying ,asphalt modification ,catalyst)
▪ Bio-pharmacy(injection ,antibiotic,ointment,biopreparate,capsule emulsification, sugar , coating )
▪ Coating*printing inks (printing ink ,emulsion paint ,construction coating ,auto-paint)
▪ Pesticides(funigicide ,herbicide ,insecticide,emulsified oil ,fertilizer,biological pesticide)
▪ Daily chemicals (detergent ,shampoo,cream,lipsticks,cleaing facial milk,daily essence )
▪ Paper making (pulp,adhesive,resin emulsification,paper making additive,resin emulsification)
Technical datas
| Model | Power（kw） | Speed（rpm） | Capacity（m³/h） |
| ISM-15 | 15 | 3000 | 6 |
| ISM-18.5 | 18.5 | 3000 | 8 |
| ISM-22 | 22 | 3000 | 12 |
| ISM-30 | 30 | 3000 | 15 |
| ISM-37 | 37 | 3000 | 16 |
| ISM-45 | 45 | 3000 | 19 |
