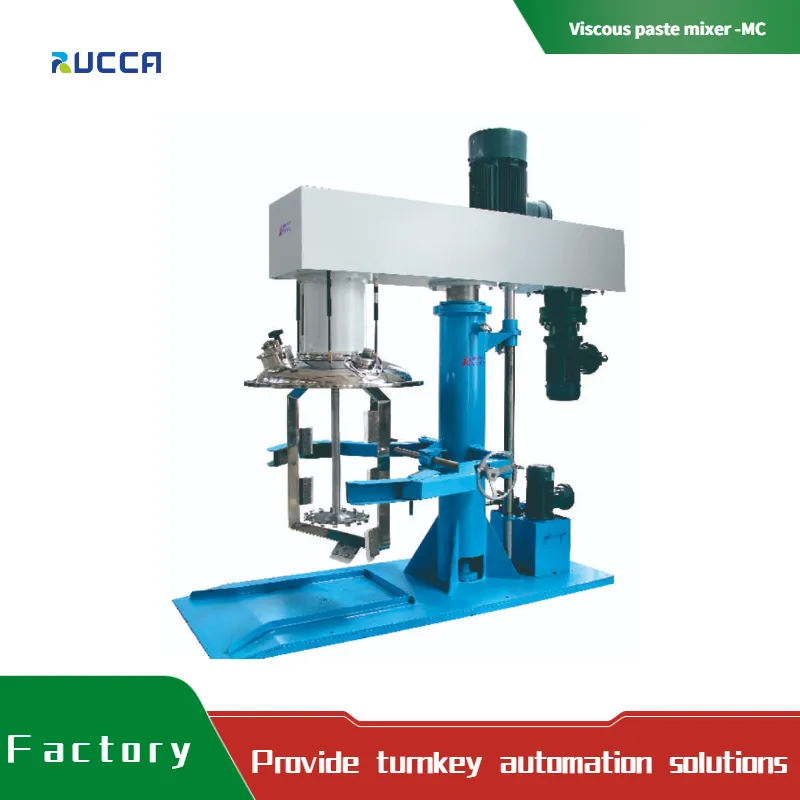

Viscous paste mixer -MC
Introduction
High efficiency dispersing and mixing equipment, consists of the scrapper agitator and high speed disperser, two sets of agitators working at the same time, mixing the material rapidly under the action of strong shearing and mixing force. According to different viscosity, density and products formulation, different agitators (frame type, half-frame type) and dispersing disc (double disc/ single disc/ Niemann disc) are optional.
There are teflon scrapers on the agitator, it clings to the container and scrape the materials on the wall off continuously. The container inner wall is precisely lathed and then mirror polished to ensure the scraper can scrape all materials sticking to the wall off without residue, improving the mixing efficiency.
* Machine also available in single shaft execution without dissolver shaft
Options
▪ ATEX according to protecttive system Ex II 2 G c IIB T3
▪ Stainless steel mixing containers
▪ Double dispersing disc
▪ Mixing shaft scraper
▪ Vacuum design
▪ Platform balance
▪ Temperature measurement
▪ Recipe controlled semi and fully automatic PLC control
▪ With extruder/screw pump to discharge the product
Applications
▪ For different products with viscosity up to 100,000 cps:
▪ Water based coating
▪ Wall putty
▪ Printing inks
▪ Sealants
▪ Adhesives
Technical datas
| Model | MC150 | MC-300 | MC500 | MC1000 | MC1500 |
| Mixer motor (Kw) | 4 | 5.5 | 7.5 | 11 | 15 |
| Mixer Speed (rpm) | 40 | 25 | 25 | 25 | 25 |
| Dissolver motor (Kw) | 11 | 15 | 22 | 37 | 55 |
| Dissolver speed (rpm) | 1500 | 1500 | 1500 | 1500 | 1500 |
| Capacity (L) | 150 | 300 | 500 | 1000 | 1500 |
PRODUCT CASE
After sales service:
Check site preparation, on-site installation and commissioning available by professional technical engineers;
Check equipment testing situation, communicate with customers and production department in time, solve problems until customer is satisfied;
Set up customer profiles and regularly visit customers;
Strict management of after-sales engineers, set customer satisfaction as the highest standard of after-sales service.
With 24-hour service hotline, we will promptly handle customer's problems or complaints, and quickly feedback to engineers. If necessary, we promise to provide on-site service within 48hours.
Regular on-site service, reminder service, inspection service before the end of the warranty period.
