Help CenterRotary Dryer for Coco Peat and Wood Fiber Drying 80 Tpd
Product Spotlights
2.Customizable mineral powder drying line
3.Easy installation & maintenance
4.Global mining project compatible
5.Uniform final moisture control
6.No over-drying mineral powder
7.Adjustable drying temperature
8.Consistent dried powder quality
9.Fine mineral powder drying protection
Related Products
-
Rotary Dryer for Forestry Residue Biomass Drying 200 TpdNegotiableMOQ: 1 Set -
Rotary Dryer for Sawmill Waste Recycling Plant 150 TpdNegotiableMOQ: 1 Set
-
Rotary Dryer for Biomass Pellet Fuel Pre-treatment 250 TpdNegotiableMOQ: 1 Set
-
Rotary Dryer for Agricultural and Wood Waste Blend 100 TpdNegotiableMOQ: 1 Set
-
Bentonite Rotary Drum Dryer by 20TPH to 80TPHNegotiableMOQ: 1 Set
Product Introduction
This 80 tpd rotary dryer for coco peat and wood fiber drying is a professional medium-large capacity continuous drying equipment tailored for coco peat and wood fiber mixed material processing scenarios. It adopts a special anti-caking and anti-fiber-winding structure adapted to the characteristics of high hygroscopicity, easy caking and high fiber content of the mixed materials, with a daily processing capacity of 80 tons of wet raw materials. It can reduce the moisture content of raw materials from 55%~70% to the stable 10%~15% required for subsequent processing at one time, and the dried finished materials can be directly used for soilless culture substrate, high-density board, greening covering material processing and other high-value scenarios. It is the core drying equipment to ensure the stable quality of coco peat and wood fiber products.
Working Principle

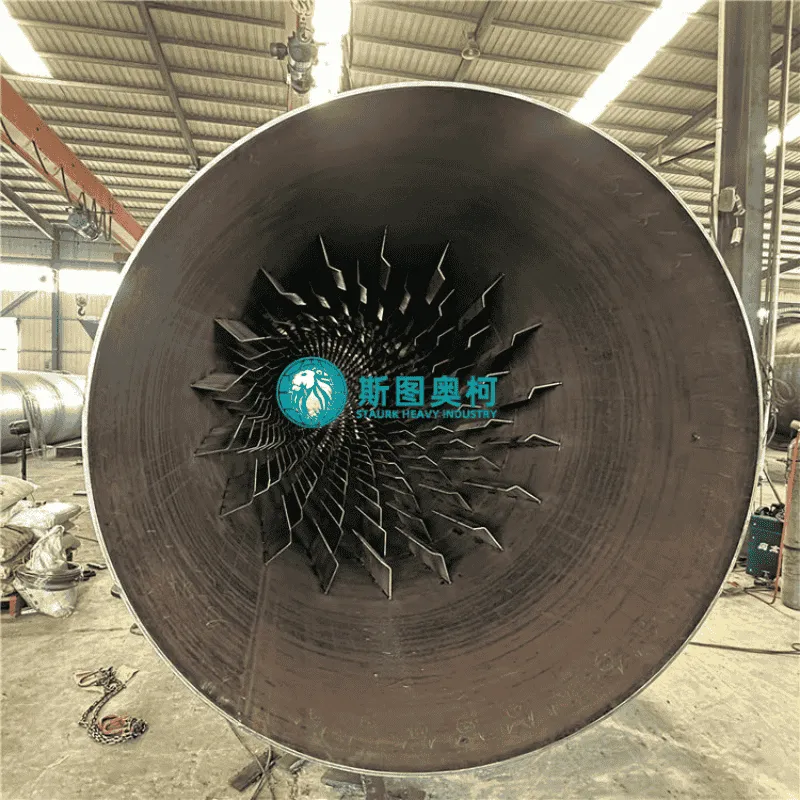

The obliquely installed reinforced multi-cylinder insulation main body is driven by a high-torque transmission system to rotate at a low and uniform speed. The wet coco peat and wood fiber mixture is fed into the inner cylinder, and the materials are continuously lifted and scattered by the built-in special anti-caking and anti-winding lifting plates as the cylinder rotates, fully contacting with the clean hot air flow. The moisture in the mixed materials is evenly evaporated through the multi-stage temperature control zones, and the dried materials that meet the product moisture standard are stably discharged from the discharging end, completing the 80-ton daily continuous drying process.
Core Features
This 80 tpd model has multiple targeted advantages for coco peat and wood fiber drying. The special anti-caking structure effectively solves the problem of material agglomeration and uneven drying easily caused by high-hygroscopicity coco peat. The anti-fiber-winding design completely avoids the material clogging problem of high-fiber wood fiber. The multi-cylinder insulation structure greatly improves the thermal efficiency, reducing the energy consumption per ton of mixed materials by more than 25% compared with ordinary single-cylinder dryers. The 80-ton daily processing capacity perfectly matches the production rhythm of large horticultural substrate and comprehensive wood processing enterprises.
Technical Specifications
| Product Specs (m) | Capacity (T/H) | Main Motor Power (kW) | Main Motor Model | Main Gearbox Model | Ratio |
| φ1.2×10m | 2.5 | 7.5 | Y160M-R3 | ZL50-16-1 | - |
| φ1.5×12m | 3.3 - 4.9 | 10 | Y160L-6B3 | JZQ500-III-2F | - |
| φ1.5×15m | 4 - 6 | 18.5 | Y200L-6 | JZQ500-III-2F | - |
| φ1.8×12m | 4 - 6 | 11 | Y200L-6 | ZQ50-16II-2 | 16.46 |
| φ2.2×12m | 7 - 12 | 18.5 | Y160L-6 | JZQ650-III | 31.5 |
| φ2.2×14m | 7 - 12 | 18.5 | Y160L-6 | JZQ750-III | 31.5 |
| φ2.2×16m | 12 | 30 | Y225M-6 | JZQ750-III | 31.5 |
| φ2.4×14m | 12 | 30 | Y250M-6 | JZQ750-III | 31.5 |
| φ2.4×18m | 10 - 13 | 37 | Y250M-6 | ZL85-13-1 | 27.16 |
| φ2.4×20m | 10 - 14 | 37 | Y250M-6 | ZL85-13-1 | 27.16 |
| φ3×20m | 25 | 55 | Y250M-4 | ZL100-16-1 | 41.52 |
| φ3×25m | 32 - 36 | 75 | YR280M-4 | ZL100-16-1 | 41.52 |
