Industrial Silica Sand Dryer — Product Manual

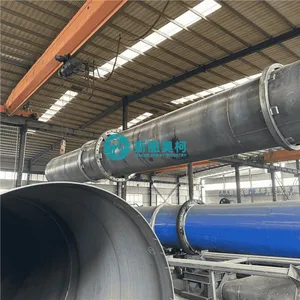

Product Description
The Industrial Silica Sand Dryer is a large-scale, continuous rotary drying system customized for high-hardness mineral particles, including quartz sand, silica sand, foundry sand, glass-making sand, ceramic sand, and construction sand. This equipment serves as an indispensable core asset in the silica sand deep-processing industry chain, widely applied across foundry sectors, glass manufacturing, ceramic production, chemical fillers, building material processing, and petroleum fracking proppants.
The system is engineered to dry wet silica sand with an initial moisture content of 15% to 30% down to below 1% in a single pass, with the capability to strictly lock final moisture under 0.5% to fully satisfy the most stringent downstream process requirements. Single-line processing capacities cover a broad span from 1 TPH to 50 TPH. Tailored, customized designs are available to perfectly match the operational scales of both small-scale independent foundries and massive multinational glass manufacturing conglomerates.
Build & Control Quality
The main shell of the entire machine is fabricated from premium carbon steel or high-temperature resistant alloy steel. Critical high-wear components—including the lifting flights, shuffling plates, and internal drum walls—are heavily armored with high-manganese steel, wear-resistant cast steel, or silicon carbide (SiC) ceramic linings to easily withstand the severe abrasiveness of high-hardness silica sand.
Equipped with a PLC intelligent temperature control system and a variable frequency drive (VFD) motor, the equipment allows operators to flexibly adjust the drum rotational speed, hot air temperature, and feed rate in real time. This ensures that even with fluctuations in raw material moisture, particle size distribution, and feed speed, the silica sand grains receive uniform thermal exposure—preventing clumping, overheating, and discoloration while ensuring consistent batch-to-batch product quality.
Modular Configuration
The entire line utilizes a highly efficient modular architecture. Each functional unit (enclosed feeding system, main drying drum, discharge system, dust collection system, heat source, and electrical control system) is independently pre-assembled at our factory. This plug-and-play field assembly shortens the on-site installation and commissioning cycle to just 7 to 15 days, significantly accelerating your project's time-to-market.
Functional Principle
Wet silica sand is uniformly introduced into the slightly inclined, rotating drum via a belt conveyor or bucket elevator. The drum rotates slowly at an adjustable speed of 2 to 8 rpm and is set at a 3° to 5° inclination angle relative to the horizontal plane. This geometric design uses the joint forces of gravity and mechanical rotation to smoothly advance the material from the elevated feed end toward the lower discharge end.
The interior of the drum features multiple sets of specialized lifting flights (also known as shuffling plates or guide flights) welded along the axial direction, boasting cross-sections optimized via fluid dynamics. As the drum rotates, these flights continuously scoop up the silica sand from the bottom and shower it downward, creating a highly uniform "material curtain" across the entire cross-section of the drum to maximize exposure to the high-temperature hot air. As the sand particles repeatedly lift and cascade, their surface moisture evaporates rapidly.
Counter-Current Thermal Efficiency
The high-temperature hot air generated by the heat source system (ranging from 200°C to 800°C, adjustable based on process needs) is injected from the discharge end, creating a counter-current heat exchange layout where the airflow moves opposite to the material path.
This configuration ensures that the hottest air first contacts the driest sand right before discharge, while the lower-temperature, spent air contacts the incoming high-moisture wet sand.
This maximizes the thermal energy differential, pushing comprehensive thermal efficiency to 70% and above.
The humid, spent exhaust gas is drawn out from the feed end, routed through a dual-stage cyclone dust collector + pulse baghouse dust collector system for compliance filtration, and safely discharged. The thoroughly dried silica sand is continuously evacuated from the outlet via an airtight discharge valve.
The entire drying cycle occurs under a continuous micro-negative pressure environment, completely preventing silica sand dust from escaping into the workshop while protecting the material inside from secondary contamination by external ambient dust.
Product Features
1. High Efficiency and Exceptional Energy Savings
Utilizing counter-current drying technology, the opposing paths of hot air and material optimize thermal transfer. This achieves a comprehensive heat utilization rate of over 70%, delivering a 30% to 40% energy savings compared to conventional co-current dryers. When configured with natural gas, the energy consumption required to evaporate 1 ton of water is compressed to just 80 to 120 m³, offering an undeniable operational cost advantage. Select models can also be fitted with a waste heat recovery system to preheat incoming fresh air or combustion-supporting air using exhaust heat, driving utilities down even further.
2. Intelligent Temperature Control with High Precision
The integrated PLC architecture pairs with multi-point thermocouples to map out real-time temperature distributions across different zones inside the drum, managing discharge temperatures to an accuracy of ±5°C. The touchscreen HMI supports intuitive human-machine interaction, allowing operators to save and execute automated drying temperature curves. This eliminates the risk of human error causing material overheating, discoloration, or crystal structure degradation—making it uniquely suited for premium glass-grade and electronic-grade silica sand production.
3. Ultra-Wear-Resistant Build for Extended Lifespan
Silica sand has a Mohs hardness of 7, making it highly abrasive and damaging to standard equipment linings. To counter this, our drum interiors utilize a dual-layer defense system consisting of high-manganese steel castings reinforced with silicon carbide ceramic tiles. Furthermore, the internal lifting flights are cast as single pieces from wear-resistant alloy steel. All high-impact wear zones are designed for independent, localized replacement so you never need to replace the entire assembly. Under normal operating conditions, core wear parts deliver a lifespan of 8,000 to 12,000 hours, drastically slashing maintenance frequency and downtime losses.
4. Continuous, 24/7 Automated Operation
The system is built for non-stop, 24-hour continuous production, automating the entire sequence of feeding, drying, and discharging without requiring mid-cycle shutdowns for flipping or manual cleaning. Output volume fluctuations are restricted within ±5%, making the unit ideal for direct inline integration with upstream crushing/screening systems and downstream packaging lines to form a seamless, fully automated silica sand production plant.
5. Eco-Friendly Compliance with Zero Dust Leakage
The entire machine operates under strict micro-negative pressure, with heavy-duty mechanical seals at both the inlet and outlet junctions. Working in tandem with a dual-stage cyclone separator (First Stage) + pulse baghouse dust collector (Second Stage), final particulate emissions are suppressed below 30 mg/m³—far exceeding global environmental standards. Additionally, the fine dust captured by the collectors is automatically recycled back into the finished product line, pushing the total material recovery rate above 99% to eliminate raw material waste.
6. Broad Material Adaptability and Multi-Purpose Utility
The dryer accommodates particle sizes from 0.1 mm to 5 mm and initial moisture contents from 5% to 35%. It is highly versatile and fully compatible with river sand, manufactured sand (M-sand), mineral powders, fly ash, distillers' grains, and sawdust. When switching materials, operators only need to recalibrate the drum speed, temperature, and airflow parameters through the touchscreen—no structural modifications required—allowing a single machine to serve multiple production roles.
7. Compact Footprint and Rapid Installation
Thanks to the pre-engineered modular design, all functional units arrive at your site ready for rapid assembly, minimizing necessary civil foundation work. The complete installation and commissioning window spans only 7 to 15 days before full production can begin. Compared to traditional drying configurations of equivalent output, this system reduces the physical floor space requirement by 20% to 30%, making it an ideal choice for small-to-medium enterprises with restricted site dimensions.
8. Comprehensive Multi-Layer Safety Protections
The line is equipped with an array of automated safety mechanisms, including over-temperature protection, motor overload protection, material-starvation alarms, continuous bearing temperature monitoring, and easily accessible emergency stop buttons. The hot air furnace features an automatic gas shut-off safety valve in the event of flameout, and the electrical control system features built-in automated fault self-diagnostics. The highly simplified operational layout requires only 1 to 2 operators per shift to manage daily production.
Tailored Optional Configurations
To align perfectly with your exact infrastructure and process requirements, we offer a rich selection of optional add-ons:
Alternative Heat Sources: Natural gas burners, biomass pellet burners, steam heat exchangers, electrical heating elements, or thermal oil furnaces.
Inline Moisture Analyzers: Real-time near-infrared moisture sensors integrated at the outlet for automated, hands-free moisture verification.
Cooling Drums: Secondary rotary cooling units linked to the discharge end to rapidly bring sand temperatures down for immediate automated packaging and storage.
Get a Custom Engineering Proposal Within 24 HoursPlease share your initial moisture content, target final moisture, hourly or daily capacity requirements, preferred fuel types, and site dimensions. Our engineering team will deliver a comprehensive technical proposal and commercial quotation within 24 hours. Factory direct supply with zero middleman markups—contact us today to schedule your factory visit!
Technical Specifications
| Product Specs (m) | Capacity (T/H) | Main Motor Power (kW) | Main Motor Model | Main Gearbox Model | Ratio |
| φ1.2×10m | 2.5 | 7.5 | Y160M-R3 | ZL50-16-1 | - |
| φ1.5×12m | 3.3 - 4.9 | 10 | Y160L-6B3 | JZQ500-III-2F | - |
| φ1.5×15m | 4 - 6 | 18.5 | Y200L-6 | JZQ500-III-2F | - |
| φ1.8×12m | 4 - 6 | 11 | Y200L-6 | ZQ50-16II-2 | 16.46 |
| φ2.2×12m | 7 - 12 | 18.5 | Y160L-6 | JZQ650-III | 31.5 |
| φ2.2×14m | 7 - 12 | 18.5 | Y160L-6 | JZQ750-III | 31.5 |
| φ2.2×16m | 12 | 30 | Y225M-6 | JZQ750-III | 31.5 |
| φ2.4×14m | 12 | 30 | Y250M-6 | JZQ750-III | 31.5 |
| φ2.4×18m | 10 - 13 | 37 | Y250M-6 | ZL85-13-1 | 27.16 |
| φ2.4×20m | 10 - 14 | 37 | Y250M-6 | ZL85-13-1 | 27.16 |
| φ3×20m | 25 | 55 | Y250M-4 | ZL100-16-1 | 41.52 |
| φ3×25m | 32 - 36 | 75 | YR280M-4 | ZL100-16-1 | 41.52 |
