Help CenterPTFE Packing Acid and Alkali Resistant Food Pump and Valve Sealing Packing
Related Products
-
Adhesive-backed PTFE Sealing Strip; Rough Irregular Flange Filling SealNegotiableMOQ: 100 Kilograms -
PTFE Gasket, Polytetrafluoroethylene Sealing Gasket, White Teflon Flat Gasket, High Temperature and Acid/alkali Resistant Industrial Flange WasherNegotiableMOQ: 25 Units
-
Elastic Expanded PTFE Gasket Soft Teflon Gasket Pipe Flange Sealing Gasket High and Low Temperature Corrosion Resistant Ready Stock Custom MadeNegotiableMOQ: 25 Units
-
PTFE Sheet; High-temperature and Acid/alkali Resistant Teflon Sheet; Zero-cuttableNegotiableMOQ: 100 Kilograms
-
NAS Non-asbestos Gasket High Temperature and Oil Resistant Eco-friendly Flange Sealing GasketNegotiableMOQ: 100 Blades

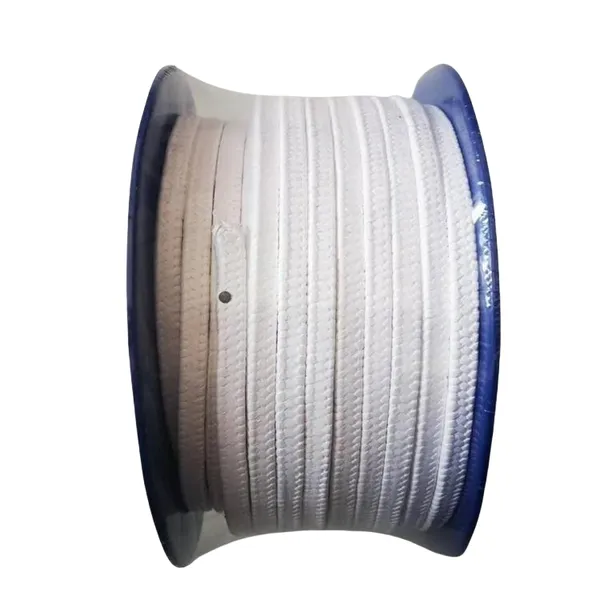

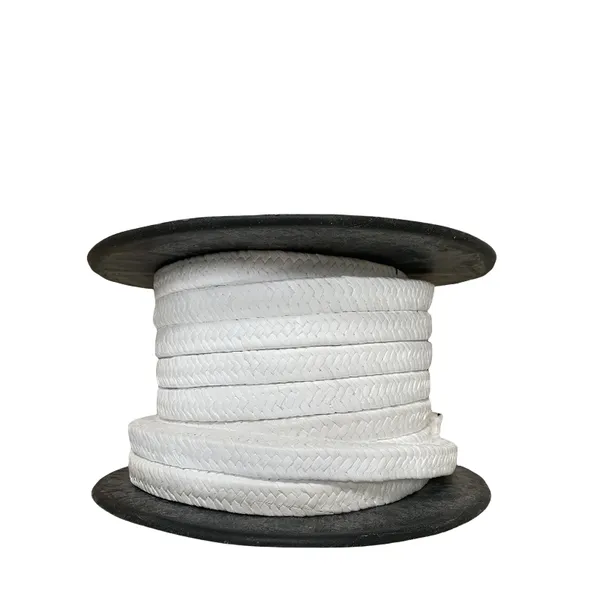

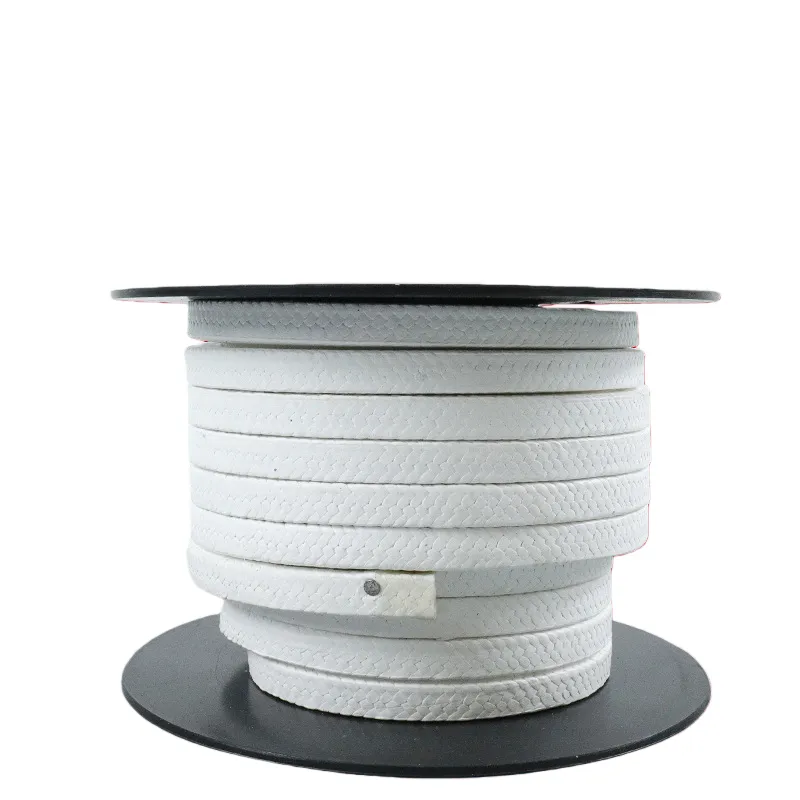

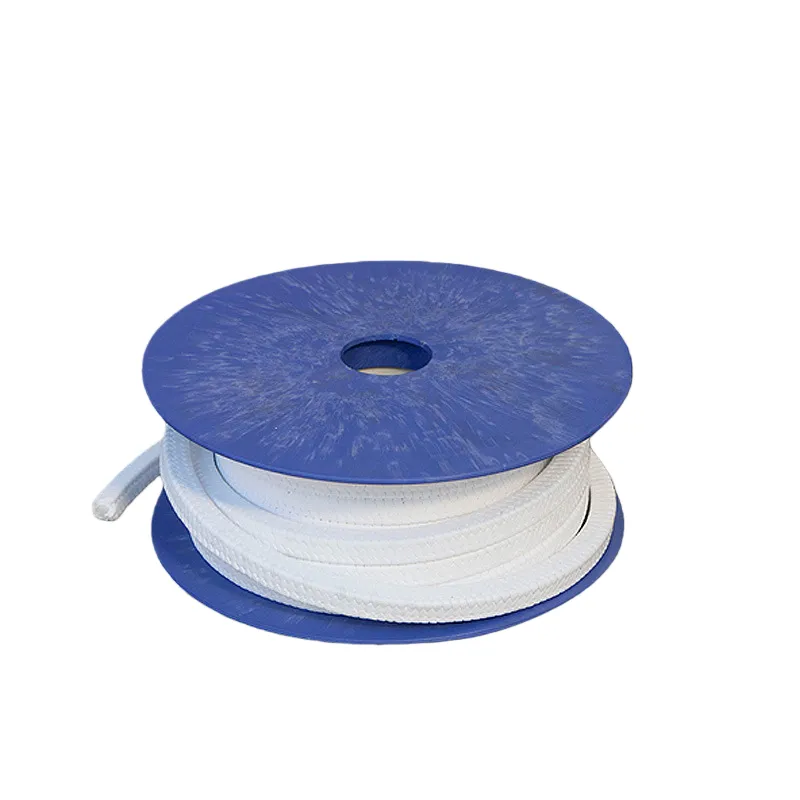

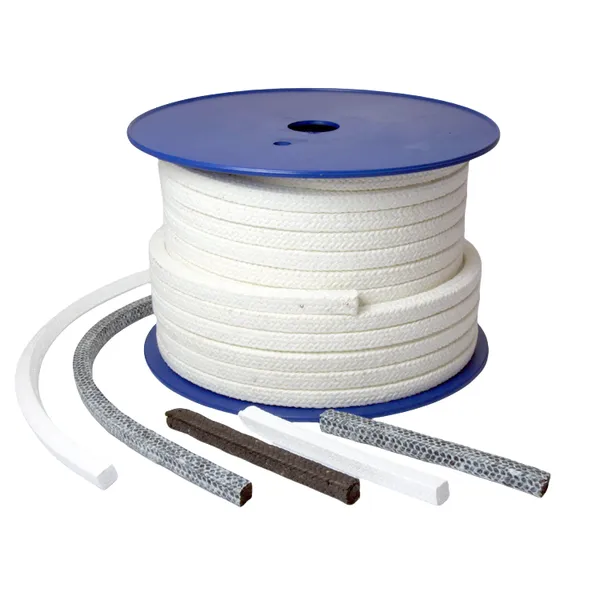

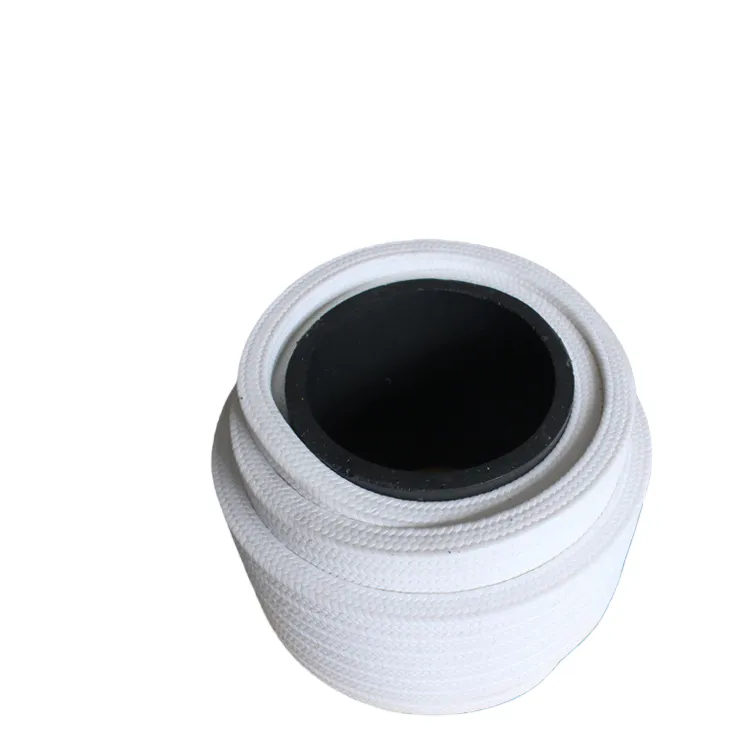

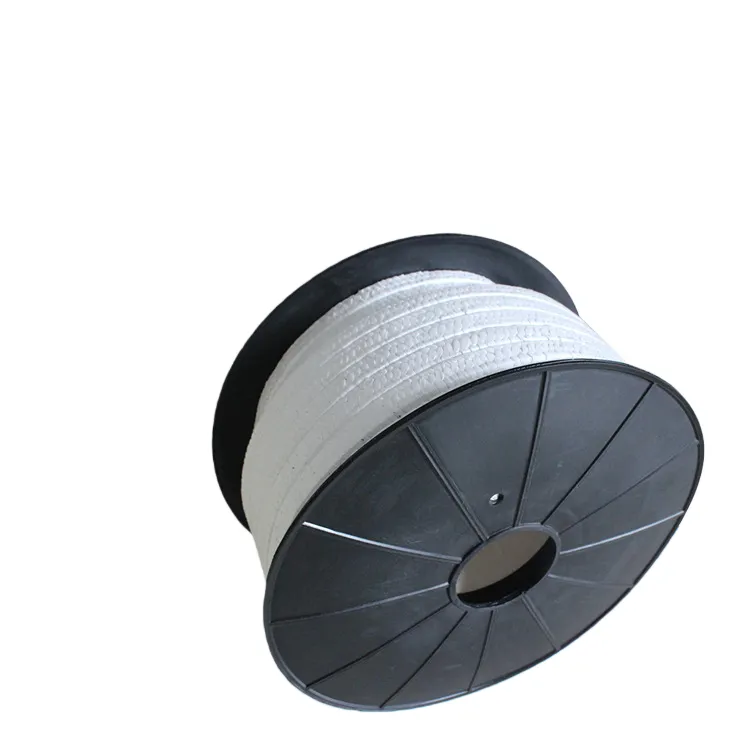

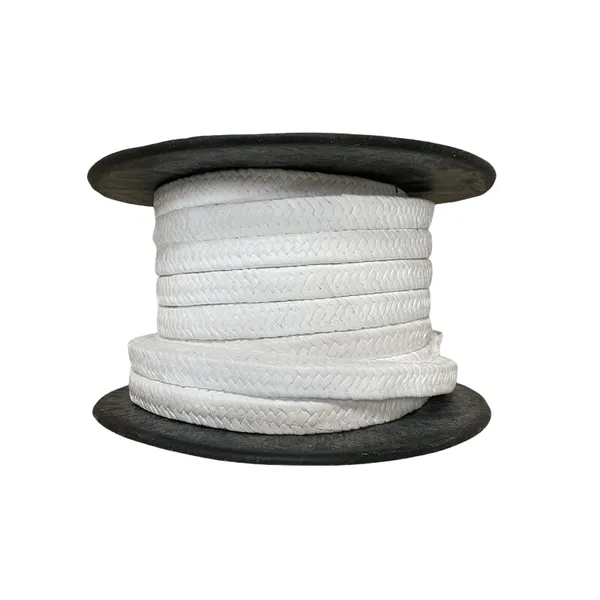

I. Product Introduction PTFE braided packing, also known as PTFE polytetrafluoroethylene braided packing Teflon sealing filler, is machine-braided from high-purity polytetrafluoroethylene fibers. It is available in multiple varieties: oil-free pure white, silicone oil-pregnated, graphite-split-fiber, and aramid-interwoven. Relying on the superior corrosion resistance of PTFE, it is compatible with highly corrosive media such strong acids, strong alkalis, and organic solvents. It is a specialized dynamic sealing filler for the shaft ends of chemical pumps, agitator tanks, valves, and food/pharm equipment. It is asbestos-free and pollution-free, can be cut into packing rings, and is easy to install and replace. II. Distinction of Four Mainstream Varieties . Oil-free Pure White PTFE Packing (Specialized for Food and Pharmaceuticals) 100% pure PTFE fiber, no silicone oil or graphite additives, no exudation, and contamination of materials; resistant to various acids and alkalis, pure water, and food raw materials. Suitable for food machinery, pharmaceutical reaction tanks, pure water transport pumps, and beverage. 2. Oil-impregnated White PTFE Packing (General Chemical Industry Type) Impregnated with silicone oil after braiding, it comes with built-in lubrication, lower friction coefficient, and prevents shaft wear; compatible with weak acids and alkalis, sewage, and conventional chemical media. A cost-effective choice for centrifugal pumps, sewage pumps, ordinary valves. 3. Graphite-split-fiber Black PTFE Packing (High-Temperature Wear-Resistant Type) Braided from a mixture of PTFE fibers and graphite fibers it features good thermal conductivity, extremely strong self-lubrication, and high-temperature resistance; designed for high-pressure, high-temperature, and particulate-containing media conditions, as well as agitator tanks, high-temperature chemical pumps, and heavy-duty valve stems, offering a longer service life. 4. Aramid-interwoven /ramid-wrapped Black PTFE Packing (High-Pressure Heavy-Duty Type) Reinforced with aramid fibers at the edges, it is resistant to tension, wear, and extrusion Suitable for high-pressure pumps, media containing small amounts of particles, and high-speed agitator shafts. It is resistant to fraying and erosion, making it the preferred choice for-duty equipment. III. Core Product Advantages ✅ Strong Corrosion Resistance, Universal for All Media PTFE has extremely strong chemical inertness and will not be corroded by hydrochloric sulfuric acid, caustic soda, organic solvents, electroplating solutions, or seawater. It can be used in corrosive pipelines where ordinary graphite packing or cotton yarn packing cannot adapt. ✅ High and Temperature Resistance, Wide Operating Range Long-term operating temperature ranges from -200°C to 260°C. It does not harden at low temperatures or melt at temperatures, providing continuous and stable sealing for equipment with alternating hot and cold cycles. ✅ Low Friction Protects the Shaft, Self-lubricating Prevents Wear The texture is and smooth, preventing scratches on pump shafts and valve stems; the oil-impregnated and graphite varieties come with built-in lubrication, resulting in low operating resistance, low noise, and bushing wear. ✅ Food-Grade Cleanliness, No Impurity Contamination The oil-free pure white variety has no graphite or silicone oil exudation, meeting food contact standards. It not contaminate raw materials when used in pharmaceutical, beverage, and pure water equipment. ✅ Dense Braiding, Leak-proof and Erosion-resistant The precision multi-layer braided structure the fibers are tightly packed and do not easily fray. It can block liquid and gas leaks, and slight particulate media will not easily erode the packing gaps. ✅ Environmentally Friendly and Asbestosfree, Compliant and Safe It does not contain asbestos or other carcinogenic materials. Workshop processing produces no harmful dust, meeting environmental and safety supervision requirements, ensuring no compliance risks for engineering procurement.✅ Flexible Processing, Convenient Installation Available in stock with cross-sections ranging from 4×4 to 25×25mm. Shipped in full rolls, it can be cut to any length needed, or processed into finished packing rings for direct installation into the stuffing box.
