UL20554(P) 80℃ 30V PUR Servo Encoder Cable (Shielded)
· Can be used for welding, crimping, cutting, and clamping
Data transmission cables, control and connection cables certified by UL & CUL, mainly used as connection cables between servo controllers and encoder resolvers. Suitable for fixed installation and
Suitable for low-speed mobile applications without a clear cable path and no tensile stress. Internal wiring or external interconnection of electronic devices in the circuit, suitable for use in dry and wet indoor environments.
Conductor material: Bare copper or tinned copper
Conductor class: Complies with UL758 standard, DIN VDE 0295 Class 5 conductor or IEC 60228 Class 5 conductor
Core insulation: PVC, HDPE optional
Core identification: ＜0,5 mm²: For 5 cores and below, color-coding is used for differentiation, complying with n.DIN 47100. For multi-core cables with more than 5 cores, color-coding of cores and white ink dots are used for differentiation;
≥0,5 mm²: For 5 cores and below, color-coding is used for differentiation, including yellow/green ground wire, complying with n. DIN 47100. For multi-core cables with more than 5 cores, black cores are used, and
white ink numbering is used for differentiation (customized on demand if there are special requirements)
Stranding: Layered stranding
Outer sheath: PUR
Outer sheath color: Gray RAL7001, Black RAL9005, Green RAL6018
Rated voltage: 30V
Test voltage: 500V
Conductor resistance: UL1581 ASTM Class C
Minimum bending radius (fixed): 7.5xd
Minimum bending radius (mobile): 15xd
Operating temperature (fixed) minimum/maximum: -15°C/+80°C
Temperature rating: Minimum/maximum for mobile use: -5°C/+80°C
Flame retardant rating: Self-extinguishing and flame retardancy comply with VW-1; FT1; FT2; IEC 60332-1 standards
Certifications: UL & CUL: UL1571, UL1589, UL20554. If CE certification or halogen-free requirements are needed, please specify separately.

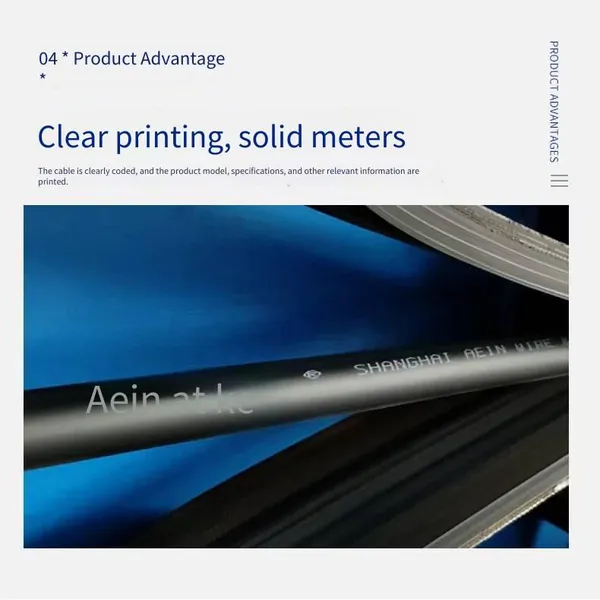

Product identification: Aein beikeE503807 AWM Model Specification Temperature Voltage AWM I/I A/B Specification Temperature Voltage FT2 SHANGHAI AEIN
· Complies with RoHS standard
· Complies with 2014/35/EU - Directive ("Low Voltage Directive") CE
· Customization is acceptable for products with special structures, other sizes, and colors of core wires and sheaths.
Our advantages
Shanghai Aiyin Electric Wire & Cable Co., Ltd. Sichuan Branch has a modern production base integrating production, quality inspection, and development. The entire production and operation process of the company strictly adheres to the requirements of the ISO9001:2000 Quality Management System Standard to implement comprehensive quality control, thus ensuring product quality. The products produced by our company meet international standards and can directly replace foreign products. You can own international-level products at a reasonable price.
The main products produced by our company include: Drag chain cables, robot cables, servo cables, braider cables, highly flexible control cables, UL-certified cables, EAC customs-certified cables, CE-certified cables, SAA Australian standard-certified cables, TUV German standard-certified cables, Japanese standard cables, traveling crane cables, reel cables, signal cables, crane cables, oil-resistant cables, cold-resistant cables, bucket wheel machine cables, overhead crane cables, marine cables, zero-buoyancy cables, armored cables, RS-485, corrosion-resistant、Acid and alkali resistant cables、Control cables、BUS Bus、National standard CCC cables、PUR Polyurethane cables、Self-supporting steel cable and elevator cables、Cables for electrical installation、Special cables etc. After years of development, Shanghai Aiyin Electric Wire & Cable Co., Ltd. Sichuan Branch has won the recognition of a large number of users with its good reputation and high-quality products.
