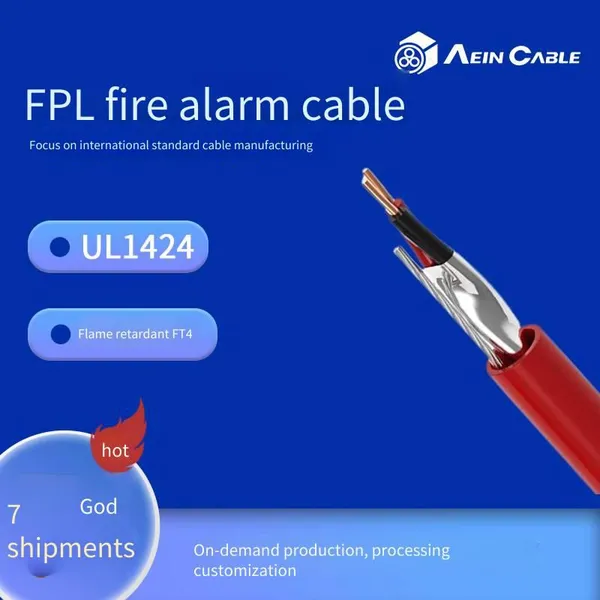

FPL 105℃ 300V PVC Fire Alarm Cable (Aluminum Foil, Drain Wire)

Fire cables are mainly used for emergency lighting, fire observation, signal sensing systems, blower systems, communication calling systems, control equipment systems, fire pumps, and electrical circuits in fire alarm systems.


Such as: school offices, airports, tunnels, railway stations, computers, alarm systems, traffic control systems, fire protection systems, etc.


Conductor material: Solid pure copper conductor, 7-stranded conductor


Conductor grade: Complies with IEC 60228 cl. 1 standard, Complies with IEC 6028 cl.2 standard


Core insulation: PVC


Insulation diameter: 0.1249+0.0040" nominal (3.17±0.10mm)


Drain wire: Tinned copper (optional)


Shielding: Aluminum foil (optional)


Outer sheath: PVC


Sheath color: Red or white, etc.


Sheath diameter: 0.3207+0.0118" (8.1±0.3mm)


Test voltage: DC: 2500V/2S, no breakdown



Maximum resistance: 5.31 Ohms/KM at 20°C


Minimum insulation resistance: 100 MΩ/KFT at 15.6°C


Working voltage: 300V


Temperature grade: -20°C/+105°C


Standard: Both insulation and sheath comply with UL1581


Flame spread: UL2556 (Single insulation)


Flame spread: UL1666 (Multiple cables)


· Standard: UL1424/NEC Article 760


· Compliance: FPLR/CMR/CL3R, Flame test UL1666


· Customization is acceptable for products with special structures, other sizes, and colors of cores and sheaths.
