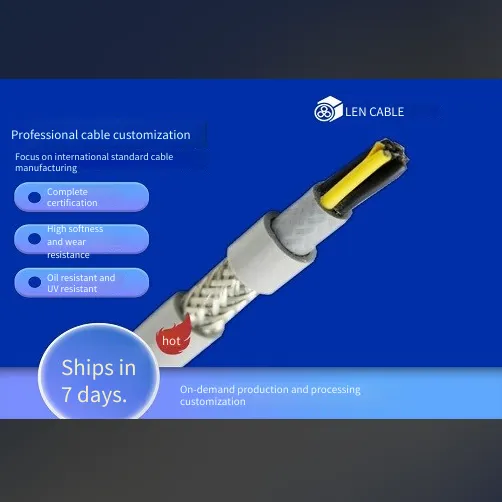

AC-FLEX813 -30+90℃ 300/500V Twisted Pair Double Sheathed Shielded Drag Chain Cable (8 million times)
· Oil resistance complies with DIN EN 60811-404 for 4 hours + 100°C
· UV, ozone resistance and weather resistance comply with EN 50396 and HD 605 S2
. Resistant to coolant, microorganisms, weak acids and alkalis
Widely used for signal and control in drag chain systems such as automated CNC machining and servo motors or servo encoders. Copper wire shielding that meets EMC requirements,
Prevents electromagnetic interference. It can also be applied to dry and wet indoor and outdoor environments, as well as fields such as cranes and conveying facilities, and data transmission, measurement,
Feedback, encoder, resolver, tachometer, signal and system applications in automated production processes.
Conductor material: Bare copper
Conductor class: Complies with DIN VDE 0295 Class 6 conductor or .IEC 60228 Class 6 conductor
Core insulation: PVC-J-105-003(2105-LF)
Core identification: 2: For 5 cores and below, color coding is used for differentiation, complying with n.DIN 47100. For multi-core cables with more than 5 cores, color coding of cores and white ink dots are used for differentiation;
≥0.5 mm2: For 5 cores and below, color coding is used for differentiation, including yellow/green ground wire, complying with n.DIN 47100. For multi-core cables with more than 5 cores, black cores are used,
Differentiated by white ink numbering (customized according to special requirements if needed)
Power cable: Black sheath with white printing U/L1;V/L2;W/L3;GN/PE
Cabling: Every two cores are twisted in pairs with a short pitch, and then all the twisted pairs are stranded together around the core with a short pitch
Inner sheath: DQPVC-H-90-003(9039-LF) (PVC filler)
Shielding: Tinned copper wire braided shielding, shielding density > 80%
Outer sheath: DQPVC-H-90-003(9039-LF), low loss, cut-resistant, low adhesion
Sheath color: Black (RAL 9005); Grey (RAL7001); Orange (RAL2004); Green (RAL 6018)
Rated voltage: For 25 and above: 0.6/1KV; For 0.75 to 16: 300/500V; For 0.5 and below: 300/300V
Test voltage: 3500V: 2000V: 1500V
Conductor resistance: At +20°C, conforms to DIN VDE 0295 Class 6 conductor or IEC 60228 Class 6 conductor
Minimum bending radius (fixed): 4 x d
Minimum bending radius (mobile): 7.5 x d
Movement speed: Self-supporting: max. 8 m/s, Sliding: max. 5 m/s
Cable length: Self-supporting/Sliding max. 400 m
Acceleration: max. 100 m/s2
Bending cycles: 8 million times
Operating temperature (fixed, min/max): -30°C/+100°C (UL: 90°C)
Operating temperature (mobile, min/max): -30°C/+100°C (UL: 90°C)
Flame retardant rating: Conforms to IEC 60332-1-2; UL/CUI FT1, FT2
Certifications: CE; UL/CUL. UL certification needs to be specified separately if required
Printing mark: Aein bei Ke SHANGHAI AEIN WIRE & CABLE CO,LTD Model specification Voltage FLEXIBLE CONNECTION OIL RESISTANT
ABRASION RESISTANT CE Drag chain mark Meter mark
· Conforms to RoHS
·Compliant with UL and CUL standards
·Compliant with 2014/35/EU-Guideline (“Low Voltage Directive”) CE
Our Advantages
Shanghai Aiyin Electric Wire & Cable Co., Ltd. Sichuan Branch owns a modern production base integrating production, quality inspection, and development. The entire process of the company's production and operation is subject to comprehensive quality control in strict accordance with the requirements of the ISO9001:2000 Quality Management System Standard, thus ensuring product quality. The products produced by our company all meet international standards and can directly replace foreign products. This allows you to own products of international standards at a reasonable price.
The main products produced by our company include: Drag chain cables, robot cables, servo cables, braider cables, highly flexible control cables, UL certified cables, EAC customs certified cables, CE certified cables, SAA Australian standard certified cables, TUV German standard certified cables, Japanese standard cables, traveling crane cables, reel cables, signal cables, crane cables, oil-resistant cables, cold-resistant cables, bucket wheel machine cables, overhead crane cables, marine cables, zero-buoyancy cables, Armored cables, RS-485, corrosion-resistant, acid and alkali-resistant cables, control cables, BUS bus, national standard CCC cables, PUR polyurethane cables, Self-supporting steel cable cables, elevator cables, cables for electrical installation, Special cables, etc. After years of development, our company has been recognized by a large number of users for its good reputation and high-quality products.
