Product Name:

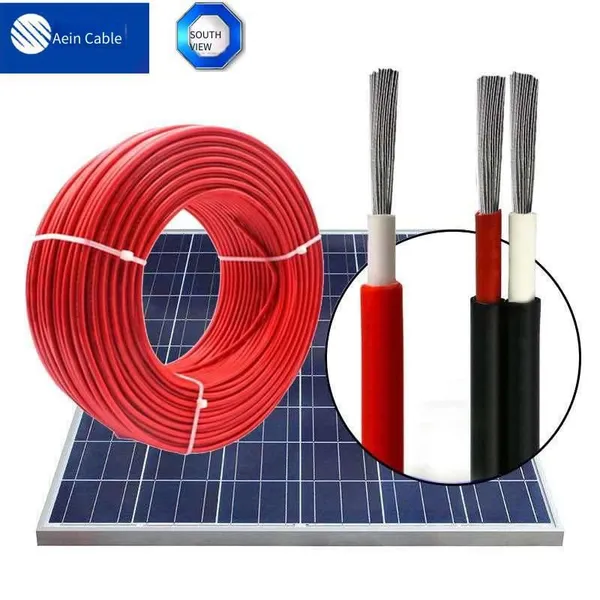

Australian Standard Photovoltaic Energy Storage Cable DC1.5KV
·Acid and alkali resistance, ozone resistance
·Mineral oil resistance
·Low smoke, halogen-free and flame retardant
Product Application:
Used for wiring and connection of solar power stations or facilities and equipment.
Product Structure:
Conductor material: Pure copper wire, tinned copper stranded wire
Conductor grade: Complies with IEC 60228 cl.5 standard
Insulation: XLPO
Insulation color: Black RAL9005 (optional)
Outer sheath: XLPO
Sheath color: Black RAL9005 (optional)
Rated voltage: DC1500 V
Test voltage: 4000V
Minimum fixed bending radius: 15 x d
Operating temperature (fixed, min/max): -40°C/+125°C
Halogen-free: Complies with IEC 60754-1
Corrosion resistance: Complies with IEC 60754-2
Flame retardant rating: Self-extinguishing and flame retardant, complies with EN 60332-1-2
Product identification: SHANGHAI AEIN WIRE&CABLE CO,LTD 62930 IEC131 300mm’1500VDC HALOGEN FREE LOW SMOKE Meter mark
Product certification:
·Complies with RoHs standard
·DIN EN 60228, Class 5 standard
·Complies with SAA certification
