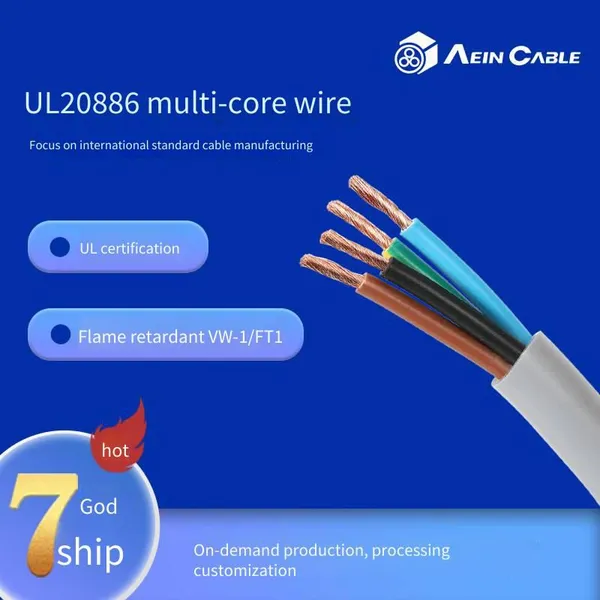

UL20886 (P) 80/90/105°C 1000V PVC Power Cable (Shielded)
· UL & CUL Certification
· Flame retardant complies with IEC 60332-1-2, FT1, VW-1
· Allowed to be laid in parallel with other 1000 V cables
· Recommended for EMC-compatible applications
The cable can be used as power, control, and connection cables in power facilities, for lossless data and signal transmission, fixed installation, and mobile applications without tensile stress and without specified cable routing. Suitable for dry, damp, and wet rooms.
Conductor material: Bare copper
Conductor class: Complies with UL758 standard, DIN VDE 0295 Class 5 conductor or IEC 60228 Class 5 conductor
Core insulation: PVC, XLPE optional
Core identification: Complies with DIN VDE 0293, black with white numbering, 1 x GNYE
Cabling: Cores are stranded in layers
Shielding: Tinned copper wire braiding, shielding density > 70%
Outer sheath: PVC
Outer sheath color: Gray RAL7001 or Black RAL9005
Rated voltage: 1000V
Test voltage: Core/core: 3 kV; Core/shield: 2 kV
Conductor resistance: UL1581 ASTM Class C
Min bending radius for fixed installation: 4 x d
Min bending radius for mobile use: 10 x d
Working temperature for fixed installation, min/max: -15°C/+105°C
Temperature class for mobile use, min/max: -5°C/+105°C
Flame retardant rating: The flame retardant rating complies with IEC 60332-1-2, FT1, VW-1
Certifications: UL & CUL: UL1032, UL10914, UL11122, UL3237, UL3820, UL20886; CE: NYY, N2XY. If CE certification requirements are needed, they should be separately indicated.
Product identification: Aein bei ke E503807 AWM Model Specification Temperature Voltage AWM I/I A/B Specification Temperature Voltage FT2 SHANGHAI AEIN
Complies with RoHS
·Complies with 2014/35/EU-Guideline (“Low Voltage Directive”) CE
-Customization is acceptable for products with special structures, other sizes, and colors of core wires and sheaths.
Our advantages
Shanghai Aiyin Electric Wire & Cable Co., Ltd. Sichuan Branch has a modern production base integrating production, quality inspection, and development. The entire process of the company's production and operation is strictly in line with the requirements of the ISO9001:2000 Quality Management System Standard to implement comprehensive quality control, thus ensuring the product quality. The products produced by our company all meet international standards and can directly replace foreign products. It allows you to own products of international level at a reasonable price.
The main products produced by our company are: Drag chain cables, robot cables, servo cables, encoder cables, highly flexible control cables, UL-certified cables, EAC customs-certified cables, CE-certified cables, SAA Australian standard-certified cables, TUV German standard-certified cables, Japanese standard cables, traveling crane cables, reel cables, signal cables, crane cables, oil-resistant cables, cold-resistant cables, bucket wheel machine cables, overhead traveling crane cables, marine cables, zero buoyancy cables,Armored cables, RS-485, corrosion-resistant, acid and alkali-resistant cables, control cables、BUS Bus、National Standard CCC Cable、PUR Polyurethane Cable、Self-supporting Steel Cable, Elevator Cable、Cables for Electrical Installation、Special Cables, etc. After years of development, Shanghai Aiyin Electric Wire & Cable Co., Ltd. Sichuan Branch has won the recognition of a large number of users with good reputation and high-quality products.
