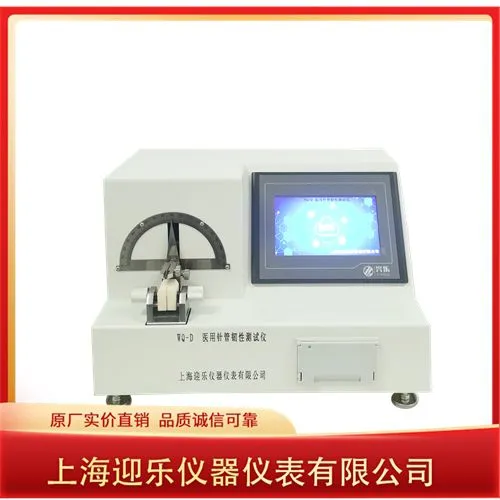

Shanghai medical stainless steel needle testing equipment manufacturer
Technical Indicators:
Operation Interface: Simplified Chinese/English
Test Standards: GB18457 "Stainless Steel Syringes for Manufacturing Medical Devices"
GB15811 "Single-Use Sterile Injection Needles"
ISO9626-2016 "Requirements and Test Methods for Stainless Steel Syringes Used in the Manufacturing of Medical Devices"
Display: 7-inch K600+ core/matrix 65-color 800*480 resolution touchscreen display, PLC control system dynamically displays the loading force value; Operation interface options: Chinese/English/Bilingual switching; Digital closed-loop control, AD sampling rate of 500KHz, internal code 500,000; High-precision clock chip, power-off storage; Overload alarm shutdown protection; Touch operation: Nominal specification, tube wall, test times, pressure, up, down, time, calibration.
Programmable Logic Controller: PLC+ARM,
Nominal Specification: Customized 0.18～3.4mm;
Test Frequency: 0.5Hz;
Touch Operation: Tube wall: normal wall, thin wall, ultra-thin wall, extremely thin wall, four options;
Swing arm bending angle: 15°, 20°, 25° three positions, switch set bending angle, 4-digit high-brightness LCD display;
Bending Distance: 6～95mm, Accuracy: ±0.1mm (10 specifications);
Test Times: freely set.
Printing Method: On-board micro needle printer
Overall Power: 200W
Power Supply: AC90V-240V/50Hz
Net Weight: 10kg, Dimensions: 300×240×240 (mm)
