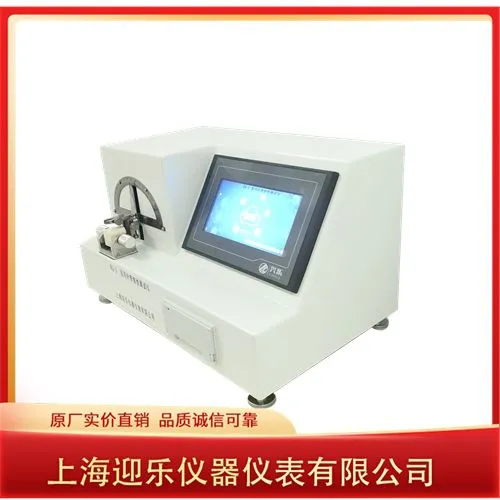

Medical Needle Tube Toughness Tester
Technical SpecificationsOperation Interface
Languages: Simplified Chinese / English
Testing Standards
GB 18457 "Stainless Steel Needle Tubes for the Manufacture of Medical Devices"
GB 15811 "Single-Use Sterile Hypodermic Needles"
ISO 9626:2016 "Stainless Steel Needle Tubes for the Manufacture of Medical Devices – Requirements and Test Methods"
Display
7-inch touchscreen (800×480 resolution, 65-color dot matrix) with K600+ core
PLC control system dynamically displays real-time load force.
Language options: Chinese / English / bilingual switching.
Digital closed-loop control, AD sampling speed: 500 kHz, internal resolution: 500,000 codes.
High-precision clock chip with power-off memory storage.
Overload alarm and automatic (auto-stop protection).
Touchscreen controls: Nominal size, wall thickness, test cycles, pressure, up/down, time, calibration.
Programmable Controller
PLC + ARM dual-core system.
Nominal Needle Sizes
Customizable range: 0.18–3.4 mm.
Test Frequency
0.5 Hz.
Wall Thickness Options (Touchscreen Selectable)
Standard wall / Thin wall / Ultra-thin wall.
Swing Arm & Bending Angle
Adjustable angles: 15°, 20°, 25° (switch-selected).
4-digit high-brightness LCD displays bending angle.
Bending Distance
Range: 6–95 mm (10 preset specifications).
Accuracy: ±0.1 mm.
Test Cycles
Freely programmable.
Printing
Built-in miniature needle printer.
Power Supply
AC 90V–240V, 50 Hz (wide voltage compatibility).

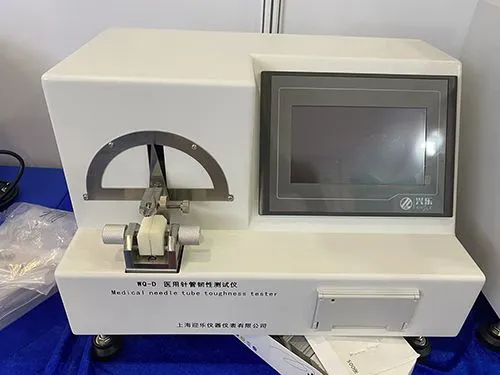

Customer uses picture
-
Shanghai Yingle Instrument Co., Ltd. is dedicated to providing professional and reliable laboratory integrated solutions to global scientific research institutions, universities, medical institutions, and enterprise R&D centers. As a driving force of industry innovation, we always focus on technology as the core, specializing in creating intelligent, high-precision, and safe and compliant laboratory equipment and supporting service systems to help customers break through scientific research bottlenecks and enhance experimental efficiency. The company has been deeply involved in the field of medical mechanics performance for many years, integrating research and development, production, and sales. Our products cover medical needle testers, syringe testers, infusion pump testers, suture needle testers, suture thread testers, medical device flow testers, surgical blade testers, guide wire and catheter testers, contraceptive device testers, dental testers, and other equipment. Relying on our independent R&D team and advanced manufacturing technology, we strictly control product quality, ensuring that each device passes through multiple detection and certification to meet the strict requirements of accuracy, stability, and safety in various experimental scenarios. At the same time, we keep pace with the forefront of industry technology, continuously optimizing product performance, and providing customizable services to flexibly meet diverse needs. We always adhere to the philosophy of "science-oriented, service-first," building a full-life cycle service system covering pre-sales consultation, solution design, installation and debugging, and after-sales maintenance. Our professional team provides one-on-one technical support, quickly responding to customer needs, and ensuring the efficient operation of the laboratory. In the future, we will continue to drive development with innovation, join hands with global partners, and jointly promote the intelligent upgrading of laboratories, creating more possibilities for scientific exploration.
