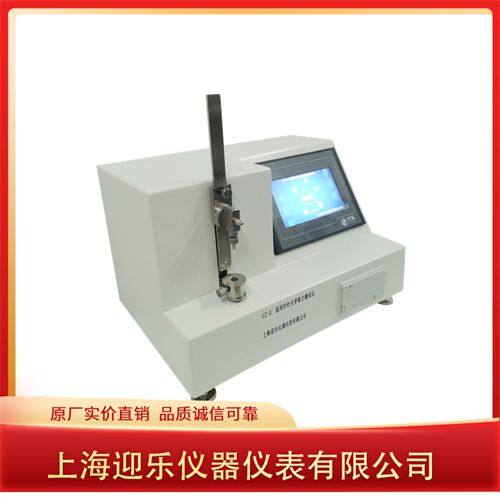

ISO7864 standard medical needle needle tip puncture force testing instrument
Technical Specifications:
Operation Interface: Simplified Chinese / English
Test Standards: IS07864-2016 "Single-Use Sterile Subcutaneous Injection Needle"
GB15811-2016 "Single-Use Sterile Injection Needle"
GB15811-2025 "Single-Use Sterile Injection Needle"
Display: A 7-inch 2000+ core/pixel 65-color 800*480 resolution touch screen, the PLC control system dynamically displays the loading force value; Operation Interface Options: Chinese / English / Switch between Chinese and English; Digital closed-loop control, 4D acquisition speed of 500KHz, internal code of 500,000; High-precision clock chip, power-off storage; Overload alarm and shutdown protection; Touch operation: nominal specification, tube wall, test times, pressure, upward, downward, time, calibration. Real-time display of peak force data of penetration force and friction force, capable of displaying maximum penetration force and F peak force values, return resistance, penetration force curve, etc., and test results are printed by the on-board printer.
Programmable Logic Controller: PLC + ARM,
Nominal Specification: Customizable 0.18~3.4mm;
Test Range: 0.01~50.00N, error not exceeding ±0.5%; Resolution: 0.01N
Mobile Speed: 50mm/min - 250mm/min; error not exceeding ±5%;
Set Distance: 6mm ~ 90mm, error not exceeding ±5%
Sensor: High-precision force value sensor (hardware and software protection functions)
Penetration Material: Polyurethane membrane material (synthetic skin), in compliance with GB15811 standard;
Printing Method: On-board needle printer
Test Data: On-board automatic collection of penetration force data, maximum penetration force and automatic calculation of average penetration force and deviation value
Overall Power Consumption: 200w
Power Supply: AC 90V-240V/50Hz
Net Weight: 12kg
Dimensions: 400×290×240 (mm)
Shanghai Yingle Instrument and Instrument Co., Ltd. has a product experience with a seasoned customer manager to consult with to develop a custom solution. Ensure that the product design plan is reasonable, the price is appropriate, and the quality is up to standard. The company has more than thirty years of experience and is the first domestic (shou) manufacturer of physical performance testing instruments for disposable medical devices, and is also the first (shou) company to obtain CMC. The company specializes in the production of medical consumable testing equipment, and its products mainly include medical needle testing instruments, medical syringe testing instruments, infusion set testing instruments,uture needle testing instruments, suture line testing instruments, medical device flow testing instruments, etc. With strong technical strength, rich manufacturing experience, high-quality products, and high- and reliable services, it has successfully won the high recognition of the market. At present, the cumulative number of customers has reached thousands, covering all provinces and cities in the country, the products are widely used in scientific research institutes, testing institutions, and major medical enterprises, schools, etc. With the concept of "innovation leading the future, service the brand", Yingle will continue to provide high-quality products, reasonable prices, and satisfactory services for the majority of users, and continue to innovate and strive excellence in the road of the testing industry, creating higher brand value.
