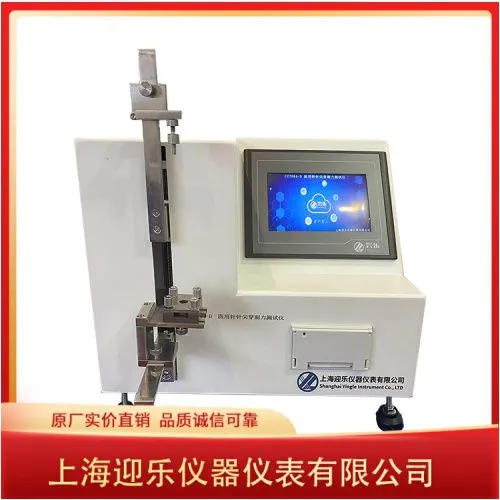

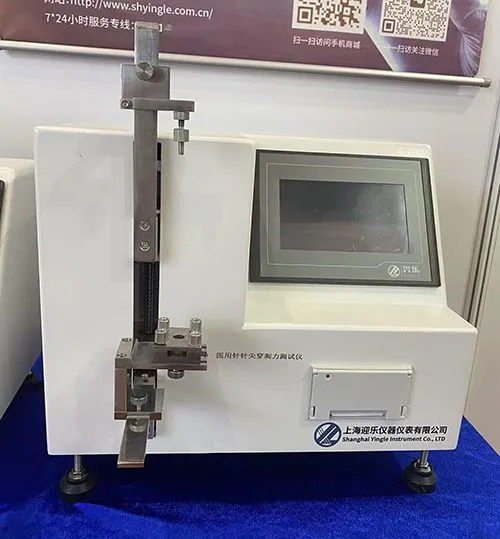

Medical Needle Pricking Force Tester for Disposable Sterile Hypodermic Needle
Technical indicators:
Operating interface: Simplified Chinese/English
Testing standard: GB15811-216 "Disposable Sterile Injection Needle"
Display: 7-inch K600 core/matrix 65-color 800*80 resolution touch screen display, PLC control system dynamically displays load value; Operation interface options: Chinese/English/Chinese and English switch; Digital closed-loop control, acquisition speed of 500KHz, internal code 500,000; High-precision clock chip, power-off storage; Overload alarm shutdown protection Touch operation: Nominal specifications, wall thickness, number of tests, pressure, up, down, time, calibration. Real-time display of puncture force and peak force data can display the maximum puncture force and five kinds of peaks, puncture force curve, etc.
Programmable controller: PLC ARM,
Nominal specifications: 0.18～3.4mm;
Test range: Custom 0～5.00N, error within ±0.5%; Resolution: ±0001N
Travel speed: 100mm/min; Error within ±5%;
Sensor: High-precision force value sensor (software and hardware protection function
Puncturing force material: Polyurethane film material (artificial skin), in accordance with GB15811 standard;
Printing method: Built-in printer
Test data: Built-in automatic collection of puncture force data, maximum puncture force and automatic calculation of average puncture force and deviation value
Overall power: 00W
Power supply: AC90V-240V/50Hz
Net weight: 10kg Dimensions: 300×40×240 (mm)
Shanghai Yingle Instrument and Instrument Co., Ltd. has a product experience with a seasoned customer manager to consult with to develop a custom solution. Ensure that the product design plan is reasonable, the price is appropriate, and the quality is up to standard. The company has more than thirty years of experience and is the first domestic (shou) manufacturer of physical performance testing instruments for disposable medical devices, and is also the first (shou) company to obtain CMC. The company specializes in the production of medical consumable testing equipment, and its products mainly include medical needle testing instruments, medical syringe testing instruments, infusion set testing instruments,uture needle testing instruments, suture line testing instruments, medical device flow testing instruments, etc. With strong technical strength, rich manufacturing experience, high-quality products, and high- and reliable services, it has successfully won the high recognition of the market. At present, the cumulative number of customers has reached thousands, covering all provinces and cities in the country, the products are widely used in scientific research institutes, testing institutions, and major medical enterprises, schools, etc. With the concept of "innovation leading the future, service the brand", Yingle will continue to provide high-quality products, reasonable prices, and satisfactory services for the majority of users, and continue to innovate and strive excellence in the road of the testing industry, creating higher brand value.
