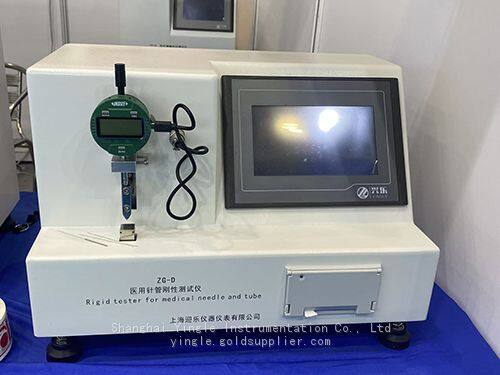

Medical injection needle rigidity testing machine Shanghai Yingle manufacturer
Technical SpecificationsOperation Interface
Languages: Simplified Chinese / English
Testing Standards
GB 18457 "Stainless Steel Needle Tubes for the Manufacture of Medical Devices"
GB 15811 "Single-Use Sterile Hypodermic Needles"
ISO 9626:2016 "Stainless Steel Needle Tubes for the Manufacture of Medical Devices – Requirements and Test Methods"
Display
7-inch touchscreen (800×480 resolution, 65-color dot matrix) with K600+ core
PLC control system dynamically displays real-time load force.
Language options: Chinese / English / bilingual switching.
Digital closed-loop control, AD sampling speed: 500 kHz, internal resolution: 500,000 codes.
High-precision clock chip with power-off memory storage.
Overload alarm and automatic (auto-stop protection).
Touchscreen controls: Nominal size, wall thickness, test cycles, pressure, up/down, time, calibration.
Programmable Controller
PLC + ARM dual-core system.
Nominal Needle Sizes
Customizable range: 0.18–3.4 mm.
Test Frequency
0.5 Hz.
Wall Thickness Options (Touchscreen Selectable)
Standard wall / Thin wall / Ultra-thin wall.
Swing Arm & Bending Angle
Adjustable angles: 15°, 20°, 25° (switch-selected).
4-digit high-brightness LCD displays bending angle.
Bending Distance
Range: 6–95 mm (10 preset specifications).
Accuracy: ±0.1 mm.
Test Cycles
Freely programmable.
Printing
Built-in miniature needle printer.
Power Supply
AC 90V–240V, 50 Hz (wide voltage compatibility).
Customer uses picture
-
Shanghai Yingle Instrument & Instrument Co., Ltd., based in Shanghai and selling nationwide, was established in 199 (originally Shanghai Xingle Telecommunications Equipment Co., Ltd.) and is China's first medical testing equipment manufacturer. As an industry enterprise that has been deeply engaged the research and development of mechanical technology for more than 30 years, Shanghai Yingle always puts product quality and compliance at the top priority. It has not only won high in the domestic market but has also broken through the recognition of the international market, consolidating its brand influence in the industry.
FAQ
Are you a manufacturer or trading company?
We are a Chinese manufacturer based in Shanghai, China, focusing on medical testing equipment for more than 30 years. We mainly produce medical needle testers, medical syringe testers, infusion set testers, suture needle testers, suture testers, Luer syringe connector comprehensive testers, and medical device flow testers.
How about the installation?
The user's manual specifies the installation requirements with details. We will advise the relative information in advance, such as power supply, space, required temperature, humidity, etc.
Do you have after-sales service?
We will carry out the equipment inspection before delivery. If the machine does not work properly, we can make a remote control service to help dealing with the failure. We promise to reply within 24 hours and provide solutions within 2 working days.
How about the warranty?
Our warranty is 12 months, lifelong free of charge! User just bear the materials cost and express charge out-of-warranty period.
How long does the delivery time?
For the regular machine, 5-7 working days. For the customized one, 30 days or so.
