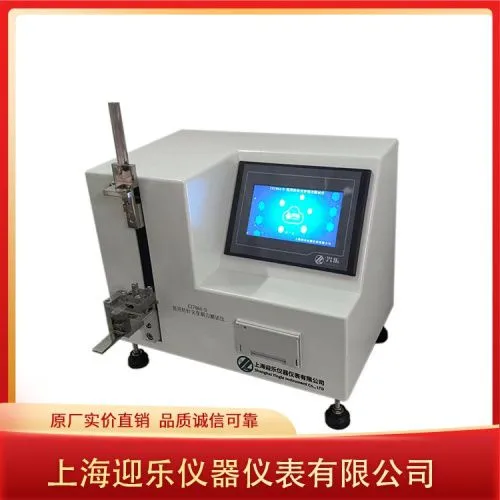

Disposable venous indwelling needle puncture force tester venous needle blood collection needle collection needle puncture force testing equipment
Technical specifications:
Operation interface: Simplified Chinese/English
Testing standard: GB15811-2016 "Disposable Sterile Syringe"
YY1282-2016 "Disposable Venous Catheter"
Display: 7-inch K600+ core/matrix 65-color 800*480 resolution touchscreen display, PLC control system dynamic display of loading force values; operation interface options: Chinese/English/bilingual switch; digital closed-loop control, AD acquisition speed of 500KHz, internal code of 500,000; high-precision clock chip, power-off storage; overload alarm and shutdown protection; touch operation: nominal specification, tube wall, test times, pressure, upward, downward, time, calibration. Real-time display of penetration force and peak force data, showing maximum penetration force and F5 peak forces, penetration force curve graph, etc.
Programmable controller: PLC+ARM,
Nominal specification: customized 0.18～3.4mm;
Test range: customized 0～5.00N, error not more than ±0.5%; resolution: 0.001N
Moving speed: 100mm/min; error not more than ±5%;
Sensor: High-precision force sensor (hardware and software protection functions)
Penetration force material: polyurethane film material (artificial skin), in compliance with GB15811 standard;
Printing method: on-board needle printer
Test data: on-board automatic collection of penetration force data, maximum penetration force and automatic calculation of average penetration force and deviation value
Overall power: 70W
Power supply: AC90V-240V/50Hz
Net weight: 10kg
Dimensions: 300×240×240 (mm)
Shanghai Yingle Instrument and Instrument Co., Ltd. has a product experience with a seasoned customer manager to consult with to develop a custom solution. Ensure that the product design plan is reasonable, the price is appropriate, and the quality is up to standard. The company has more than thirty years of experience and is the first domestic (shou) manufacturer of physical performance testing instruments for disposable medical devices, and is also the first (shou) company to obtain CMC. The company specializes in the production of medical consumable testing equipment, and its products mainly include medical needle testing instruments, medical syringe testing instruments, infusion set testing instruments,uture needle testing instruments, suture line testing instruments, medical device flow testing instruments, etc. With strong technical strength, rich manufacturing experience, high-quality products, and high- and reliable services, it has successfully won the high recognition of the market. At present, the cumulative number of customers has reached thousands, covering all provinces and cities in the country, the products are widely used in scientific research institutes, testing institutions, and major medical enterprises, schools, etc. With the concept of "innovation leading the future, service the brand", Yingle will continue to provide high-quality products, reasonable prices, and satisfactory services for the majority of users, and continue to innovate and strive excellence in the road of the testing industry, creating higher brand value.
