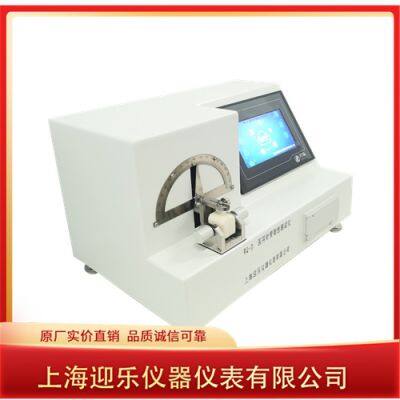

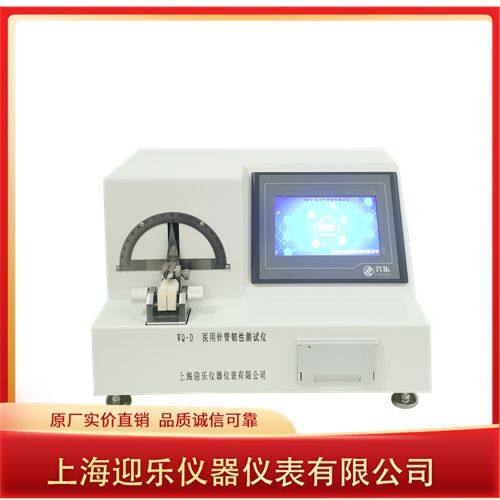

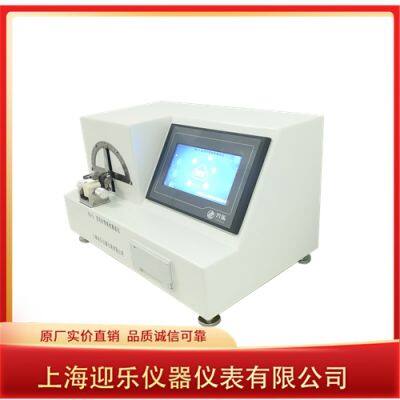

Injection Needle Tube Toughness Testing Machine

Technical indicators:

Operation interface: Simplified Chinese/English

Test standard: GB18457 "Stainless steel needle tube for manufacturing medical equipment"

GB15811 "Disposable Sterile Injection Needle"

ISO9626-2016 "Requirements and Test Methods for Stainless Steel Needles and Tubes for Medical Device Manufacturing"

Display: Adopt 7-inch K600+ kernel/dot matrix 65-color 800*480 resolution touch screen display, PLC control system dynamically displays the loading force value; operation interface can be selected: Chinese/English/Chinese and English switching; digital closed-loop control, AD acquisition speed is 500KHz, internal code 50 Ten thousand; high-precision clock chip, power-off storage; overload alarm downtime protection; touch operation: nominal specification, tube wall, number of tests, pressurized, up, down, time, calibration.

Programmable controller: PLC+ARM,

Nominal specification: customized 0.18~3.4mm;

Test frequency: 0.5Hz;

Touch operation: tube wall: normal wall, thin wall, ultra-thin wall, extremely thin wall, four optional;

The bending angle of the rocker arm: 15°, 20°, 25°, 3 positions, the switch sets the bending angle, and the 4-position high-brightness LCD display;

Bending distance: 6~95mm, accuracy: ±0.1mm (10 specifications);

Number of experiments: free to set.

Printing method: on-board micro-needle printer

Power of the whole machine: 200W

Power supply: AC90V-240V/50Hz

Net weight: 10kg External size: 300×240×240 (mm)

Shanghai Yingle Instrument Co., Ltd. (formerly Shanghai Xingle) is located in Shanghai, the manufacturing capital. Founded in 1993, the company is a manufacturer of physical performance testing equipment for medical consumables integrating design, research and development and sales. The company's products mainly serve third-party testing institutions, quality laboratories and research and development centers of medical consumables production units, etc. The company has more than 30 years of industry experience. It is a domestic (shou) manufacturer of physical performance testing instruments for disposable medical devices, and also the first (shou) enterprise to obtain CMC certification. The company mainly produces medical stainless steel needle and tube testing equipment, medical syringe testing equipment, medical infusion device testing equipment, medical suture needle, thread testing equipment, 6% Luer joint testing equipment, etc. Technical indicators are updated at any time with the industry standards of medical packaging materials to ensure that the company's products serve customers with new standards.
