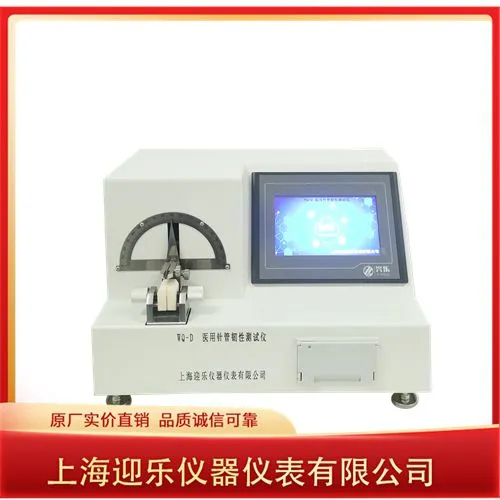

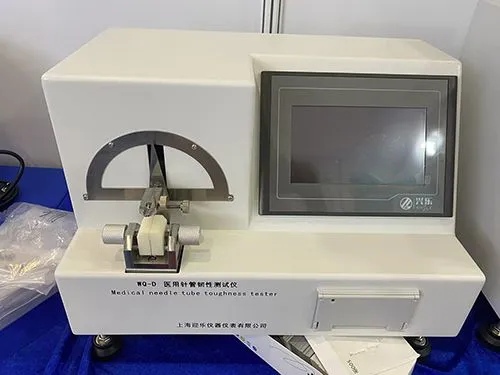

Medical needle testing equipment manufacturer
Product Configuration and Introduction:
Adopting a 7-inch K600+ core/matrix 65-color 800*480 resolution touchscreen display, the PLC control system dynamically displays the loading force value; the operation interface can be selected: Chinese/English/Bilingual switching; digital closed-loop control, AD acquisition speed of 500KHz, internal code 500,000; high-precision clock chip, power-off storage; overload alarm and shutdown protection; touch control operations: nominal specification, tube wall, test times, pressure, upward, downward, time, calibration. Technical Specifications:
Operation Interface: Simplified Chinese/English
Testing Standard: GB18457 "Stainless Steel Needles for Medical Device Manufacturing"
GB15811 "Single-Use Sterile Injection Needle"
ISO9626-2016 "Requirements and Test Methods for Stainless Steel Needles for Medical Device Manufacturing"
Programmable Logic Controller: PLC+ARM
Nominal Specification: Customizable from 0.18mm to 3.4mm;
Test Frequency: 0.5Hz;
Touch Control Operations: Tube Wall: normal wall, thin wall, ultra-thin wall, extremely thin wall, four options available;
Swing arm flexion angle: 15°, 20°, 25°, three positions, switch to set flexion angle, 4-digit high-brightness LCD display;
Flexion Distance: 6 to 95mm, accuracy: ±0.1mm (10 specifications);
Test Times: freely set.
Printing Method: On-board micro-needle printer
Overall Power: 200W
Power Supply: AC90V-240V/50Hz
Net Weight: 10kg External Dimensions: 300×240×240 (mm)
Brand Advantages:
· As a professional manufacturer of instruments and meters, Shanghai Yingle has more than 30 years of industry experience and strength.
· We have a professional technical team that provides comprehensive technical support including pre-sales consultation and on-site training.
· Enjoy a high reputation and good fame in the market.
· Our product quality is reliable, having undergone strict testing and inspection, in compliance with international standards.
· We offer customized products, designed and produced according to customer needs.
· After-sales service is timely and effective, with a quick response to and handling of product malfunctions.
