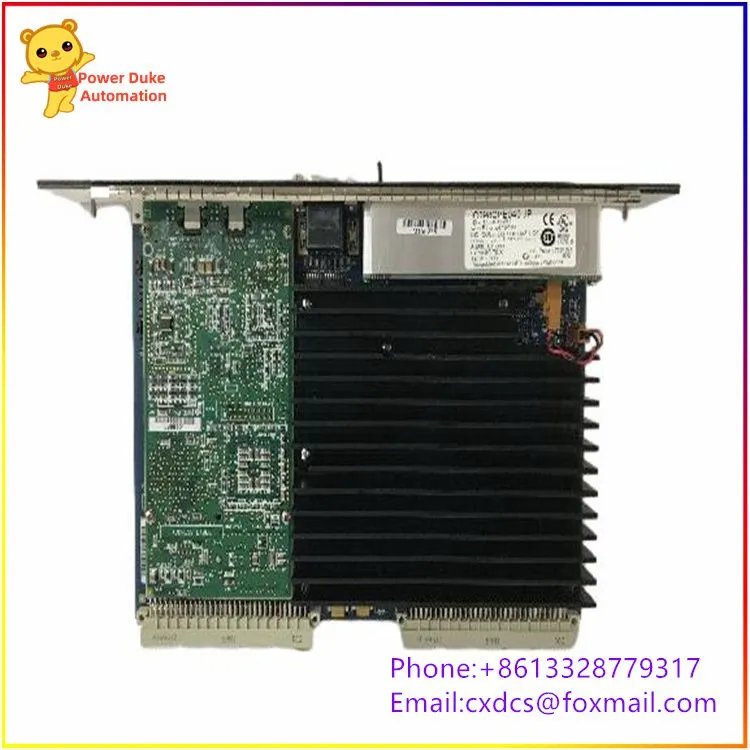

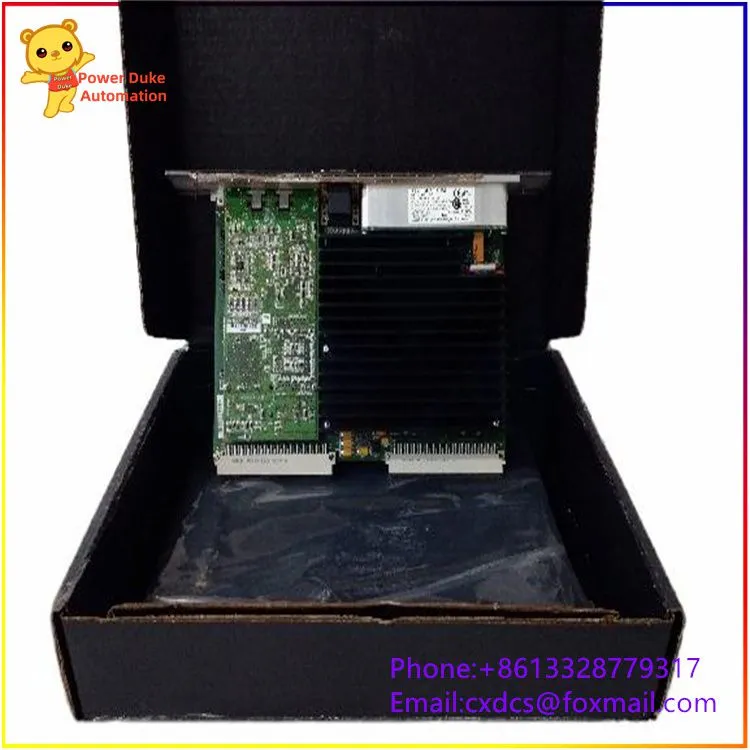

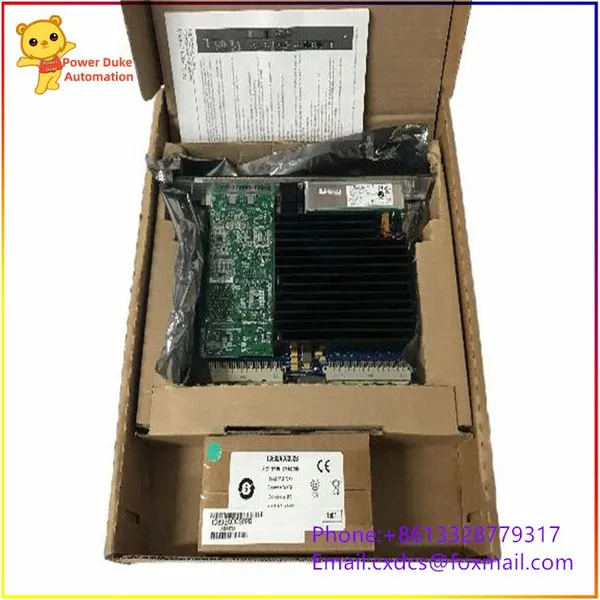

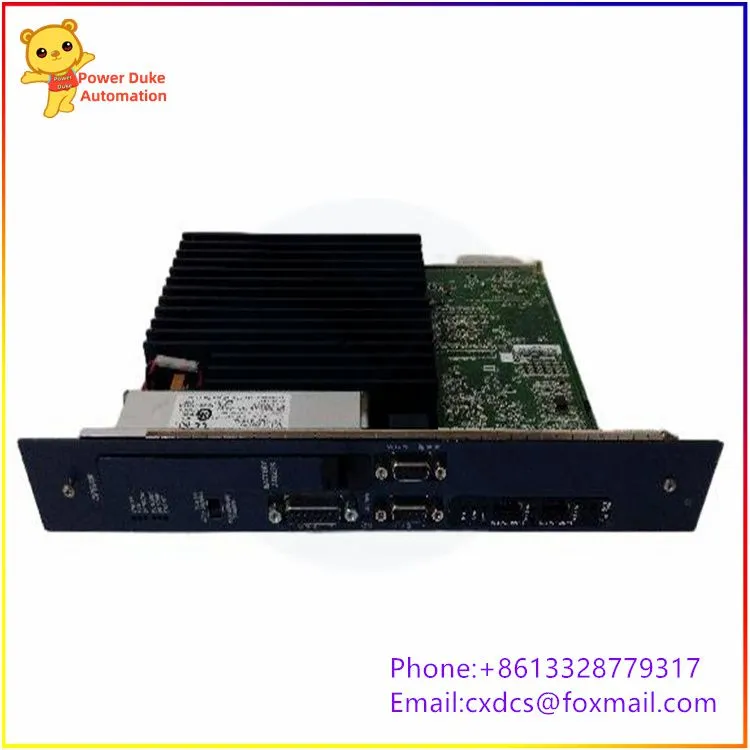

Help CenterGE IC698CPE040-JP RX7i Series High-performance Processor Module
Product Spotlights
Related Products
-
GE V7768-320000 VME64 Bus High-performance Single-board ComputerUS$ 5000MOQ: 1 Unit -
GE SR489-P5-HI-A20-E Integrated Management Protection RelayUS$ 1000MOQ: 1 Unit
-
Bently Nevada 3500/22M IN STOCK FOR SELLUS$ 1 - 5000MOQ: 1 Piece
-
BENTLY NEVADA 3500/25 Keyphasor Module IN STOCKUS$ 1 - 5000MOQ: 1 Piece
-
Bently 3500/32 4-channel Relay Module IN STOCKUS$ 1 - 5000MOQ: 1 Piece
I. Product Description
The GE Fanuc IC698CPE040 PACSystems RX7i series high-performance PLC main control CPU module, with the suffix - JP indicating the Japanese compliance version, is equipped with Japanese firmware and complies with PSE and JIS industrial certification standards. It is based on the VME64 bus architecture and is compatible with the entire Series 90-70 I/O module series. It is responsible for complex logical operations, process closed-loop control, massive I/O acquisition and processing, and multi-device network communication. It supports dual-machine hot redundancy, web remote monitoring, and is widely used in large-scale process industries such as thermal power, gas turbines, and metallurgy. It is a core spare part and component of GE's high-end industrial control.
Key Technical Parameters
Model: IC698CPE040-JP, Processor: 1.8GHz Pentium-M industrial processor
Storage Configuration: 64MB battery-backed user memory, 64MB non-volatile flash memory
Logical Operation Speed: Boolean instruction single-step operation is approximately 0.03μs
Maximum I/O Capacity: Local + Remote total support 64,000 point switch and analog points
Communication Interfaces: Dual 10/100Mbps adaptive RJ45 Ethernet, RS232, RS485 isolated serial ports
Supported Protocols: Modbus TCP, EGD, SNTP, FTP, HTTP web service, up to 16 web/FTP concurrent connections
Power Supply Specifications: +5VDC (rated 6.8A), ±12VDC
Operating Environment Temperature: 0℃～+60℃ (requires a cabinet fan for cooling)
Storage Temperature: -20℃～+70℃, relative humidity 5%～95% RH without condensation
Protection Grade: IP20, VME rack slot installation, occupying slot 1 of RX7i backplane
Companion Accessories: Lithium battery backup module to save program and real-time clock when power is off
Overall Size: 220mm×160mm×40mm, Net Weight: 1.2kg
Version Description: -JP is compatible with Japanese electrical safety regulations, Japanese firmware and compliance certification documents
Certification: CE, UL, PSE, JIS industrial safety electromagnetic compatibility certification
Product Performance
High-performance real-time computing capability, supporting ladder diagrams, structured text, function blocks, and C language multi-type programming, capable of carrying 512 program blocks, suitable for complex interlocks, PID regulation, and motion control scenarios.
Dual Ethernet support for redundant networking, SNTP network time synchronization, can build a ring network architecture to avoid single-point network failure, and achieve high-speed data interaction between multiple PLCs, HMI, and DCS systems.
Supports online test editing mode, which can debug and modify programs while the equipment is not stopped, significantly reducing the risk of production line shutdown for debugging.

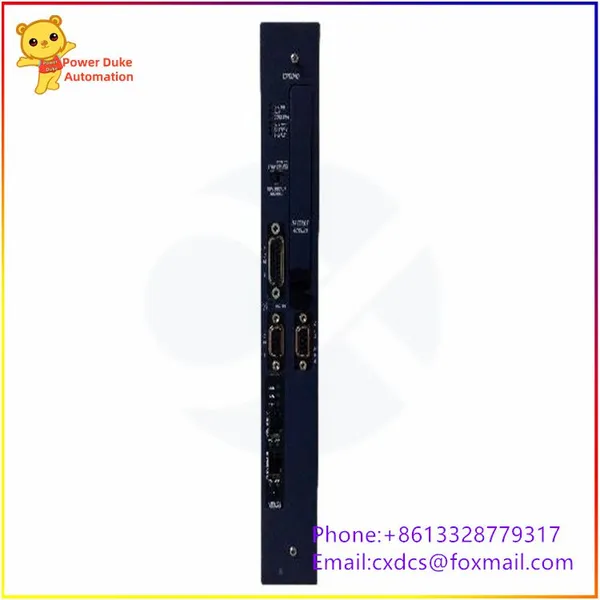

Hardware whole machine self-diagnosis, power-on self-check CPU, memory, bus, and communication link faults, panel LED indicator lights provide real-time feedback on operation, faults, and communication status, facilitating rapid operation and troubleshooting.
Downward compatibility with traditional 90-70 series I/O, communication, and VME third-party modules, allowing for system upgrade and replacement without the need to replace the entire backplane and peripherals, with extremely strong compatibility.
Supports dual CPU hardware hot redundancy configuration, with real-time mirroring of data between the primary and backup controllers, millisecond-level undisturbed switching, ensuring continuous and stable operation of power generation units and large production lines.
Built-in web server, allowing remote viewing of operating parameters, fault events, program status, supporting FTP program upload and download, and facilitating convenient and efficient remote operation.
Application Domains Thermal power and gas-fired power plants: Steam turbine units, gas turbine auxiliary control systems, boiler DCS, excitation, denitration and desulfurization automation control systems
Metallurgical industry: Hot rolling and cold rolling production lines, blast furnace fans, circulating water pumps, dust removal system large-scale process control
Petrochemical industry: Large compressors, refining and chemical reaction units, oil and gas long-distance transportation pipelines interlock and closed-loop control systems
Water treatment, heating and hot water pipelines, cement and building materials: Large pumping stations, kiln furnace fans centralized automatic monitoring for the entire plant
Rail transportation, port heavy industry, large-scale wind power supporting industrial equipment redundant control systems
List of Similar Model Numbers
IC698CPE030-JP: 600 MHz economical RX7i CPU, used in small and medium-sized control sites
IC698CPE040-JP: 1.8 GHz high-performance Japanese-compliant CPU (this model)
IC698CPE040: International standard version CPU, without Japanese region compliance certification
IC698CPE050: Upgraded large memory high-end processor, used in super large redundant control systems
IC698CHS100: RX7i series 10-slot VME backplane rack
IC698ACC701: CPU backup module with lithium battery for the backup system
