I. Product Description
The Beltrini 3500/25 is a dual-channel enhanced keyphasor module, belonging to the core board card of the 3500 series TSI rotating machinery condition monitoring protection system. It adopts a half-height frame design and can receive signals from eddy current and magneto-electric keyphasor sensors, collecting the rotational speed and phase reference pulses. It provides a synchronous time base for vibration, axial displacement, overspeed protection modules, and is used for vibration vector analysis, fault spectrum diagnosis, speed measurement, and overspeed interlock protection. It is widely used in online monitoring systems of key units such as steam turbines, gas turbines, and large compressors, and supports hot-swappable frames. It complies with API670 industrial safety standards.
Key Technical Parameters
Product Model: 3500/25, Hardware Board Number: 149369-01 (Upgrade Version) / 125792-01 (Old Version)
Channel Configuration: 2 independent keyphasor signal inputs, 2 buffered keyphasor signal outputs
Input Voltage Range: -21V to +0.8V (non-isolated), -11V to +5V (isolated)
Speed Measurement Range: 1 to 1200000 CPM (0.017 to 20kHz)
Measurement Accuracy: Speed ±0.05% FS, Phase Measurement Accuracy ±0.1°
Input Impedance: 21.8kΩ, Buffered Output Impedance 504Ω
Power Supply Method: Powered by the DC backplane of the 3500 frame, typical power consumption 3.2W
Operating Environment Temperature: 0°C to +65°C, Storage Temperature -40°C to +85°C
Relative Humidity: 5% to 95% RH, No Condensation
Protection Grade: IP20, Installed only in the internal frame of the 3500 frame
Installation Specifications: Half-height 19-inch frame slot, supports online hot-swappable
Panel Configuration: OK operation indicator light, TX/RX communication status indicator light, two BNC sensor input interfaces
The maximum number of 3500/25 modules that can be configured per 3500 frame is 2, and up to 4 keyphasor signals can be connected.
Certification: CE, UL, meets API670 mechanical protection specifications
Product Performance
Dual-channel independent collection design, enabling dual-channel keyphasor redundant collection. A single sensor failure does not lose the speed and phase reference. This ensures reliable action of overspeed protection for the unit.
High-precision pulse signal conditioning, capable of accurately capturing the keyphasor pulses of the rotating shaft for each rotation/multiple rotations, supporting 1x and 2x frequency vibration amplitudes and phase analysis. It is a necessary timing signal for rotor imbalance, misalignment, and other fault diagnosis.
Built-in signal filtering, overvoltage and surge protection circuits, can shield electromagnetic interference from variable frequency drives and high-voltage equipment in the field, enabling long-term stable operation in strong interference industrial conditions of power plants and chemical plants.
Equipped with hardware self-check functions for sensor disconnection, abnormal signal amplitude, and frequency over-limit, faults are indicated by panel indicator lights and uploaded to the 3500 upper system.
Compatible with the old 3500 keyphasor module, hardware size and backplane interface are completely consistent. Old unit spare parts can be directly replaced without modifying the configuration.
Output buffered keyphasor signals can be externally connected to fault diagnosis instruments and transient data acquisition equipment to achieve offline precise fault analysis of the unit.
Application Domains
Thermal power, hydropower, and gas-fired power plants: Steam turbine generator sets, water turbines, gas turbine TSI monitoring systems for speed phase collection, overspeed protection reference collection
Petroleum and chemical industry: Large centrifugal compressors, turbine expansion machines, blowers for vibration state monitoring and fault diagnosis
Metallurgical and steel industry: Blast furnace axial flow fans, steam turbine-driven power generation units, large turbine equipment mechanical protection
Coal chemical and air separation units: Multi-stage compression units, steam turbine-driven key rotating equipment online status monitoring Vibration analysis and safety interlock protection for ships, self-owned power station turbine units of refineries, and large pump sets
List of matching models of the same series
3500/05: Installation frame for 14 slots of the system
3500/15: AC/DC power supply module of the system
3500/22M: Frame interface communication module
3500/40M: Vibration and displacement monitoring module
3500/53: Relay protection output module
3500/92: System communication gateway module
Details:
1. All quote are basic on EX-WORK
2. Delivery time: 3-5 days after payment
3. Payment Term:T/T
4. Shipment: EMS, DHL, UPS & FEDEX
5. Price: The more you order ,the lower price you will get
Application industry：
1.Power industry, the elevator industry, parking, automobile, auto ancillary.
2.feed industry, aluminum smelting machines, refrigeration industry.
3.steel industry, combustion control systems, non-ferrous metal smelting.
4.glass industry, construction machinery, textile machinery, water treatment

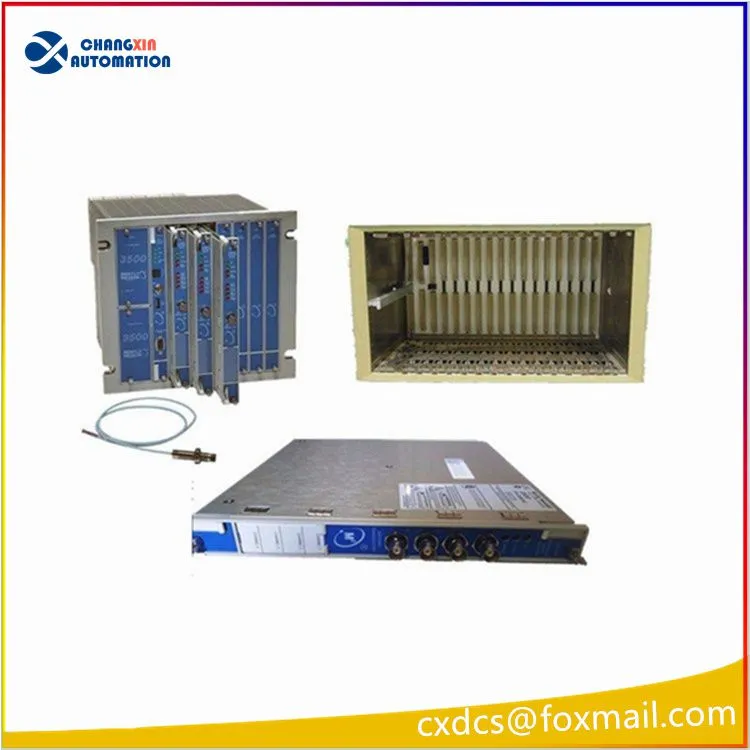

Bentley 3500 system is used for vibration monitoring and protection of large machinery. The Bentley 3500 system must be equipped with a rack 3500 / 05, a power supply 3500 / 15, and a rack interface module 3500 / 22m,
Bently3500 Bently power supply high voltage AC 220V, spare parts are as follows
127610-01 AC power module
125840-01 high voltage AC power input module (PIM)
125840-02 low voltage AC power input module (PIM)
129486-01 high voltage DC power module
129478-01 high voltage DC power input module (PIM)
133292-01 low voltage DC power module
133300-01 low voltage DC power input module (PIM)
0172025 spare fuse (two types of AC PIM and high voltage DC PIM)
0172045 spare fuse (low voltage DC PIM)
129767-01 power supply operation and maintenance manual
The ordering information and model of Bently 3500 / 15 are as follows:
3500 / 15-axx-bxx-cxx option description
A: Power type (upper notch)
01 low voltage AC (85-132 VAC RMS)
02 high voltage AC (175-264 VAC RMS)
03 high voltage DC (88-140 VDC)
04 low voltage DC (20-30 VDC)
05 universal AC power supply (85-264 VAC RMS) (New)
B: Power type (lower notch)
00 no power supply (only used when single power supply is required)
01 low voltage AC (85-132 VAC RMS)
02 high voltage AC (175-264 VAC RMS)
03 high voltage DC (88-140 VDC)
04 low voltage DC (20-30 VDC)
05 universal AC power supply (85-264 VAC RMS) (New)
C: Approval unit options
00: None
01 CSA/NRTL/C
02 ATEX/IECEx/CSA (Class 1, Zone 2)
Cn China
Specific models are as follows:
3500 / 15 (front panel 127610-01, back panel 125840-01)
3500 / 15-02-02-00, both the upper slot and the lower slot are installed, so it is a dual power supply,
3500 / 15-02-00-00, the upper slot is installed, the lower slot is not installed, so it is a single power supply
3500 / 15-05-05-00, both the upper slot and the lower slot are installed, so it is a dual power supply
The following is the upgraded 3500 / 15 universal AC power module:
3500 / 15 (front panel 106m1079-01, back panel 106m1081-01)
3500 / 15-05-05-00, upper slot and lower slot are installed, so it is a set of dual power supply
3500 / 15-05-00-00, the upper slot is installed, the lower slot is not installed, so it is a single power supply
