Bently 3500/60 and 3500/61 temperature monitors
Bently 3500/60 and 3500/61 temperature monitors
Bently 3500/60 and 3500/61 temperature monitors
Details:
1. All quote are basic on EX-WORK
2. Delivery time: 3-5 days after payment
3. Payment Term:T/T
4. Shipment: EMS, DHL, UPS & FEDEX
5. Price: The more you order ,the lower price you will get
Application industry：
1.Power industry, the elevator industry, parking, automobile, auto ancillary.
2.feed industry, aluminum smelting machines, refrigeration industry.
3.steel industry, combustion control systems, non-ferrous metal smelting.
4.glass industry, construction machinery, textile machinery, water treatment

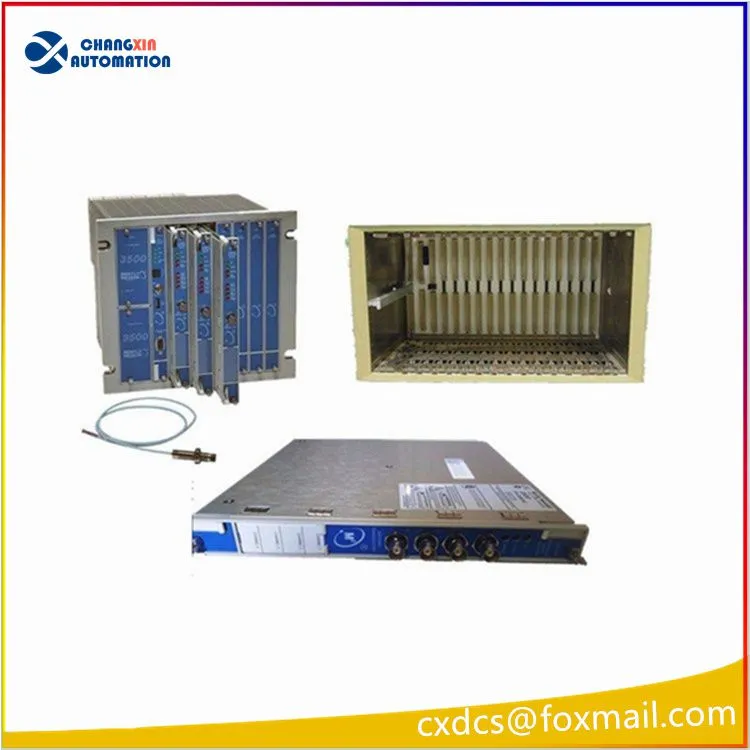

Bentley 3500 system is used for vibration monitoring and protection of large machinery. The Bentley 3500 system must be equipped with a rack 3500 / 05, a power supply 3500 / 15, and a rack interface module 3500 / 22m,
Bently3500 Bently power supply high voltage AC 220V, spare parts are as follows
127610-01 AC power module
125840-01 high voltage AC power input module (PIM)
125840-02 low voltage AC power input module (PIM)
129486-01 high voltage DC power module
129478-01 high voltage DC power input module (PIM)
133292-01 low voltage DC power module
133300-01 low voltage DC power input module (PIM)
0172025 spare fuse (two types of AC PIM and high voltage DC PIM)
0172045 spare fuse (low voltage DC PIM)
129767-01 power supply operation and maintenance manual
The ordering information and model of Bently 3500 / 15 are as follows:
3500 / 15-axx-bxx-cxx option description
A: Power type (upper notch)
01 low voltage AC (85-132 VAC RMS)
02 high voltage AC (175-264 VAC RMS)
03 high voltage DC (88-140 VDC)
04 low voltage DC (20-30 VDC)
05 universal AC power supply (85-264 VAC RMS) (New)
B: Power type (lower notch)
00 no power supply (only used when single power supply is required)
01 low voltage AC (85-132 VAC RMS)
02 high voltage AC (175-264 VAC RMS)
03 high voltage DC (88-140 VDC)
04 low voltage DC (20-30 VDC)
05 universal AC power supply (85-264 VAC RMS) (New)
C: Approval unit options
00: None
01 CSA/NRTL/C
02 ATEX/IECEx/CSA (Class 1, Zone 2)
Cn China
Specific models are as follows:
3500 / 15 (front panel 127610-01, back panel 125840-01)
3500 / 15-02-02-00, both the upper slot and the lower slot are installed, so it is a dual power supply,
3500 / 15-02-00-00, the upper slot is installed, the lower slot is not installed, so it is a single power supply
3500 / 15-05-05-00, both the upper slot and the lower slot are installed, so it is a dual power supply
The following is the upgraded 3500 / 15 universal AC power module:
3500 / 15 (front panel 106m1079-01, back panel 106m1081-01)
3500 / 15-05-05-00, upper slot and lower slot are installed, so it is a set of dual power supply
3500 / 15-05-00-00, the upper slot is installed, the lower slot is not installed, so it is a single power supply
