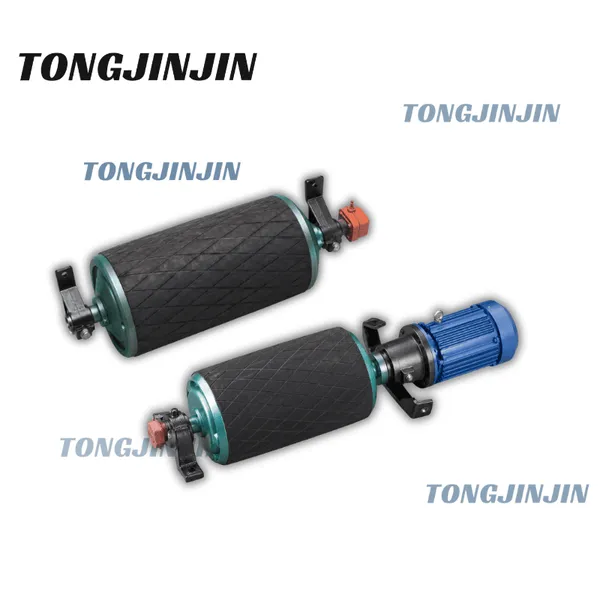

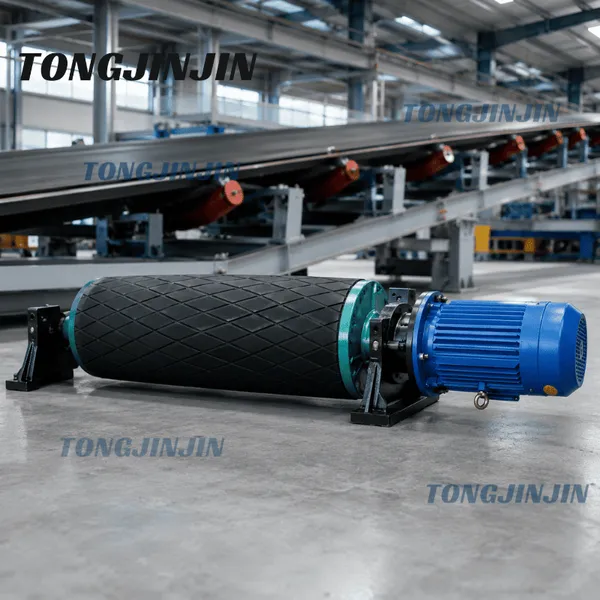

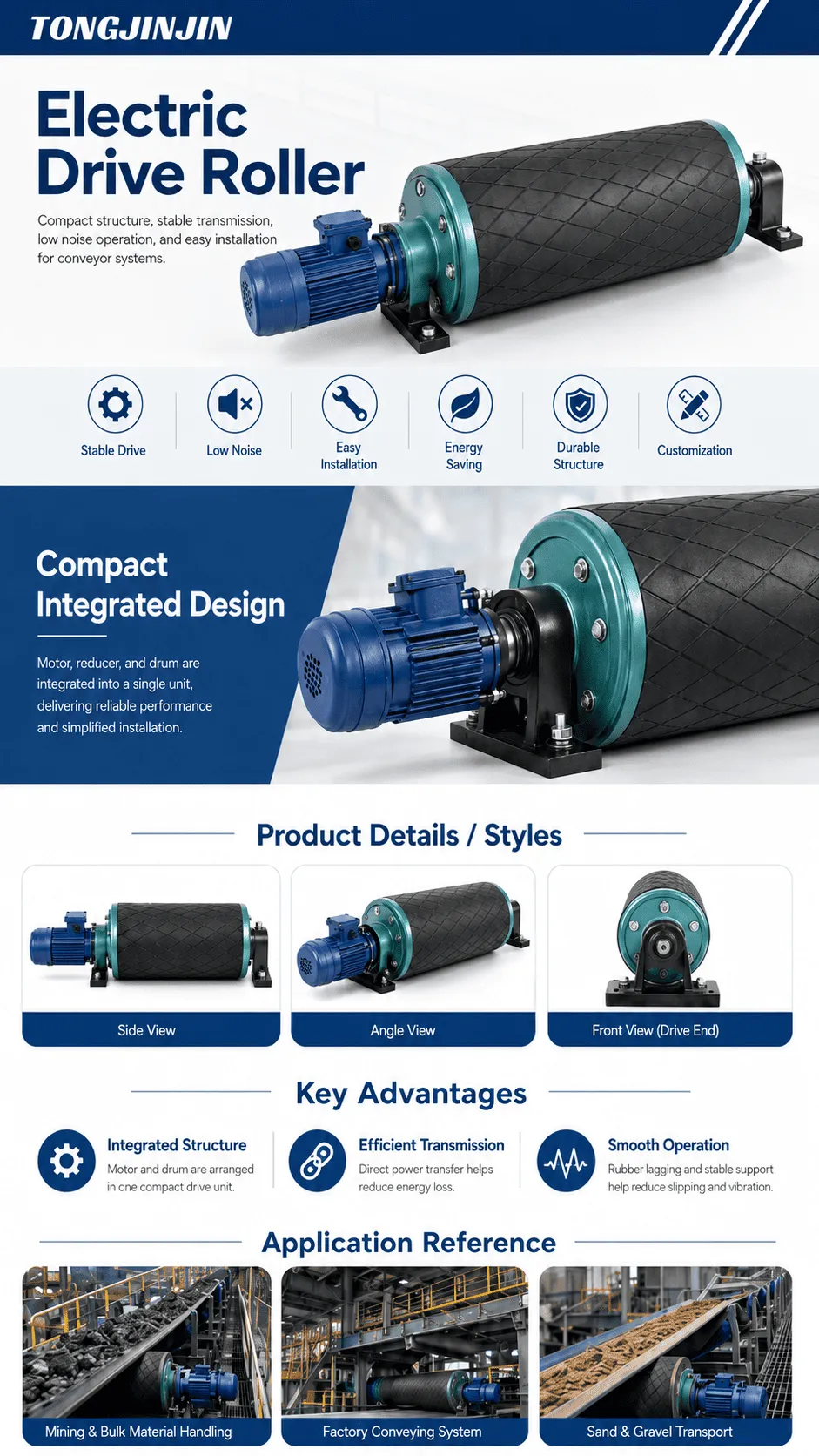

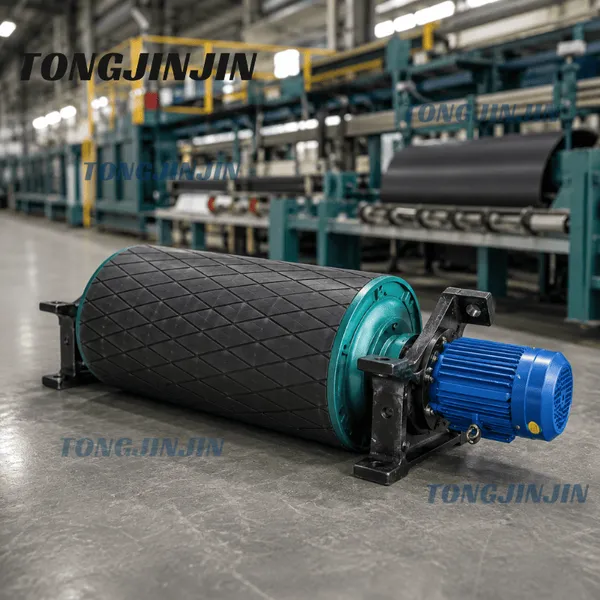

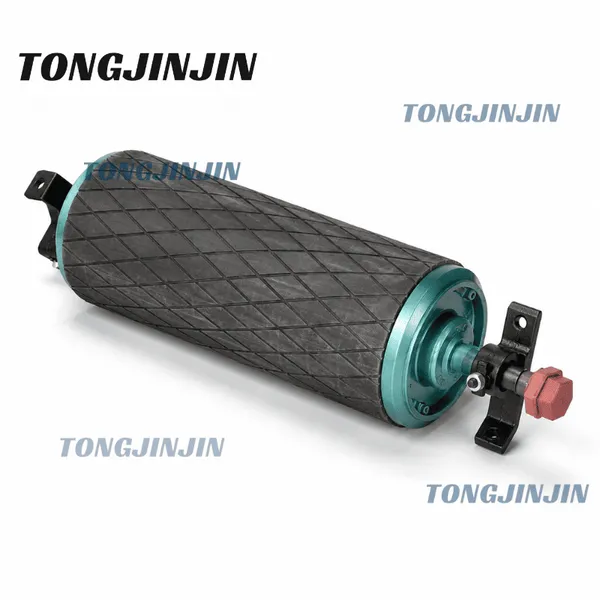

Electric Conveyor Roller for Belt Conveyor Systems with Compact Drive and Stable Operation
⚙️ Electric Conveyor Roller for Belt Conveyor Systems
📝 Product Description
Electric Conveyor Roller is a compact drive component used in belt conveyor systems. It combines driving power with roller rotation, helping the conveyor belt move materials smoothly and continuously.
Compared with traditional external motor and coupling structures, the electric roller has a more compact layout and can save installation space. It is suitable for material handling equipment, conveyor lines, logistics systems, packaging lines, warehouse transfer systems, mining conveyors, and industrial belt conveyor applications.
The roller surface can be designed with rubber coating, diamond pattern, smooth surface, or customized surface treatment according to belt type, friction requirement, and working environment. It can help improve belt traction, reduce slipping, and support stable conveying performance.
TONGJINJIN Electric Conveyor Roller can be selected according to roller diameter, roller length, motor power, voltage, speed, surface coating, shaft structure, and installation method.
📊 Basic Product Parameters
| Item | Description |
|---|---|
| Product Name | Electric Conveyor Roller |
| Other Name | Motorized Roller / Electric Drive Roller / Conveyor Drum |
| Main Function | Driving conveyor belt movement |
| Structure | Roller body, motor, shaft, bearing, end cover |
| Surface Type | Rubber coated / Diamond pattern / Smooth surface optional |
| Material | Carbon steel / Stainless steel optional |
| Voltage | Customizable according to project requirement |
| Speed | Customizable |
| Roller Diameter | Customized according to conveyor size |
| Roller Length | Customized according to belt width |
| Application | Belt conveyor, logistics conveyor, material handling system |
| Customization | Available for size, surface, power, voltage, and mounting style |
🔩 Main Structure
The electric conveyor roller is mainly composed of:
✅ Roller shell
✅ Built-in or connected drive motor
✅ Shaft and bearing support
✅ End cover
✅ Rubber coating or surface layer
✅ Cable or terminal connection
✅ Mounting bracket or fixing structure
The roller rotates under motor power and drives the conveyor belt through friction between the roller surface and the belt. The surface pattern can increase contact force and help reduce belt slipping during operation.
✅ Product Features
✅ Compact Drive Structure
The electric roller integrates driving and rotation functions, helping reduce external transmission parts and saving installation space.
✅ Stable Belt Operation
The roller provides continuous driving force for belt conveyor systems, supporting smooth material transfer.
✅ Rubber Coated Surface Optional
Rubber coating or diamond pattern surface can improve belt friction and help reduce slipping.
✅ Lower Maintenance Requirement
Compared with complex external drive systems, the electric roller has a simpler installation structure and fewer exposed transmission parts.
✅ Customizable Design
Roller diameter, length, speed, voltage, motor power, shaft type, and surface treatment can be customized according to conveyor requirements.
✅ Wide Conveyor Application
Suitable for belt conveyors used in logistics, packaging, warehouse transfer, mining, building materials, recycling, and industrial material handling lines.
🏗️ Application Areas
Electric Conveyor Roller can be used in many conveyor systems, including:
✅ Belt conveyor systems
✅ Logistics sorting lines
✅ Warehouse material handling
✅ Packaging production lines
✅ Mining material conveyors
✅ Building material conveying lines
✅ Recycling equipment
✅ Food and light industrial conveyor systems
✅ Automated production lines
✅ Bulk material transfer equipment
It is suitable for conveying cartons, bags, parcels, light bulk materials, industrial parts, and other materials depending on belt design and conveyor structure.
🔍 How to Choose the Right Electric Conveyor Roller
Before ordering, customers should confirm the actual working condition first.
Important information includes:
✅ Conveyor belt width
✅ Required roller length
✅ Roller diameter
✅ Required motor power
✅ Voltage and frequency
✅ Belt speed requirement
✅ Material weight and load condition
✅ Working environment: indoor, outdoor, dusty, humid, or high temperature
✅ Surface requirement: smooth, rubber coated, diamond pattern, anti-slip
✅ Installation method and shaft structure
✅ Quantity required
If the roller is used in heavy-duty conveying systems, customers should also confirm load capacity, belt tension, working hours, and material impact condition.
🛠️ Maintenance Suggestions
During daily operation, operators can check:
✅ Whether the roller surface is worn
✅ Whether the belt slips during conveying
✅ Whether the roller rotates smoothly
✅ Whether the bearing position has abnormal noise
✅ Whether the motor temperature is normal
✅ Whether the cable or terminal connection is secure
✅ Whether the mounting bolts are loose
✅ Whether rubber coating has cracking or peeling
If the conveyor belt slips, runs unevenly, or produces abnormal noise, the roller surface, bearing, motor, belt tension, and installation alignment should be checked together.
📌 Why Surface Design Matters
The roller surface directly affects belt traction.
A smooth steel roller may be suitable for some light-duty applications, while rubber coating or diamond pattern surface can provide stronger friction for conveyor belts. For dusty, humid, or inclined conveying conditions, anti-slip surface treatment is especially important.
Customers can choose different surface designs according to belt material, conveyed product, working load, and conveyor angle.
🏭 TONGJINJIN Supply Range
TONGJINJIN provides electric conveyor rollers and related conveyor components for industrial material handling systems. We can also supply screw conveyors, gear reducers, motors, conveyor spare parts, concrete batching plant accessories, silo parts, valves, pneumatic components, and customized industrial machinery parts.
Electric conveyor rollers can be customized according to roller size, motor power, voltage, speed, coating type, shaft structure, and installation requirement.
