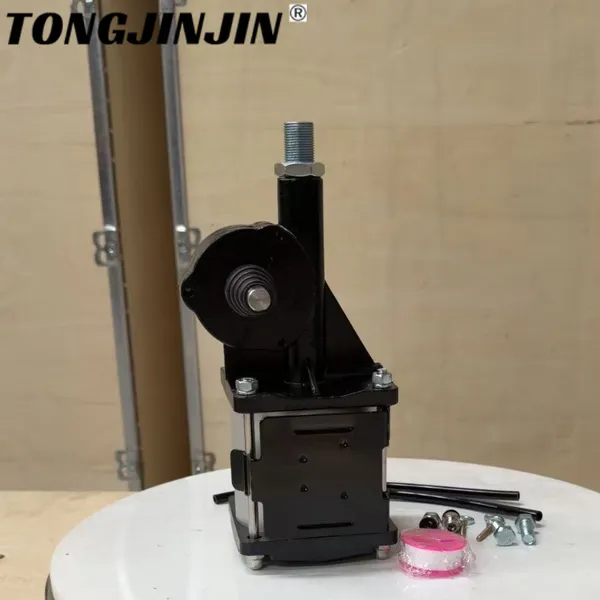

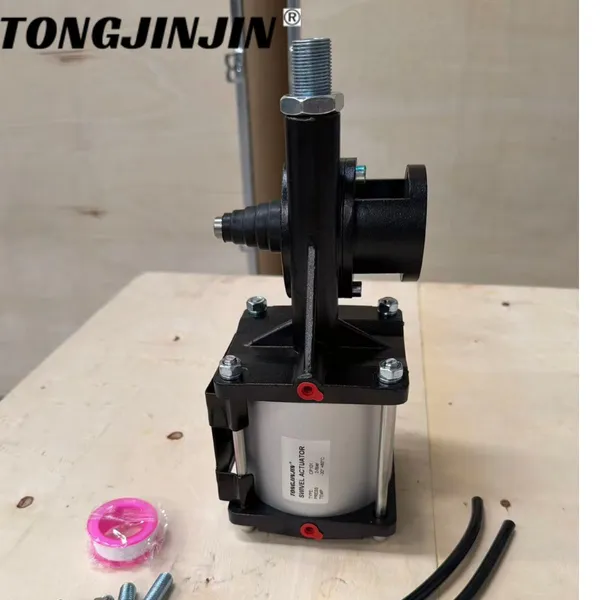

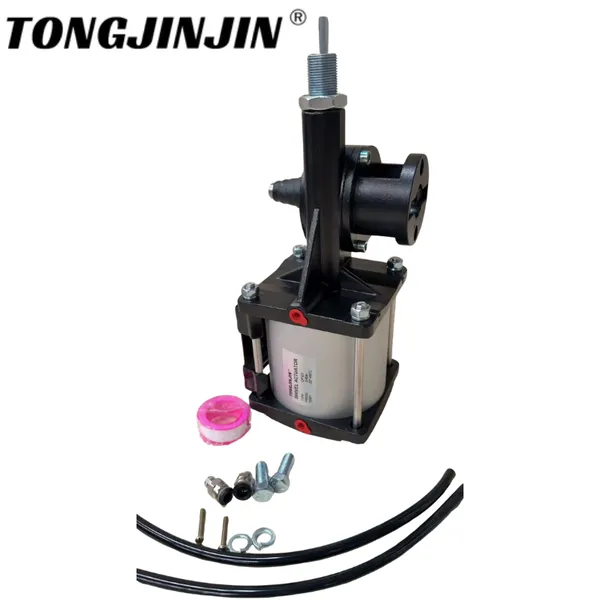

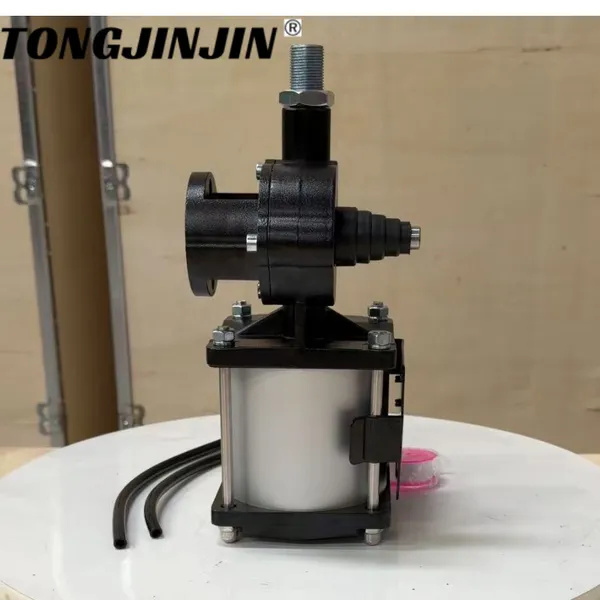

CP Series Pneumatic Valve Actuators
Product Description
CP Series Pneumatic Valve Actuators are designed for 90° opening and closing of VFS Butterfly Valves, VSS Ball Segment Valves, and DVA Diverter Flap Valves. With stable pneumatic performance, compact structure, and flexible accessory options, they are widely used in bulk material handling and industrial valve control systems. The actuators operate at 2–8 Bar and feature a splined shaft coupling bush according to DIN 5482, allowing reliable installation and interchangeability with compatible other actuator types.
Product Features
Designed for 90° valve opening and closing
Suitable for VFS Butterfly Valves, VSS Ball Segment Valves, and DVA Diverter Flap Valves
Working pressure: 2–8 Bar
Splined shaft coupling bush according to DIN 5482
Compact design, stable operation, and easy installation
Optional switch box and solenoid valve available
Compatible with multiple coil voltages for different control systems
Available Models
CP063
CP101
CP126

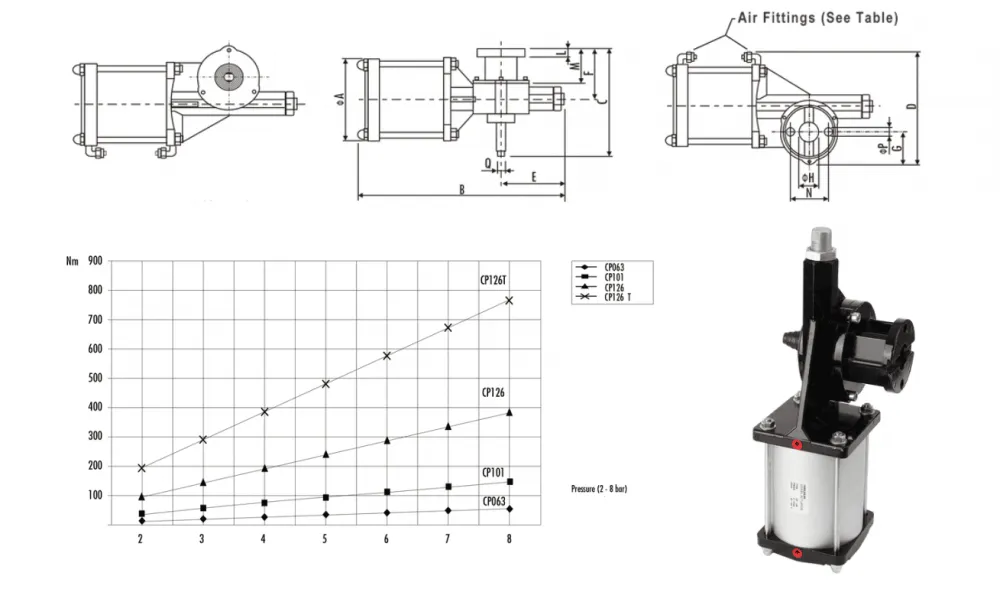

Technical Data
| Model | Air Consumption | Operation Time at 6 bar | Weight |
|---|---|---|---|
| CP063 | 2.0 (x2) | 0.8 s | 2.8 kg |
| CP101 | 4.4 (x2) | 0.8 s | 3.7 kg |
| CP126 | 6.3 (x2) | 0.5 s | 9.5 kg |
Optional Accessories
| Item | Options |
|---|---|
| Switch Box | MIC23 |
| 5/2 Solenoid Valve | 4V210 / V5V80 / V5V40 |
| Solenoid Coil | 24V / 48V / 110V / 220V, DC / 50Hz AC |
MIC23 Switch Box Data
| Item | Description |
|---|---|
| Product Name | MIC23 Micro Signal Switch Box |
| Function | Output signal feedback for actuator opening and closing |
| Protection Grade | IP67 / NEMA4&4X standard, IP68 optional |
| Mechanical Switch | 2SPDT |
| Contact | 250VAC / 16A, 400VAC / 10A |
| Signal-wire Interface | PG9 |
| Terminal | 5 points (0.08–2.5 mm²) |
Actuator Selection for Butterfly Valve
| Butterfly Valve Size | Light Load | Heavy Load |
|---|---|---|
| V*FS100 | CP101 | CP101 |
| V*FS150 | CP101 | CP101 |
| V*FS200 | CP101 | CP101 |
| V*FS250 | CP101 | CP126 |
| V*FS300 | CP101 | CP126 |
| V*FS350 | CP126 | CP126 |
| V*FS400 | CP126 | CP126 |
Application
CP Series actuators are ideal for pneumatic control of butterfly valves, ball segment valves, and diverter flap valves in cement, powder handling, silo, and bulk material conveying systems. They provide reliable quarter-turn actuation and can be combined with switch boxes and solenoid valves for automated control.
