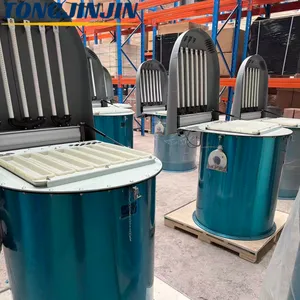

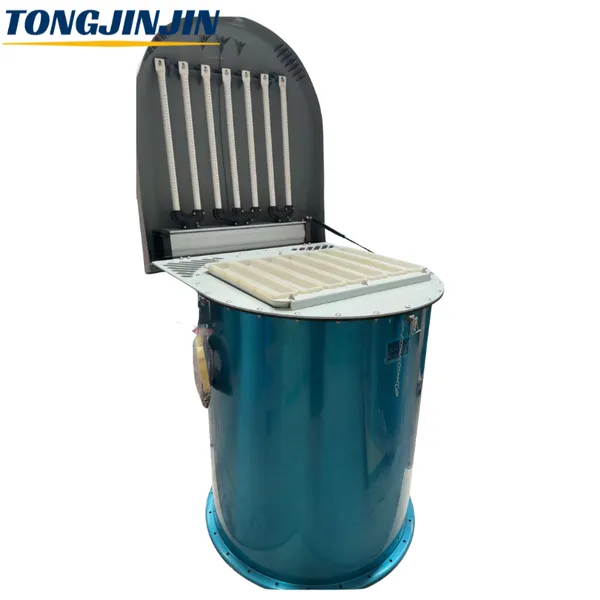

Pulse Silo Dust Collector (R03 Series)
Model: SILOR03E
Short Description
The R03 Silotop Dust Filter is a compact, stainless steel pulse-jet dust collector designed specifically for silo top installation. It features an integrated pulse cleaning system, vertical filter elements, and weather protection for reliable, low-maintenance dust control on ventilated or pneumatically filled silos.
Product Overview
The R03 Silotop Dust Filter is a cylindrical silo-mounted dust collector, built for silo venting and pneumatic filling applications. Its all-stainless steel body, integrated bottom flange, and compact design allow direct installation on silo tops without extra space. The integrated pulse backflush cleaning system ensures continuous, maintenance-free operation, preventing dust buildup during loading/unloading.
Key Features
Stainless steel body (SUS430 / SUS304 / SUS316 optional)
Integrated pulse jet cleaning in weatherproof cover
Vertical filter elements with venturi shafts for high efficiency
Quick-release filter fasteners for easy replacement
Anti-intrusion grille + gas cylinder-assisted cover opening
Low air consumption and compact footprint
Technical Specifications (SILOR03E)
| Parameter | Value |
|---|---|
| Model Code | SILOR03E |
| Body Diameter | Φ 800 mm |
| Filter Surface | 24.5 m² |
| Air Consumption | 4.5 Nm³/h |
| Max. Height (Closed) | 1150 mm |
| Max. Height (Open) | 1830 mm |
| Weight | 79 kg |
| Body Material (E) | SUS430 (optional: SUS304 / SUS316) |
Applications
Concrete batching plants (cement, fly ash silos)
Bulk material storage silos (powders, granules)
Pneumatic conveying systems
Ventilated silo discharge operations
Contact Information
Zhengzhou Tongjin Machinery Equipment Co., Ltd.

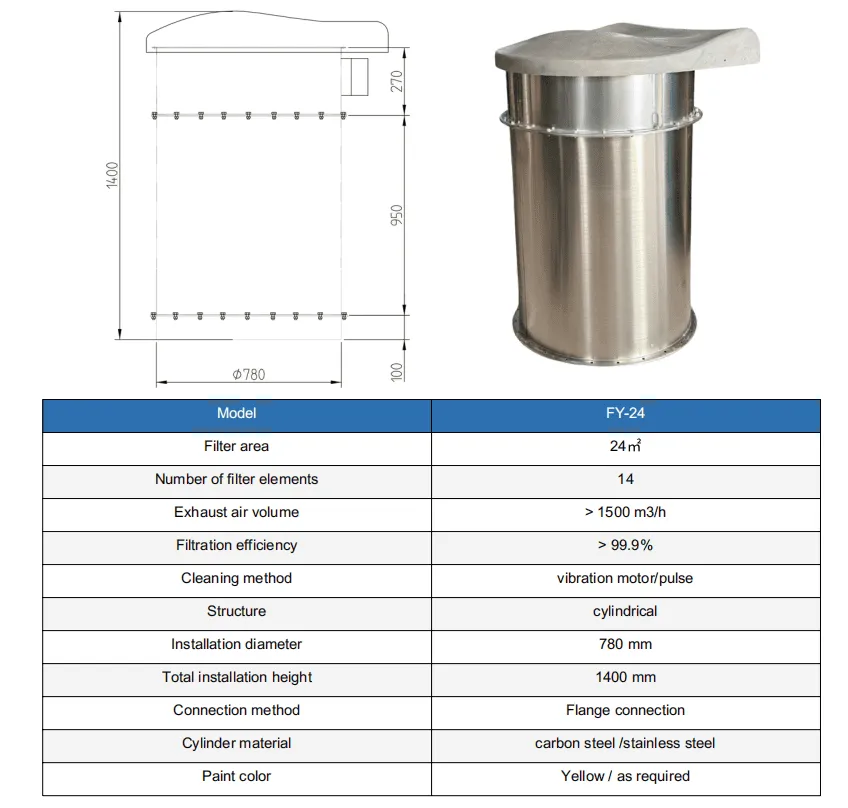

FY-24 Series Silo Venting Filter
Filter area: 24 m²; number of filter elements: 14; exhaust air volume: >1500 m³/h; filtration efficiency: >99.9%; cleaning method: vibration motor / pulse; structure: cylindrical; installation diameter: 780 mm; total installation height: 1400 mm; connection: flange; cylinder material: carbon steel / stainless steel.

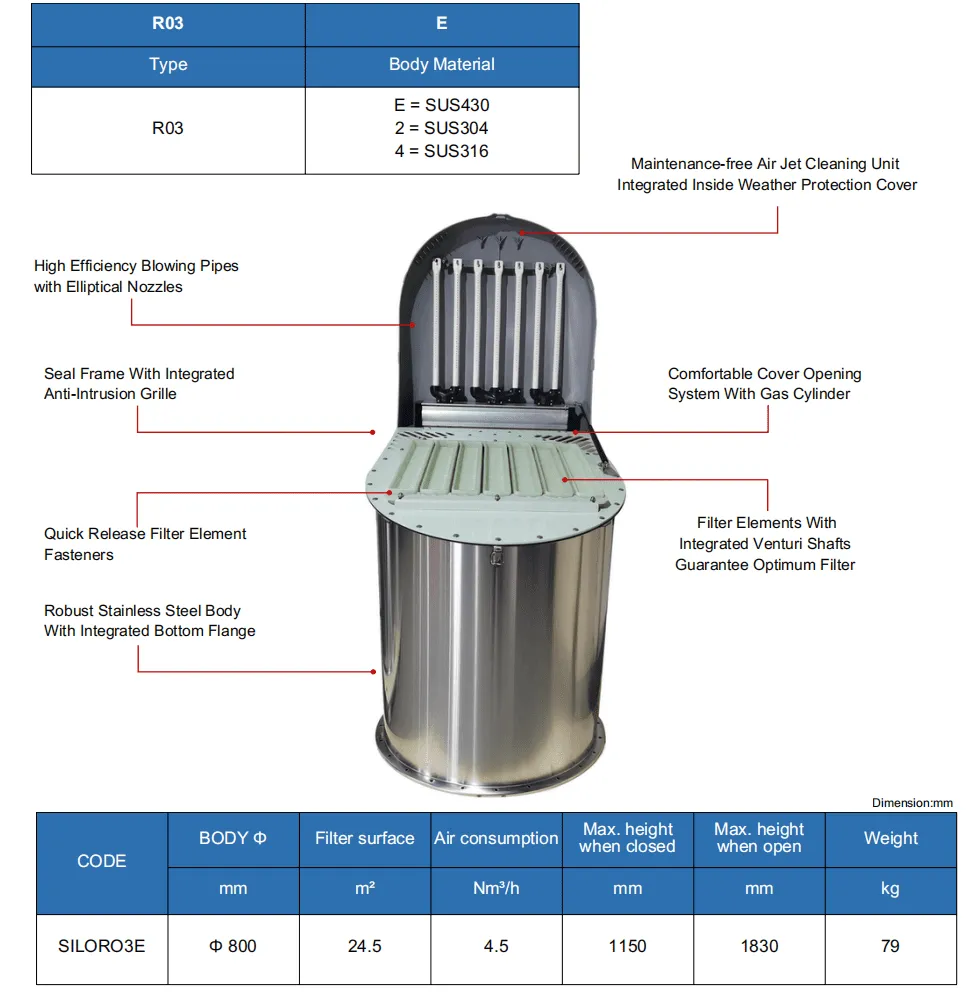

R03 Series Silo Venting Filter
Body diameter: Φ800 mm; filter surface: 24.5 m²; air consumption: 4.5 Nm³/h; max. height when closed: 1150 mm; max. height when open: 1830 mm; weight: 79 kg. Body material options include SUS430 / SUS304 / SUS316.

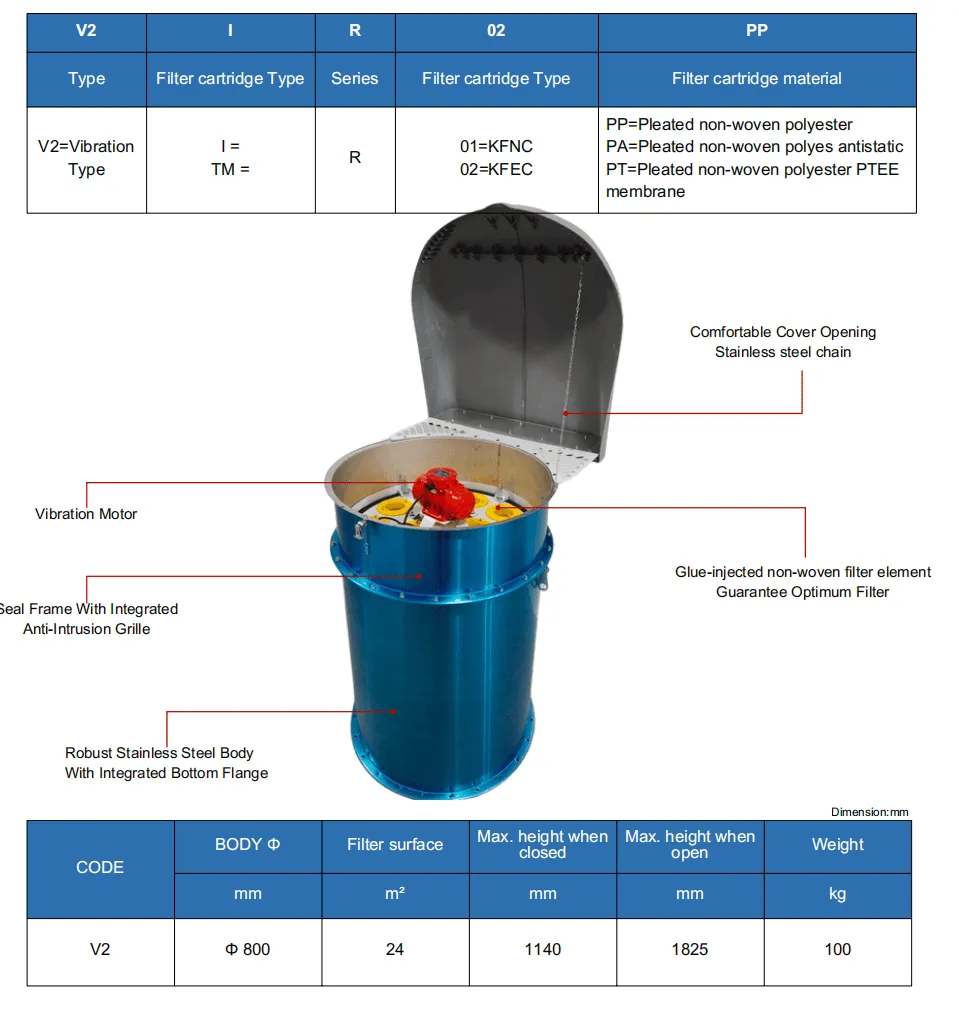

V2 Series Silo Venting Filter
Body diameter: Φ800 mm; filter surface: 24 m²; max. height when closed: 1140 mm; max. height when open: 1825 mm; weight: 100 kg. This model uses a vibration cleaning structure and stainless steel body with integrated bottom flange.

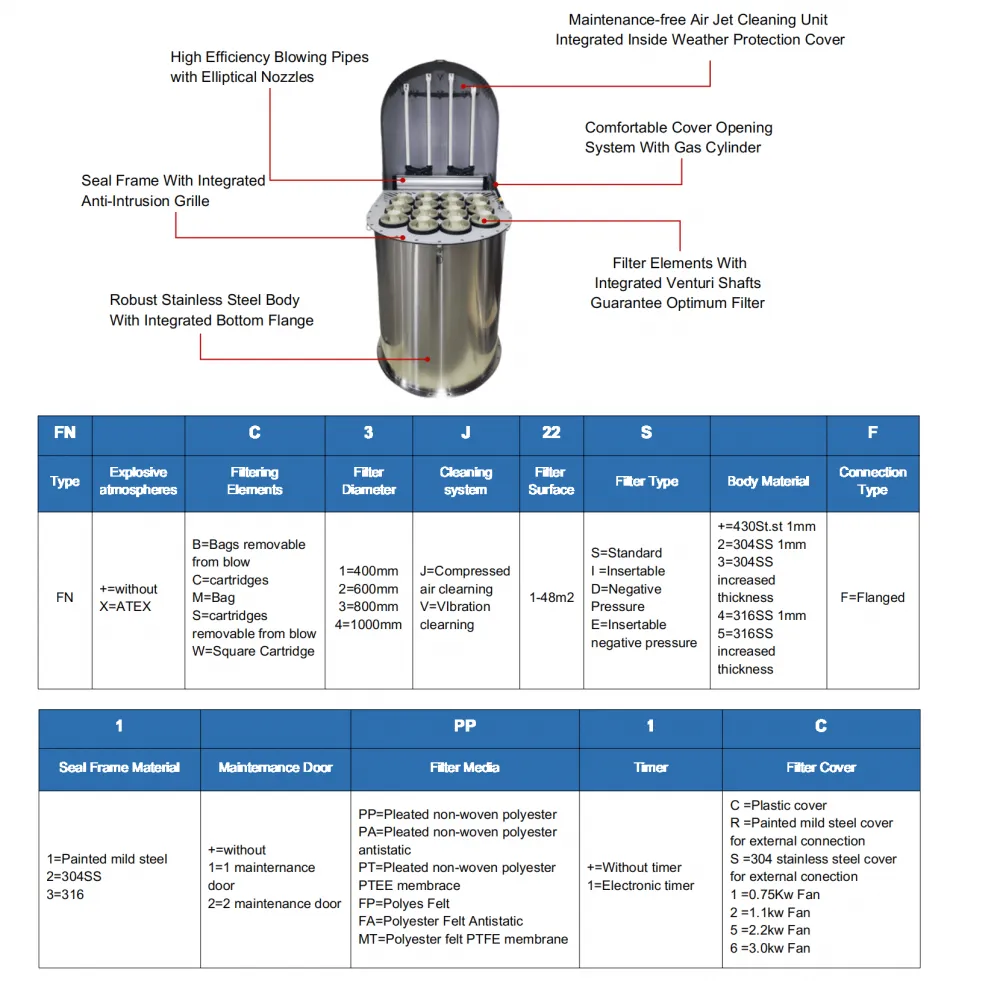

FN Series Silo Venting Filters
FN series are cylindrical dust collectors for pneumatically filled silos. The brochure shows configurable options including filter diameter 400 / 600 / 800 / 1000 mm, filter surface 1–48 m², compressed air or vibration cleaning, flanged connection, and body material options in 430 / 304 / 316 stainless steel.
