XA Shaft Coupling for Screw Conveyor
Product Description

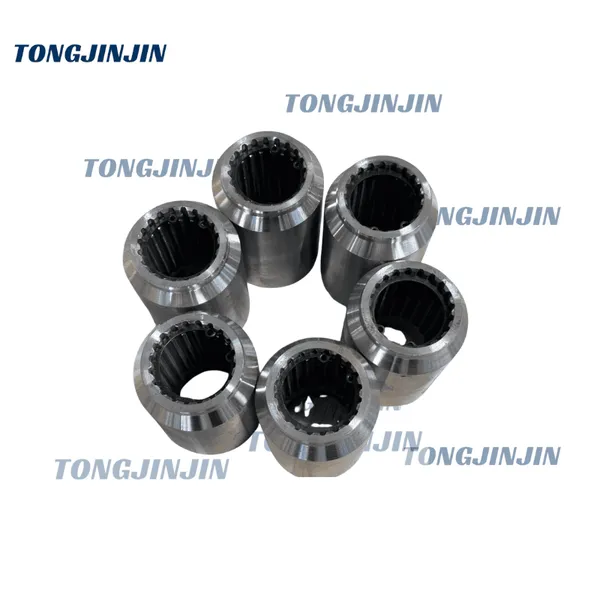

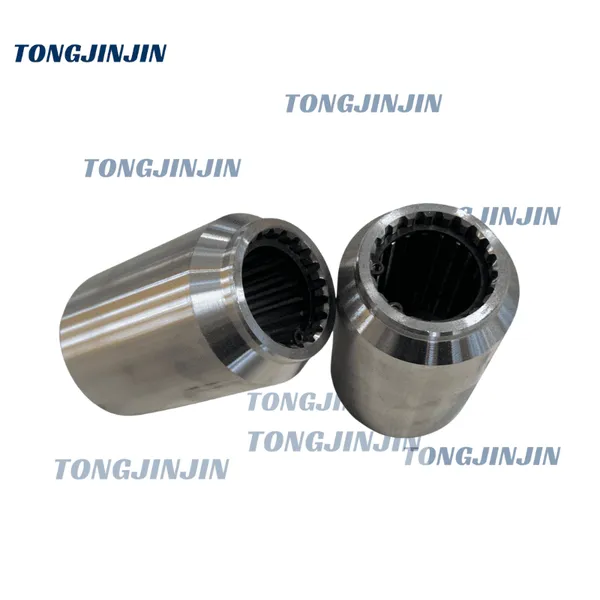

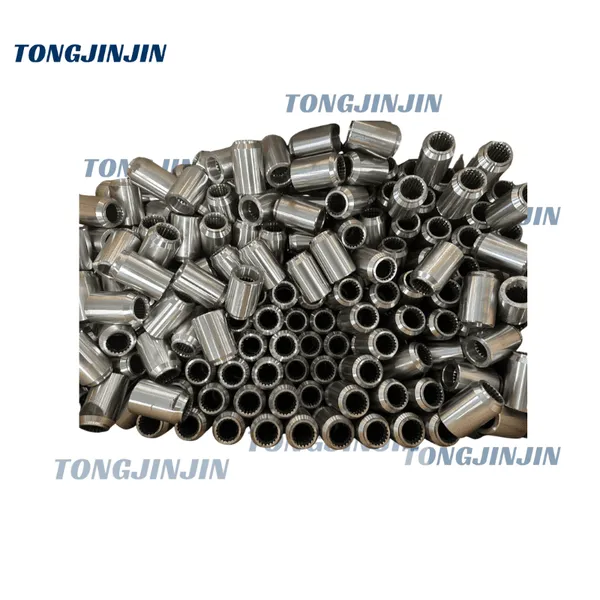

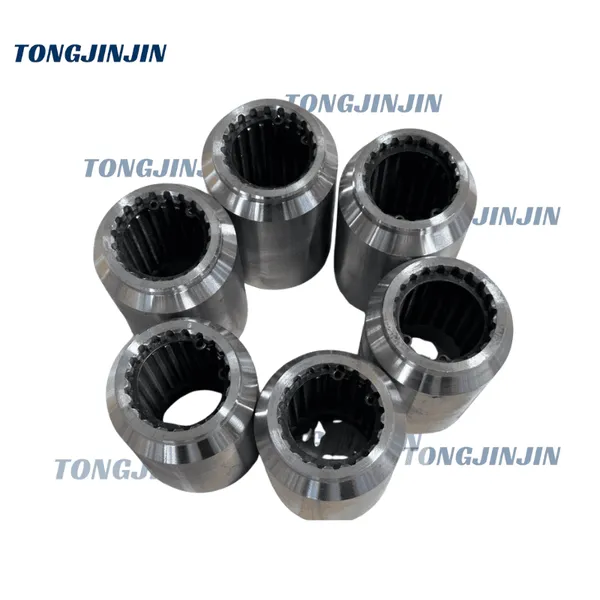

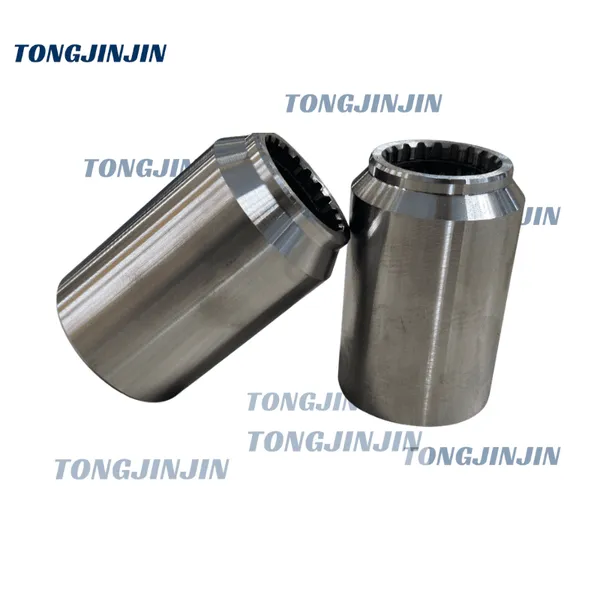

XA Shaft Coupling is welded to both ends of the inner tube of screw conveyors for connection. It is suitable for various types of screw conveyors and provides a reliable solution for shaft transmission and component connection in bulk material handling systems. The XA series includes different structure options and sizes to match different screw conveyor diameters and inner tube dimensions.
The brochure shows three structure options in the XA series: A = standard, L = with pin hole, and D = internal and external splines. It also shows matching size groups for different screw conveyor diameters and inner pipe diameters, making the product suitable for different screw conveyor configurations.
Product Features
Designed for screw conveyor shaft connection
Welded to both ends of the inner tube
Suitable for various types of screw conveyors
Multiple structure options available
Different size configurations for different conveyor diameters
Reliable connection for bulk material handling equipment
Available Types
XA-A: Standard
XA-L: With pin hole
XA-D: Internal and external splines
Available Models
| Model | Teeth | A | B | C | T | Weight |
|---|---|---|---|---|---|---|
| XAA025T0421 | 15 | 28×25 | 70 | 42 | 42 | 0.37 kg |
| XAA025T0481 | 15 | 28×25 | 70 | 48 | 48 | 0.45 kg |
| XAA040T0601 | 20 | 40×36 | 92 | 60 | 60 | 1.1 kg |
| XAA040T0631 | 20 | 40×36 | 92 | 63 | 63 | 1.3 kg |
| XAA040T0701 | 20 | 40×36 | 92 | 70 | 70 | 1.8 kg |
| XAA040T0761 | 20 | 40×36 | 92 | 76 | 76 | 2.3 kg |
| XAA040T0891 | 20 | 40×36 | 140 | 89 | 89 | 6.5 kg |
| XAA040T0892 | 20 | 40×36 | 92 | 89 | 89 | 3.3 kg |
| XAA040T1141 | 20 | 40×36 | 140 | 114 | 114 | 9.1 kg |
| XAA060T0891 | 28 | 60×55 | 140 | 89 | 89 | 7.5 kg |
| XAA060T1141 | 28 | 60×55 | 140 | 114 | 114 | 8.4 kg |
Size Reference
The brochure shows XA shaft coupling coding for different screw conveyor and inner pipe diameter ranges, including:
Screw conveyor size groups: Φ114 / 139, Φ168 / 193 / 219 / 273, Φ273 / 323
Inner pipe diameter options: 42 / 48 / 60 / 114 mm
Application
XA Shaft Coupling is widely used in screw conveyor systems for connecting shaft components inside the inner tube. It is suitable for bulk material conveying equipment used in cement, powder, grain and other industrial material handling systems. This application statement about “bulk material handling” is an inference based on the brochure’s screw conveyor product context.
