Tubular Screw Conveyors for Conveying Cement, Powdered and Bulk Materials
Product Description
Tubular screw conveyors are continuous conveying equipment widely used in industries such as metallurgy, building materials, chemicals, food processing, and machinery manufacturing. They are suitable for conveying powdery, granular, and other bulk materials, and are commonly used in cement plants, mixing plants, silos, and bulk material handling systems.
This screw conveyor system is designed for stable material transport and offers a complete set of drive units and spare parts options to accommodate different diameters and operating conditions. The standard feeder has access ports below the first inlet and under each hanger bearing for easy maintenance.
Key Features
Suitable for powders, granules, and bulk materials
Widely used in the cement, building materials, chemical, and food industries.
Stable continuous conveying performance
Easy-to-maintain access port design
Complete spare parts supply, drive options available.
Suitable for screw conveyors and tubular structures of different diameters
Optional Models/Series
Screw Conveyor Types
ES Tubular Screw Conveyor
TU Tubular Screw Conveyor
TC Tubular Screw Conveyor
TS Tubular Screw Conveyor
Compatible Gearboxes
M41: Suitable for Φ114 and Φ139 screw conveyors
M43: Suitable for Φ114, Φ139, Φ168, Φ193, Φ219
M45: Suitable for Φ168, Φ193, Φ219, Φ273
M47: Suitable for Φ193, Φ219, Φ273, Φ323
M49: Suitable for Φ219, Φ273, Φ323
RM45 / RM47 / RM49: Suitable for ES, TU, TC, and TS type tubular screw conveyors
S47 / S49: Suitable for large screw conveyor drive configurations

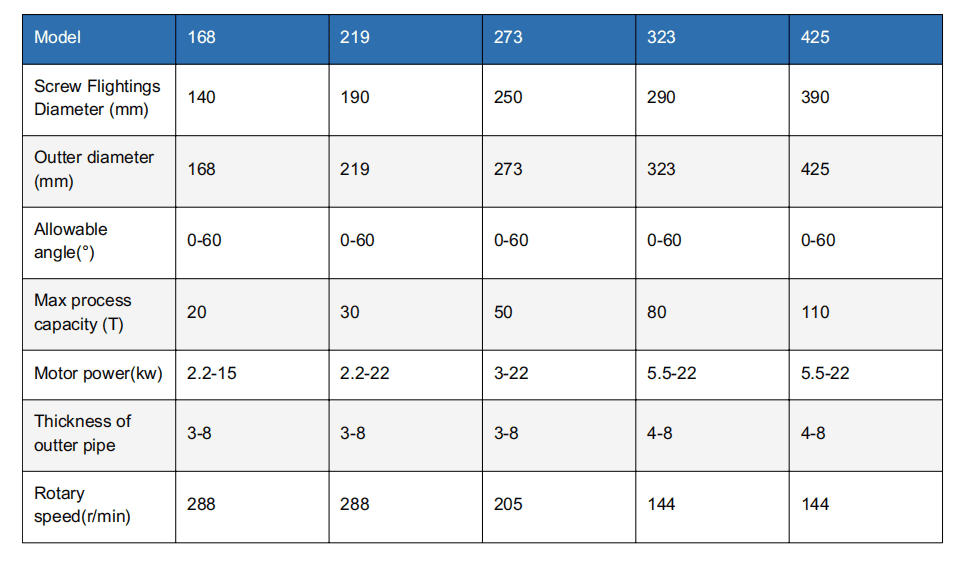

Optional Sizes
available screw conveyor diameters include:
Φ114 / Φ139 / Φ168 / Φ193 / Φ219 / Φ273 / Φ323
The TU type also includes Φ406 in the relevant hanger bearing configuration.

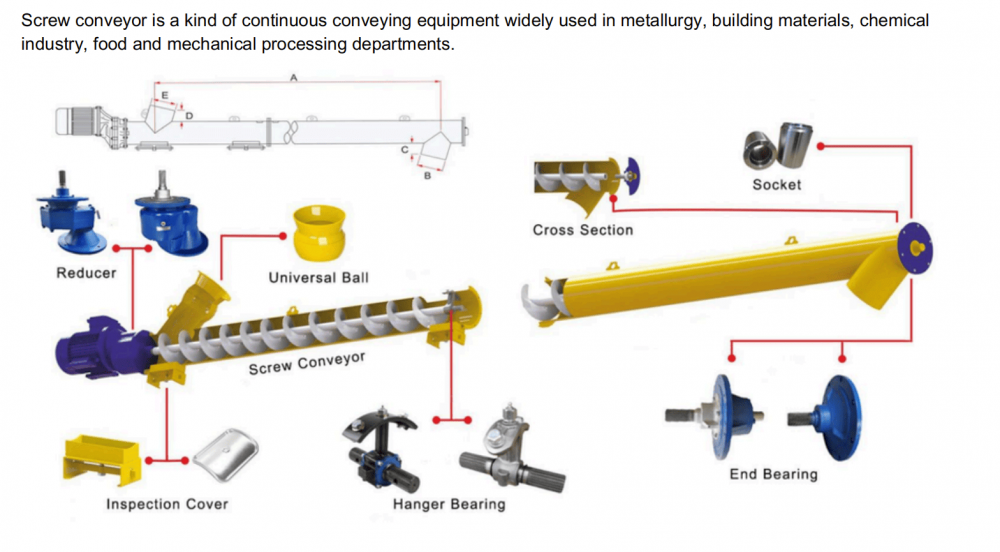

Spare Parts Supply
Gearbox
Gearbox Seals
Inspection Hatch
Couplings
Hanger Bearings
End Bearings
Flanges
Propellers
Motors
Applications
Suitable for:
Cement Plants
Concrete Batching Plants
Silos
Powder Conveying Systems
Bulk Material Conveying Lines
Chemical and Food Processing Industries
