VFS Butterfly Valve for Powder and Granular Materials
Short Product Description
VFS Butterfly Valve is widely used for shutting off bulk material silos, hoppers and containers, and for interrupting the flow of powdery or granular materials in both mechanical and pneumatic conveying systems. It is available in detachable single flange, single flange and double flange versions, with multiple disc and seal material options for different working conditions.
Main features
Designed for powder and granular material handling systems
Suitable for silos, hoppers, containers, mechanical conveying and pneumatic conveying
Available in three connection structures: detachable single flange, single flange and double flange
Size range available from DN100 to DN400
Disc material options: polyurethane, cast iron, aluminum, stainless steel
Seal material options: NBR, EPDM, silicon, food-grade rubber
Valve body and yoke made of cast aluminum alloy, with nylon shaft sleeve
Can be equipped with CP pneumatic actuator, MIC23 switch box, 4V210 solenoid valve, and 24VDC / 110VAC / 220VAC coil
For lumpy, granular or fibrous products, cast iron or AISI304 disc is recommended for better performance
Product Features
The VFS Butterfly Valve is one of the most frequently used shut-off devices for bulk material handling. It is specially designed for closing bulk material silos, hoppers or containers and for controlling the flow of powdery and granular materials. The product offers flexible configuration with different body structures, disc materials and seal materials, making it suitable for various industrial applications.
Its main components include cast aluminum alloy valve body, cast aluminum alloy yoke, and nylon shaft sleeve, which provide a lightweight yet durable structure. Depending on the working condition, customers can choose polyurethane disc, cast iron disc, aluminum disc or stainless steel disc, together with NBR, EPDM, silicon or food-grade rubber sealing ring.
Available Types
VFS: Detachable single flange
V1FS: Single flange
V2FS: Double flange
Available Sizes
DN100 / DN150 / DN200 / DN250 / DN300 / DN350 / DN400
Material Options
Disc Material
Polyurethane
Cast iron
Aluminum
Stainless steel
Seal Material
NBR
EPDM
Silicon
Food rubber

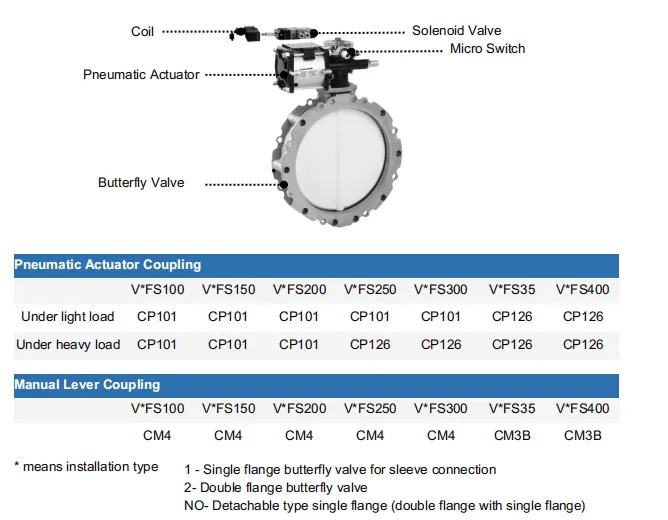

Optional Accessories
CP063 / CP101 / CP126 pneumatic actuator
MIC23 switch box
4V210 solenoid valve
24VDC / 110VAC / 220VAC coil
Application
Suitable for:
Cement silos
Powder storage systems
Bulk material hoppers
Mechanical conveying lines
Pneumatic conveying lines
