Custom Divided Ring Gear With Helical Tooth Profile for Smooth Operation

Product Spotlights

Custom-engineered divided ring gear featuring a helical tooth profile for exceptionally smooth and quiet operation. Offers high load capacity, simplified assembly/maintenance via segmented design, and full customization of size, material, and specifications. Precision manufactured in a certified facility for reliable performance in demanding industrial applications.

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Steel or alloy, customizable

Gear Type:

Helical tooth profile ring gear

Configuration:

Divided/custom split design

Contact Supplier Request Quote Chat Now

Henan San Kuang Machinery Technology Co., Ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Steel or alloy, customizable

Gear Type Helical tooth profile ring gear

Configuration Divided/custom split design

Application Industrial machinery, smooth operation

Standard Customizable to client specifications

Size Range Diameter and thickness customizable

Function Smooth power transmission

Processing Precision machining available

As a leading manufacturer specializing in precision mechanical components, Henan San Kuang Machinery Technology Co., Ltd. leverages over a decade of expertise since its establishment in 2014 to deliver superior Custom Divided Ring Gears with Helical Tooth Profiles. Our focus is on engineering components that ensure exceptionally smooth operation, reduced noise, and enhanced load capacity for demanding industrial applications. We understand that reliable power transmission is critical to your machinery's performance and longevity, and our custom gears are designed to meet these exacting requirements.

This product represents a sophisticated solution for applications requiring high torque transmission with minimal vibration. The helical tooth profile is key to its performance, offering significant advantages over straight-cut gears. Combined with a divided or split ring design, it provides unique benefits in assembly, maintenance, and customization. Below, we detail the product's features, specifications, and the tangible benefits it brings to your operations.

Helical Tooth Profile Advantage: The angled teeth engage gradually, leading to smoother meshing, quieter operation, and higher load-bearing capacity compared to spur gears. This reduces shock loads and wear on associated components.
Custom Divided Design: The ring gear is manufactured as separate segments or a split design. This allows for easier installation around large shafts or within confined spaces, simplifies replacement of worn sections, and enables customization of the overall diameter and segment count.

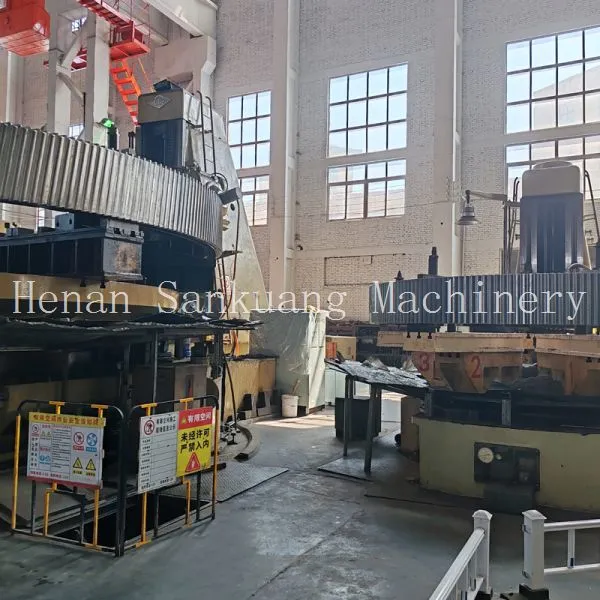

Precision Manufacturing: Utilizing advanced CNC machining and grinding techniques in our 10,000-30,000 square meter facility, we ensure high dimensional accuracy, excellent surface finish, and consistent tooth geometry for reliable performance.
Material Flexibility: We work with various steel grades and alloys to match your application's needs for strength, hardness, and corrosion resistance. Material selection is a key part of the customization process.
Application-Oriented Engineering: Each gear is designed considering specific operational parameters such as torque, speed, operating environment, and mating gear characteristics to optimize performance.

The technical specifications of our Custom Divided Helical Ring Gear can be tailored extensively. The following table outlines common customizable parameters and typical ranges or options.

Parameter	Description / Typical Range	Customization Notes
Outer Diameter	From 500 mm to 3000 mm or larger	Determined by application space and power requirements.
Number of Segments	2, 4, 6, or more divisions	Affects assembly flexibility and cost.
Helix Angle	Commonly 15° to 30°	Optimizes smoothness and axial thrust balance.
Module / Tooth Size	Module 5 to Module 20 or equivalent	Defines tooth strength and pitch.
Material Grade	Carbon steels, alloy steels (e.g., 4140, 4340), stainless options	Selected based on hardness, toughness, and environment.
Hardness Treatment	Heat treatment (quenching & tempering), case hardening available	Enhances wear resistance and lifespan.
Accuracy Class	AGMA or DIN standards, customizable precision levels	Tailored to operational tolerance requirements.

Benefits for Your Business:

Enhanced Operational Smoothness: The helical design drastically reduces vibration and noise, leading to a more stable machine operation and improved working environment.
Increased Durability and Load Capacity: Gradual tooth engagement distributes load more evenly, reducing peak stresses and extending gear and system life.
Simplified Maintenance and Repair: The divided design allows for selective replacement of damaged segments without dismantling entire assemblies, saving time and cost.
Design Flexibility: Customizing diameter, number of parts, and material allows the gear to fit unique mechanical layouts and performance specs.
Reliable Supply from an Established Partner: With our substantial factory size and robust quality management systems, we ensure consistent production capability and product reliability.

Our commitment to quality is backed by a comprehensive management system, including ISO9001 certification, ensuring every custom gear meets stringent specifications. Supported by an annual export value reflecting strong international trust, and serving global markets from North America to Southeast Asia, we have proven our ability to deliver complex custom components reliably. Our ports of shipment offer logistical flexibility for timely delivery. We invite you to leverage our engineering expertise and manufacturing capacity to solve your challenging power transmission needs. Contact us with your application details to begin the customization process.

Frequently Asked Questions (FAQ)

What is the primary advantage of a helical tooth profile over a straight-cut profile?
Helical teeth engage gradually, resulting in smoother, quieter operation and higher load capacity due to more continuous contact and reduced impact forces.
Why would I choose a divided or split ring gear design?
A divided design facilitates installation around existing large shafts or in tight spaces, allows for easier transportation of large diameters, and enables economical replacement of only worn sections.
Can you manufacture gears to specific international accuracy standards?
Yes. Our precision machining processes allow us to produce gears meeting various AGMA, DIN, or ISO accuracy classes based on your provided specifications.
What materials are typically used, and can I request a special alloy?
Common materials include medium-carbon and alloy steels for strength and hardness. Special alloys, including stainless steels or other requested grades, can be evaluated and used if suitable for the application.
How is the gear segmented, and how are the segments joined?
Segments are precision-machined as individual pieces. They are typically joined via bolted flanges, keyed connections, or other mechanical fastening methods designed to maintain alignment and integrity.
What information do I need to provide for a custom order?
Key details include: required outer diameter, number of segments, torque/speed requirements, mating gear details, operating environment, preferred material, and any applicable drawings or standards.
What heat treatment options are available to improve gear life?
Options include quenching and tempering for overall hardness, case hardening for a hard wear-resistant surface, or specific treatments like nitriding. Selection depends on material and service conditions.
What is your typical production lead time for a custom divided helical ring gear?
Lead time depends on complexity, size, and material. After finalizing design specifications, typical production ranges from several weeks to a few months. We provide estimated timelines during quotation.
