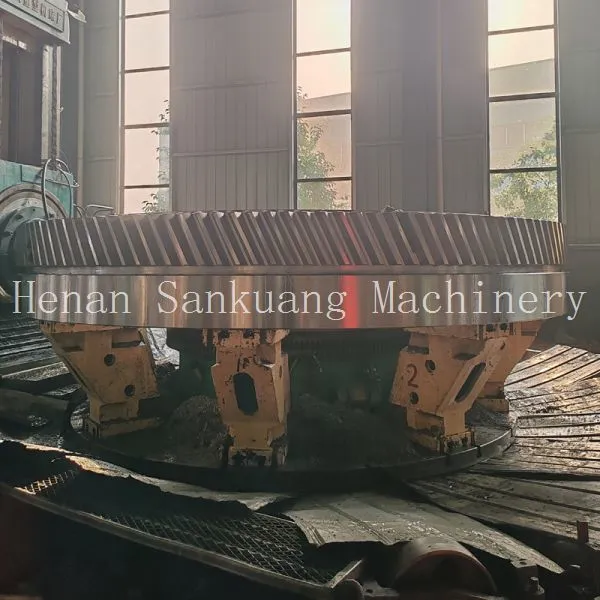

Help CenterSplit Ring Gear Assembly With Ground Teeth for High-Speed Applications
Product Spotlights
Related Products
-
Segmented Ring Gear for Rotary Indexing Tables in Automated Assembly LinesNegotiableMOQ: 1 Piece -
Large Diameter Divided Ring Gear Fabricated From Cast IronNegotiableMOQ: 1 Piece
-
Segmented Ring Gear With 12-Month Warranty Against Manufacturing DefectsNegotiableMOQ: 1 Piece
-
Divided Ring Gear Supplied With Mill Test Report and Dimensional InspectionNegotiableMOQ: 1 Piece
-
Precision Split Ring Gear for Heavy-Duty Machinery With 1000 Nm Torque RatingNegotiableMOQ: 1 Piece
As a leading manufacturer with over a decade of experience, Henan San Kuang Machinery Technology Co., Ltd. proudly presents our advanced Split Ring Gear Assembly with Ground Teeth. Engineered specifically for demanding high-speed applications, this product represents our commitment to precision, durability, and performance. Operating from a modern facility spanning over 10,000 square meters, our team of 51-100 skilled professionals leverages stringent quality management systems to deliver components that meet the exacting standards of global industries. This gear assembly is designed to solve critical challenges in power transmission, offering exceptional accuracy and reliability where it matters most.
Our gear assembly stands out due to its unique combination of a split ring design and precision-ground teeth. The split ring configuration allows for straightforward installation and maintenance without the need for complete disassembly of surrounding machinery, significantly reducing downtime. The teeth undergo a meticulous grinding process post-heat treatment, achieving superior surface finish, exact tooth geometry, and minimal noise generation—essential attributes for high-speed operation.
Key Features & Technical Advantages:
- Optimized for High-Speed Performance: The ground tooth profile ensures minimal vibration and noise, enabling smooth operation at elevated rotational speeds, which is critical for applications like turbo-machinery, high-speed compressors, and precision drives.
- Enhanced Durability & Load Capacity: Manufactured from high-grade alloy steel and subjected to advanced heat treatment processes such as case hardening or nitriding, the gear exhibits exceptional resistance to wear, pitting, and tooth breakage.
- Superior Dimensional Accuracy: The grinding process guarantees tight tolerances on tooth spacing, profile, and lead, resulting in improved meshing characteristics, higher transmission efficiency, and reduced power losses.
- Versatile Mounting & Customization: The split ring design accommodates various shaft configurations and simplifies assembly on large or fixed shafts. Key parameters like module, number of teeth, face width, and bore diameter are fully customizable to meet specific application requirements.
- Robust Quality Assurance: Every unit is produced under a comprehensive quality control system certified to ISO 9001, IATF 16949, and ISO 14000 standards, ensuring consistent performance and reliability.
Technical Specifications Overview:
| Parameter | Details / Typical Range |
|---|---|
| Primary Material | Alloy Steel (e.g., 20CrMnTi, 42CrMo) or Custom Alloy |
| Tooth Processing | Precision Grinding after Heat Treatment |
| Gear Accuracy Grade | Up to AGMA 12 or DIN 5 (upon request) |
| Heat Treatment | Carburizing & Quenching, Nitriding (Optional) |
| Surface Hardness | HRC 58-62 (Case Hardened) |
| Core Hardness | HRC 30-40 |
| Max. Operational Speed | Designed for applications exceeding 10,000 RPM |
| Lubrication Compatibility | Synthetic Oil, Grease (Specification dependent) |
Benefits for Your Operations:
- Reduced Maintenance Costs: The ease of installation and disassembly lowers labor time and costs for inspection and replacement.
- Increased System Uptime: High reliability and durability minimize unplanned failures, keeping your production lines running.
- Improved Energy Efficiency: Precise tooth engagement reduces friction losses, contributing to lower operational energy consumption.
- Noise Reduction: The ground surface finish significantly lowers operational noise, beneficial for worker safety and environmental compliance.
- Design Flexibility: Our ability to customize dimensions and specifications allows for seamless integration into both new and existing machinery.
Frequently Asked Questions (FAQ)
-
What is the primary advantage of the split ring design?
The split ring design allows the gear to be mounted or removed from a shaft without dismantling other components, such as bearings or couplings. This feature is invaluable for maintenance and repair in space-constrained or complex assemblies, drastically reducing downtime. -
Why are ground teeth specified for high-speed applications?
Grinding removes minor imperfections and achieves a very smooth tooth surface finish after heat treatment. This results in superior meshing, lower vibration, reduced noise levels, and higher efficiency—all critical factors for stable operation at high rotational speeds. -
Can you customize the gear to our specific drawings?
Yes, customization is a core service. We can manufacture the assembly according to your provided drawings, including specific modules, tooth counts, pressure angles, bore diameters, keyway specifications, and material grades. -
What heat treatment options are available?
Common options include carburizing and quenching for high surface hardness and a tough core, and nitriding for excellent wear resistance with minimal distortion. The choice depends on your application's load, speed, and environmental conditions. -
What quality certifications support your manufacturing process?
Our production is governed by a robust Integrated Management System certified to ISO 9001 for quality, IATF 16949 for automotive standards, and ISO 14000 for environmental management, ensuring reliable and consistent output. -
What is your typical lead time for production?
Lead time varies based on order complexity and quantity. For standard specifications, it can range from 4-8 weeks. We provide detailed schedules upon receipt of your inquiry and specifications. -
Do you provide technical support during integration?
Our engineering team offers technical consultation regarding gear selection, mounting procedures, lubrication recommendations, and failure analysis to support successful integration into your system. -
What are your main export markets and shipping terms?
We serve a global clientele across North America, Europe, Asia, and other regions. Shipments are typically arranged from major Chinese ports like Shanghai, Qingdao, or Tianjin under standard international trade terms (FOB, CIF, etc.).
Backed by Henan San Kuang Machinery's decade-long expertise and a significant annual export value of US$2.5-5 Million, our Split Ring Gear Assembly is a proven solution trusted by partners worldwide. Our extensive factory operations and adherence to international standards like ISO 9001 and IATF 16949 guarantee a product that delivers on its promises of precision, durability, and performance. For engineers and procurement managers seeking to enhance their high-speed drive systems with a reliable, easy-to-maintain component, this gear assembly offers a compelling combination of technical excellence and practical benefits. Contact us today to discuss your requirements and receive a detailed quotation tailored to your needs.
