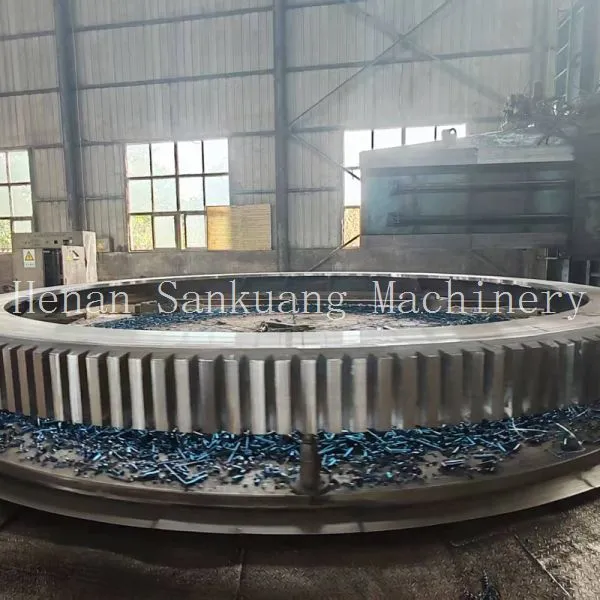

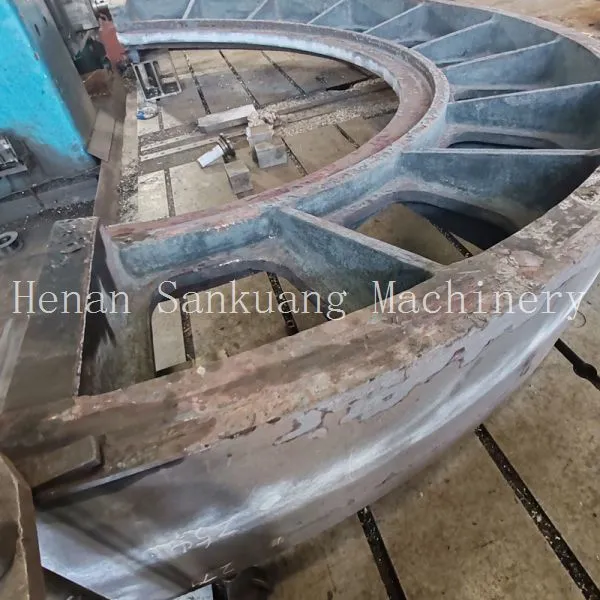

Help CenterSegmented Ring Gear in 4140 Alloy Steel for Industrial Gearboxes
Product Spotlights
Related Products
-
Precision Slewing Ring Bearings: The Core of Rotating Heavy MachineryNegotiableMOQ: 1 Unit -
High Precision Mill Girth Gear, Girth Gear & Split Girth Gear ManufacturerNegotiableMOQ: 1 Combo
-
Turntable Bearing for Solar Tracker Systems With Corrosion Resistance CoatingNegotiableMOQ: 1 Piece
-
Swing Bearing With Sealed Raceway for Harsh Environment OperationNegotiableMOQ: 1 Piece
-
Turntable Bearing With 4-Point Contact Design for High Load CapacityNegotiableMOQ: 1 Piece
As a leading manufacturer with a decade of expertise in precision power transmission components, Henan San Kuang Machinery Technology is proud to present our high-performance Segmented Ring Gears crafted from premium 4140 Alloy Steel. Engineered specifically for the demanding environments of industrial gearboxes, our ring gears are the solution for applications where large diameters, heavy loads, and reliable power transmission are non-negotiable. We understand that downtime is costly, which is why we focus on delivering durability, precision, and simplified maintenance through our innovative segmented design. Operating from our expansive 10,000-30,000 square meter facility, we combine advanced manufacturing with stringent quality controls to serve a global clientele across North America, Europe, Asia, and beyond.
Core Product Advantages & Technical Specifications:
Our segmented ring gears are not just components; they are engineered systems designed to overcome the limitations of traditional one-piece large gears. The segmented design allows for easier handling, transportation, and installation, especially for gears with diameters too large for single-piece manufacturing or logistical constraints. Each segment is precision-machined from forged 4140 alloy steel, a material chosen for its excellent strength, toughness, and wear resistance.
- Superior Material Science: 4140 Alloy Steel (AISI/SAE) provides an optimal balance of tensile strength, fatigue resistance, and hardenability, making it ideal for high-stress gear applications.
- Precision Manufacturing: Utilizing CNC gear hobbing, shaping, and grinding, we achieve AGMA or DIN quality levels (e.g., Q10-Q12) to ensure smooth, quiet, and efficient meshing with minimal backlash.
- Enhanced Serviceability: The segmented approach means individual sections can be replaced if damaged, drastically reducing repair costs and downtime compared to replacing an entire monolithic ring gear.
- Customization & Flexibility: We tailor gears to your specific gearbox footprint, offering various tooth profiles (spur, helical), modules, pressure angles, and number of segments based on your design requirements.
- Robust Heat Treatment: Components undergo controlled processes like quenching and tempering or carburizing to achieve desired surface hardness (e.g., 58-62 HRC for tooth flanks) and a tough core.
The table below outlines typical specification ranges for our segmented ring gears. All parameters are customizable to match your gearbox design.
| Parameter | Typical Range / Specification |
| Outer Diameter (OD) | 1000 mm to 5000 mm (Customizable) |
| Face Width | 100 mm to 600 mm |
| Module (Metric) | 10 mm to 40 mm |
| Number of Segments | 2, 3, 4, or more (Design Dependent) |
| Tooth Hardness | Surface: 58-62 HRC; Core: 30-40 HRC (Typical) |
| Mounting | Precision bolt holes or shrink fit interface |
Benefits for Your Operations:
Choosing our segmented ring gear translates into tangible operational advantages. You gain a component that extends gearbox life through superior wear resistance, reduces maintenance complexity, and offers a more cost-effective solution for large-diameter gearing needs. The logistical benefit alone—being able to ship and handle large gears in sections—can solve major installation challenges in confined spaces or remote sites.
Frequently Asked Questions (FAQ):
-
Q: What are the main advantages of a segmented design over a one-piece ring gear?
A: The primary advantages are logistical ease (transportation and handling of large sizes), simplified installation, and significantly lower repair costs. If one segment is damaged, only that section needs replacement, minimizing downtime and expense. -
Q: How do you ensure alignment and precision across the different segments during assembly?
A: Each segment is machined to extremely tight tolerances. We provide precise mating surfaces, alignment dowel pins, and detailed assembly instructions. The gearbox housing itself, along with our precision bolt patterns, ensures the assembled ring forms a perfect, continuous gear. -
Q: Is 4140 Alloy Steel suitable for my high-torque, heavy-shock load application?
A: Yes. 4140 alloy steel is renowned for its high strength and good impact toughness, especially after proper heat treatment. It is a widely trusted material for demanding industrial gear applications involving shock loads. -
Q: Can you produce segments for repairing an existing gearbox, not a full new set?
A: Absolutely. We specialize in reverse-engineering and manufacturing replacement segments. Provide us with drawings, samples, or precise measurements of the existing gear, and we can manufacture matching segments. -
Q: What surface treatments do you recommend to prevent corrosion?
A: Common options include black oxide for general corrosion resistance and a clean appearance, or phosphating for enhanced oil retention and wear-in properties. We can advise based on your operating environment. -
Q: What is your typical lead time for a custom segmented ring gear?
A: Lead time depends on size, complexity, and quantity. For standard configurations, it typically ranges from 8 to 12 weeks. We provide firm timelines upon review of your technical specifications. -
Q: Do you provide installation supervision or technical support?
A: We provide comprehensive assembly drawings, manuals, and are available for remote technical consultation. On-site supervision can be arranged as an additional service. -
Q: How do you handle quality inspection for such large components?
A: We employ a multi-stage inspection process using coordinate measuring machines (CMM), gear analyzers, and hardness testers. Dimensional reports and material certifications are provided with shipment.
Backed by a robust quality management system and years of experience exporting to diverse markets worldwide, Henan San Kuang Machinery Technology stands as a reliable partner for your critical power transmission needs. Our commitment is reflected in our consistent annual export value and our ability to ship efficiently from major Chinese ports like Shanghai and Qingdao. We invite you to leverage our manufacturing scale and engineering expertise. Contact us today with your gearbox specifications to receive a detailed quotation and engineering support for a segmented ring gear solution built for performance and longevity.
